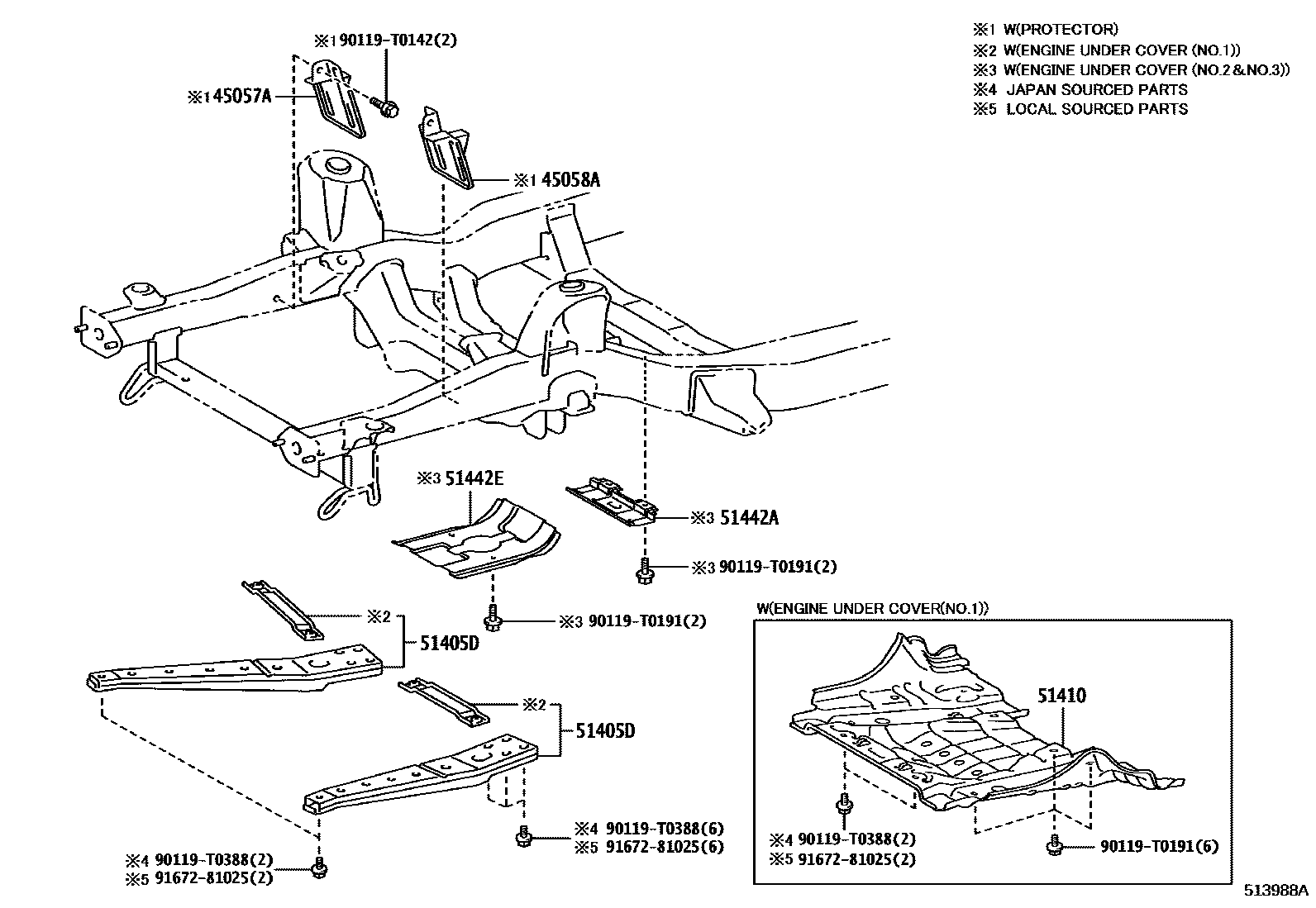

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

45057APROTECTOR SUB-ASSY, RACK BOOT, NO.1 RH

main45057-0K010iGUN122,TGN121..SA202108-202301

45058APROTECTOR SUB-ASSY, RACK BOOT, NO.1 LH

main45058-0K010iGUN120,121,122,TGN121..ARL,GEN,PH,TH202108-202301

51405DBRACE SUB-ASSY, ENGINE UNDER

main51405-KK010iGUN120,121,122,TGN121..ARL,GEN,PH,TH202108-202301

main51405-KK020iGUN122,TGN120,121..GCC202108-202207

main51405-KK030iGUN125,126..MA202108-202303

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-KK010iGUN126..RHD..6F..S..GEN;GUN126..RHD..6FC..H..GEN202108-202207

OCEANIA(EURO 5)

main51410-KK010iGUN126..RHD..H..GEN;GUN125..RHD..6F..(H,L)..GEN202108-202207

BRUNEI SPEC

main51410-KK010iGUN126..RHD..H..GEN;GUN125..RHD..6F..(H,L)..GEN202108-202207

OCEANIA GENERAL (EURO 4 REGULATION)

main51410-KK010iGUN126..RHD..H..GEN;GUN125..RHD..6F..(H,L)..GEN202108-202207

ASEAN GENERAL SPEC

main51410-KK010iGUN126..RHD..H..GEN;GUN125..RHD..6F..(H,L)..GEN202108-202207

OCEANIA GENERAL SPEC

main51410-KK010iGUN126..RHD..H..GEN;GUN125..RHD..6F..(H,L)..GEN202108-202207

NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)

main51410-KK010iGUN126..RHD..H..GEN;GUN125..RHD..6F..(H,L)..GEN202108-202207

CAMBODIA SPEC

main51410-KK010iGUN126..MMR,PKN202108-202301

main51410-KK020iGUN125..6FC..L..GEN202108-202207

ASIA COLD COUNTRY SPEC

main51410-KK020iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

main51441-KK030iGUN122,TGN120,121..GCC202108-202207

51442COVER, ENGINE UNDER, NO.2

main51420-KK010iGUN135..L..GEN;GUN126..LHD..S..GEN;GUN126,135..PH,TH,TWN,VN;GUN125..6F..(IDN,PH,TH,VN);GUN125..6FC..(H,L)..(GEN,IDN)202108-202207

BRUNEI SPEC

main51420-KK010iGUN135..L..GEN;GUN126..LHD..S..GEN;GUN126,135..PH,TH,TWN,VN;GUN125..6F..(IDN,PH,TH,VN);GUN125..6FC..(H,L)..(GEN,IDN)202108-202207

OCEANIA GENERAL (EURO 4 REGULATION)

main51420-KK010iGUN135..L..GEN;GUN126..LHD..S..GEN;GUN126,135..PH,TH,TWN,VN;GUN125..6F..(IDN,PH,TH,VN);GUN125..6FC..(H,L)..(GEN,IDN)202108-202207

ASEAN GENERAL SPEC

main51420-KK010iGUN135..L..GEN;GUN126..LHD..S..GEN;GUN126,135..PH,TH,TWN,VN;GUN125..6F..(IDN,PH,TH,VN);GUN125..6FC..(H,L)..(GEN,IDN)202108-202207

OCEANIA GENERAL SPEC

main51420-KK010iGUN135..L..GEN;GUN126..LHD..S..GEN;GUN126,135..PH,TH,TWN,VN;GUN125..6F..(IDN,PH,TH,VN);GUN125..6FC..(H,L)..(GEN,IDN)202108-202207

NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)

main51420-KK010iGUN135..L..GEN;GUN126..LHD..S..GEN;GUN126,135..PH,TH,TWN,VN;GUN125..6F..(IDN,PH,TH,VN);GUN125..6FC..(H,L)..(GEN,IDN)202108-202207

CAMBODIA SPEC

main51420-KK010iGUN135..L..GEN;GUN126..LHD..S..GEN;GUN126,135..PH,TH,TWN,VN;GUN125..6F..(IDN,PH,TH,VN);GUN125..6FC..(H,L)..(GEN,IDN)202108-202207

OCEANIA(EURO 5)

main51420-KK010iGUN125,126..MA202108-202301

main51420-KK020iGUN125..6FC..L..GEN202108-202207

ASIA COLD COUNTRY SPEC

main51420-KK020iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51442-0K030iGUN122,TGN120,121..GCC202108-202207

51442ECOVER, ENGINE UNDER, NO.2

main51441-0K020iGUN122,TGN120,121..GCC202108-202207

90119T0142

main90119-T0142

90119T0191

main90119-T0191

90119T0388

main90119-T0388

9167281025

main91672-81025

11 parts on this diagram · 2 diagrams in section
