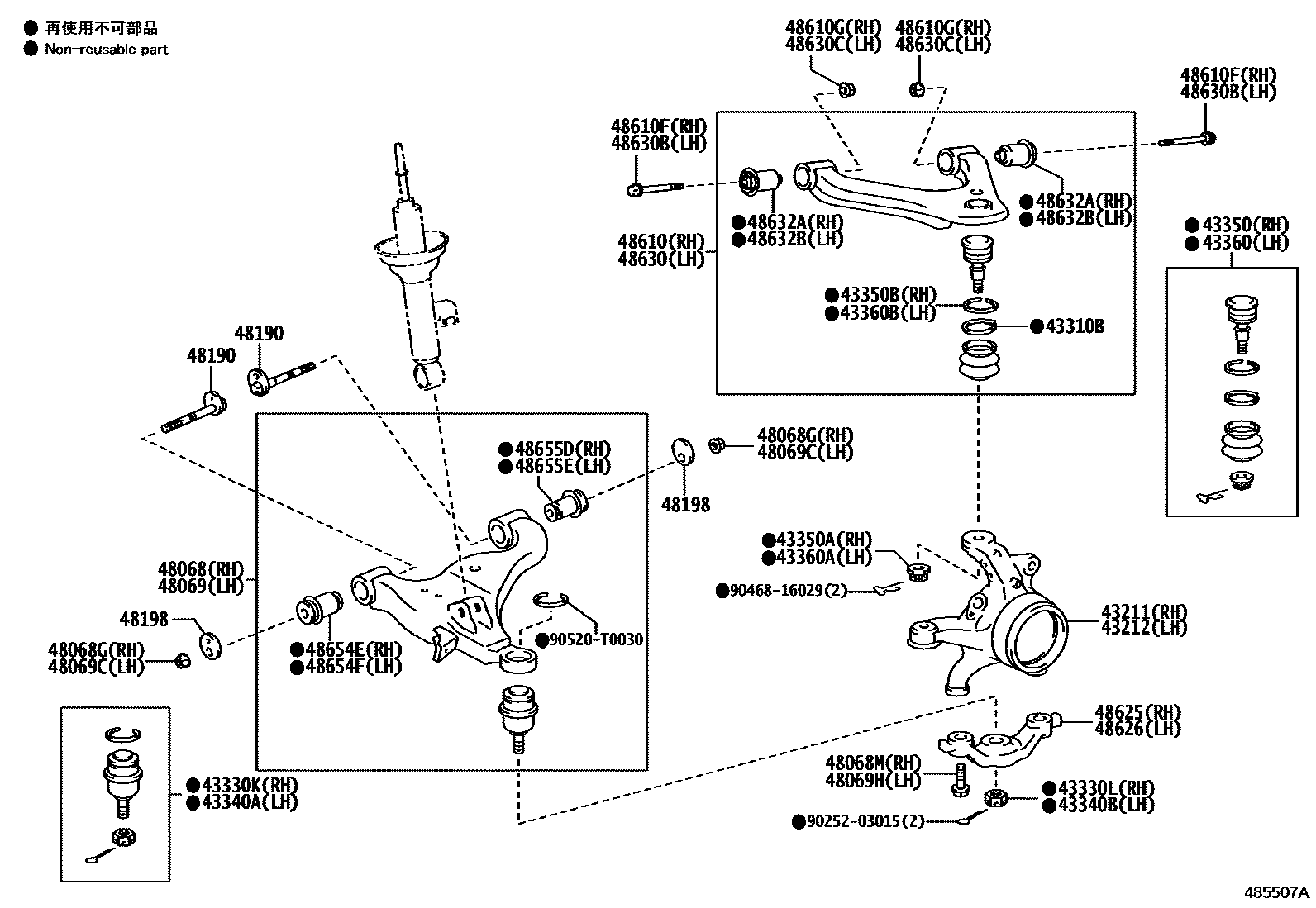

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-KK010iGUN126..IND202108-202303

main43211-KK030iGUN122,TGN121..SA202108-202301

43212KNUCKLE, STEERING, LH

main43212-KK010iGUN125,126..MA202108-202303

main43212-KK030iGUN122,TGN121..SA202108-202301

43310BRING, SET (FOR DUST COVER)

main90580-10001iGUN126..PKN202108-202303

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09500iGUN126..IND202203-202209

main43330-09510iGUN125,126..MA202108-202303

main43330-09A20iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iGUN126..PKN202108-202303

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09500iGUN126..IND202203-202209

main43330-09510iGUN125,126..MA202108-202303

main43330-09A20iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09017iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA202108-202303

main43310-09030iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main43310-09040iGUN126..IND202203-202209

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iGUN125,126..MA202108-202303

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09017iGUN126..PKN202108-202303

main43310-09030iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main43310-09040iGUN126..IND202203-202209

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iGUN126..IND202108-202303

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K010iGUN120,121,122,TGN120,121..THP202108-202301

main48068-0K090iGUN125,126..MA202108-202303

main48068-0K112iGUN126..IND202203-202209

main48068-0K121iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0073iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-T0305iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K010iGUN122,TGN121..SA202108-202301

main48069-0K090iGUN125,126..MA202108-202303

main48069-0K112iGUN126..IND202203-202209

main48069-0K121iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0073iGUN125,126..MA202108-202303

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-T0305iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

48190CAM ASSY, CAMBER ADJUST

main48190-0K020iGUN122,TGN121..SA202108-202301

main48190-0K040iGGN125,GUN125,126,13#,TGN126,136..THP202108-202303

48198CAM, CAMBER ADJUST, NO.2

main48198-0K020iGUN120,121,122,TGN120,121..THP202108-202301

main48198-0K030iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,MMR,SA202108-202303

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K010iGUN122,TGN121..SA202108-202301

main48610-0K040iGGN125,GUN125,126,13#,TGN126,136..THP..(ARL,GCC,GEN,IDN,LA,PH,TWN,VN)202108-202207

GR SPORT

main48610-0K040iGUN125,126..MA202108-202303

main48610-0K051iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main48610-0K070iGUN125,126,135..TH202108-202207

main48610-0K090iGUN126..IND202203-202209

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-T0114iGGN125,GUN125,126,13#,TGN126,136..THP202108-202303

main90119-T0348iGUN122,TGN121..SA202108-202301

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0027iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,MMR,SA202108-202303

main90178-T0047iGUN120,121,122,TGN120,121..THP202108-202301

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-0K011iGUN120,121,122,TGN120,121..THP202108-202207

sub48625-0K050

main48625-0K030iGUN122,TGN121..SA202109-202301

main48625-KK010iGUN125,126..MA202108-202303

sub48625-KK040

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-0K011iGUN120,121,122,TGN120,121..THP202108-202207

sub48626-0K050

main48626-0K030iGUN122,TGN121..SA202109-202301

main48626-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

sub48626-KK040

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K010iGUN122,TGN121..SA202108-202301

main48630-0K040iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,MMR,SA202108-202303

main48630-0K040iGGN125,GUN125,126,13#,TGN126,136..THP..(ARL,GCC,GEN,IDN,LA,PH,TWN,VN)202108-202207

GR SPORT

main48630-0K051iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

main48630-0K070iGUN125,126,135..TH202108-202207

main48630-0K090iGUN126..IND202203-202209

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-T0114iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,MMR,SA202108-202303

main90119-T0348iGUN120,121,122,TGN120,121..THP202108-202301

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0027iGGN125,GUN125,126,13#,TGN126,136..THP202108-202303

main90178-T0047iGUN120,121,122,TGN120,121..THP202108-202301

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K010iGUN122,TGN121..SA202108-202301

main48632-0K040iGUN126..6FC..TH202108-202207

GR SPORT

main48632-0K040iGUN126..PKN202108-202303

main48632-0K070iGUN125,126,135..TH202108-202207

main48632-0K090iGUN126..IND202203-202209

main48632-0K110iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K010iGUN120,121,122,TGN120,121..THP202108-202301

main48632-0K040iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,MMR,SA202108-202303

main48632-0K040iGGN125,GUN125,126,13#,TGN126,136..THP..(ARL,GCC,GEN,IDN,LA,PH,TWN,VN)202108-202207

GR SPORT

main48632-0K070iGUN125,126,135..TH202108-202207

main48632-0K090iGUN126..IND202203-202209

main48632-0K110iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K010iGUN122,TGN121..SA202108-202301

main48654-0K080iGUN125,126..MA202108-202303

main48654-0K102iGUN126..IND202203-202209

main48654-0K150iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K010iGUN120,121,122,TGN120,121..THP202108-202301

main48654-0K080iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,MMR,SA202108-202303

main48654-0K102iGUN126..IND202203-202209

main48654-0K150iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K010iGUN122,TGN121..SA202108-202301

main48655-0K080iGUN125,126..MA202108-202303

main48655-0K100iGUN126..IND202203-202209

main48655-0K130iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K010iGUN122,TGN121..SA202108-202301

main48655-0K080iGUN125,126..MA202108-202303

main48655-0K100iGUN126..IND202203-202209

main48655-0K130iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

9025203015

main90252-03015

9046816029

main90468-16029

90520T0030

main90520-T0030

38 parts on this diagram · 2 diagrams in section
