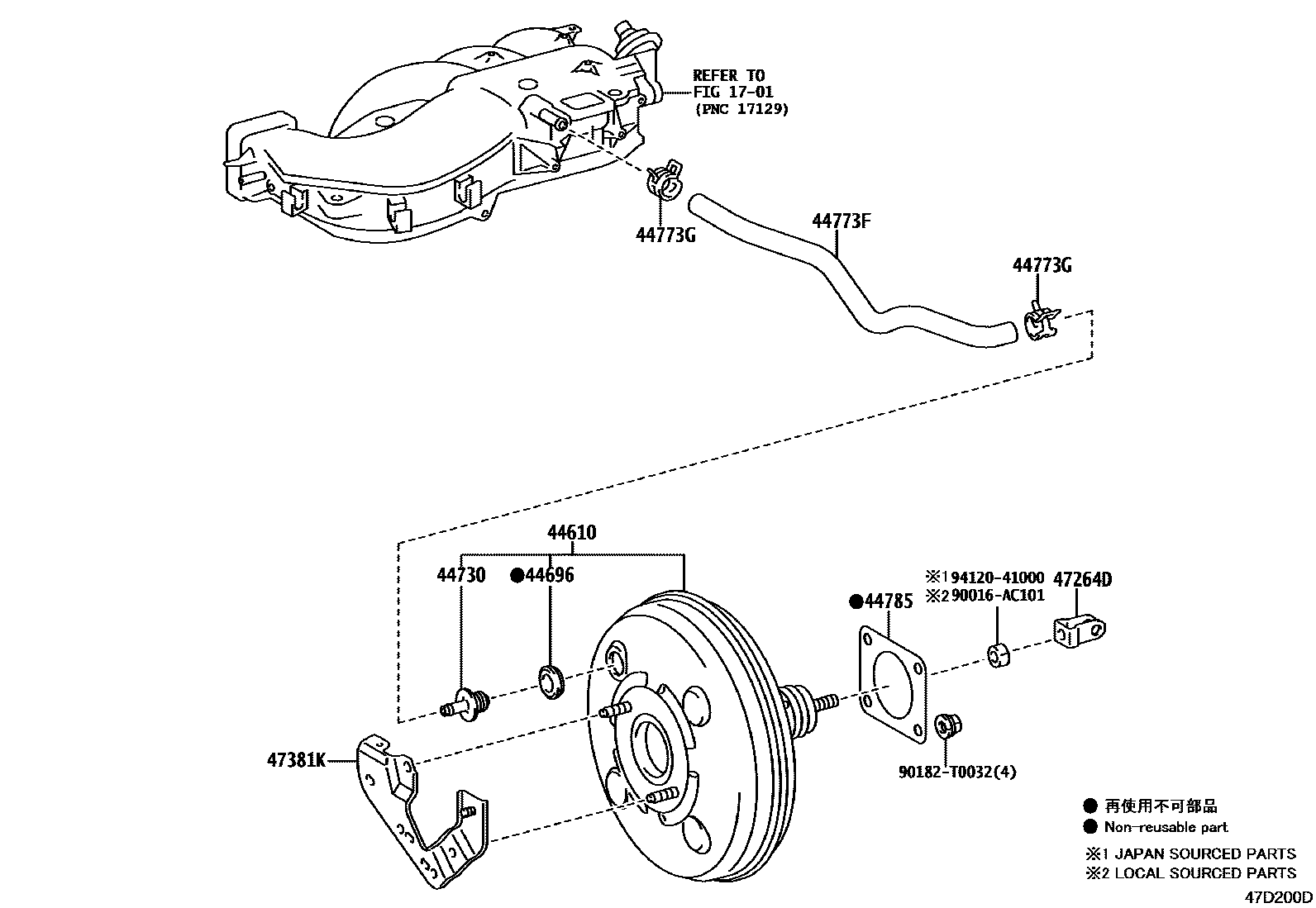

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0K550iGUN126..IND202203-202209

main44610-0K560iTGN126,136..THP;TGN120,121..ARL,GCC202108-202207

CENTRAL AND SOUTH AMERICA SPEC

main44610-0K560iTGN126,136..THP;TGN120,121..ARL,GCC202108-202207

BOLIVIA URUGUAY SPEC

main44610-0K560iTGN126,136..THP;TGN120,121..ARL,GCC202108-202207

BOLIVIA URUGUAY SPEC&VSC-W(*HSAC & *TSC)

main44610-0K560iTGN126,136..THP;TGN120,121..ARL,GCC202108-202207

COLOMBIA SPEC

main44610-0K560iTGN126,136..THP;TGN120,121..ARL,GCC202108-202207

COLOMBIA SPEC&VSC-W(*HSAC & *TSC)

main44610-0K560iTGN126,136..THP;TGN120,121..ARL,GCC202108-202207

VSC-W(*HSAC & *TSC)

main44610-0K560iTGN121..GEN202108-202207

CENTRAL AND SOUTH AMERICA SPEC&VSC-W(*HSAC & *TSC)

main44610-0K560iTGN121..SA;TGN126,136..S..SA202108-202301

main44610-0K570iGGN125..SA202109-202301

main44610-0K580iGUN125,126..MA202108-202303

main44610-0K580iGUN126..RHD..THP..6F;GUN126..RHD..6FC..(ARL,GEN);GUN120,121,122,125,13#..RHD..THP202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main44610-0K600iGUN122,125,126,135,LAN125..LHD..(GHA,MMR,SA)202108-202303

main44610-0K650iTGN121..GEN202108-202207

TIRE & DISC WHEEL-205R16C STEEL

main44610-0K650iTGN126,136..L..SA202108-202301

main44610-0K810iGGN125..GCC202108-202207

main44610-0K880iGUN135..L..TH202108-202207

TOYOTA STOP & START SYSTEM-WITH&VSC-W(*HSAC & *TSC)

main44610-0K880iGUN135..L..TH202108-202207

TOYOTA STOP & START SYSTEM-WITH

main44610-71010iTGN126,128,13#..AGTP202111-202210

main44610-71020iGGN125..AGTP202111-202210

main44610-71030iGUN125,126,13#..AGTP202111-202210

44696GROMMET, CHECK VALVE

main90016-AT003iGUN126..PKN202108-202303

main90480-24439iTGN126,128,13#..AGTP202111-202210

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iTGN121,126,136..SA202108-202303

44773FHOSE, UNION TO CHECK VALVE

main44773-0K020iLAN125202109-202301

main44773-KK020iGGN125..GCC202108-202210

main44773-KK030iGUN126..IND202108-202303

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019iGUN12#,13#..THP202108-202303

NO.1

main90467-16014iGUN122,125,126,13#..GHA,KEN,MMR,SA202108-202303

NO.2

44785GASKET, BRAKE BOOSTER

main44785-17010iGUN126..IND202108-202303

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA202108-202303

main47264-0K080iGUN126..IND202203-202209

main47264-26030iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K060iGUN126..IND202203-202209

main47381-0K071iGUN125,126..MA202108-202303

90016AC101

main90016-AC101

90182T0032

main90182-T0032

9412041000

main94120-41000

12 parts on this diagram · 7 diagrams in section
