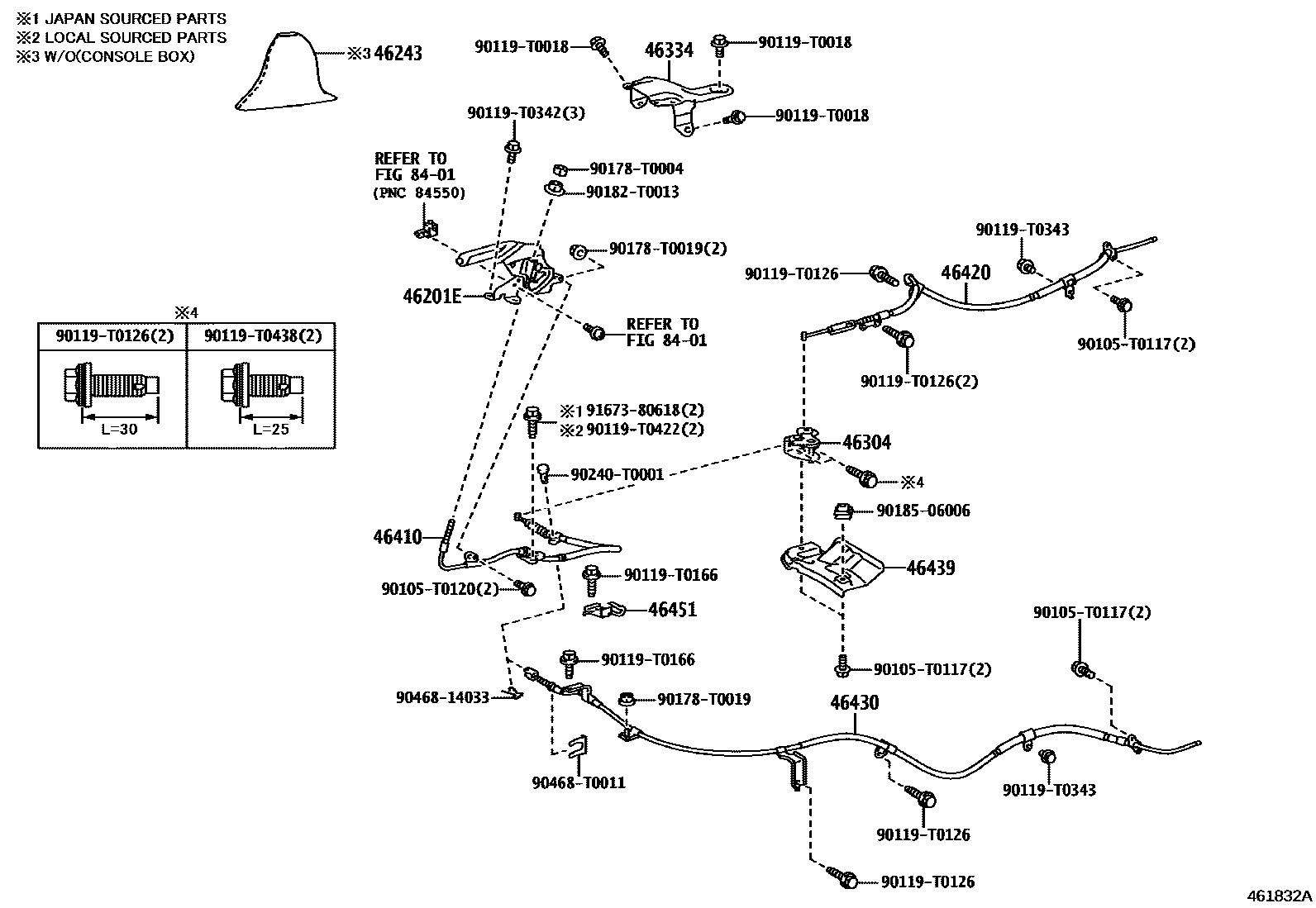

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K140-C0iGUN126..H..IND202203-202209

BLACK,TRIM2#

main46201-0K190-C0iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP..(H,S)202111-202210

BLACK,TRIM2#

main46201-0K200-C4iGUN126..AGTP..6FC..H202111-202210

GR SPORT,BLACK/GR RED,TRIM2#

main46201-0K210-C0iGUN126,136..S..SA202109-202301

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#

main46201-0K210-C0iGGN125,GUN125,126,136..H..(GHA,KEN,SA)202109-202303

BLACK,TRIM2#

main46201-0K230-C0iGUN135..L..TH;GUN126..LHD..THP..S;GUN135..THP..(H,S)..(GEN,LA,PH,TH);GUN120,121,122,125,TGN126..THP..(H,S)..(LA,TH);GUN125,126,136,TGN126..THP..(6F,6FC)..H..(ARL,GE202108-202301

BLACK,TRIM2#

main46201-0K240-C4iGUN126..6FC..H..SA202109-202301

GR SPORT,BLACK/GR RED,TRIM2#

main46201-0K250-C0iGGN125,GUN122,125,126,TGN120,121,126..GCC202108-202301

BLACK,TRIM2#

main46201-0K250-C0iGUN135..THP..L..LA;GUN126..RHD..THP..S;GUN135..(L,S)..(ARL,GEN,VN);GUN122,125,TGN126..THP..L..(LA,TH);GUN120,126,TGN121,136..THP..L..(ARL,GEN,LA,TH);GUN122,125,136,202108-202207

BLACK,TRIM2#,3#

main46201-0K260-C0iGUN125,126,135,TGN126,136..AGTP..L202111-202210

BLACK,TRIM2#

main46201-0K280-C0iGUN122,125,126,13#,LAN125,TGN121,126,136..(L,S)..(GHA,KEN,SA)202109-202303

BLACK,TRIM2#

46243COVER, PARKING BRAKE LEVER

main46243-0K020-C0iGUN125,TGN126..MTM..L..GCC;GUN122,TGN120,121..5F..(L,S)..GCC202108-202207

BLACK,TRIM2#,3#

main46243-0K020-C0iGUN125,TGN126..MTM..L..GCC;GUN122,TGN120,121..5F..(L,S)..GCC202108-202207

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#

main46243-0K020-C0iTGN121..GEN202108-202207

BLACK,TRIM2#

main46243-0K020-C0iGUN122..RHD..GEN202108-202203

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main46243-0K020-C0iGUN122..RHD..GEN202108-202203

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#

main46243-0K030-C0iGUN122..SA;GUN125..L..GHA202109-202303

FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#

main46243-0K030-C0iGUN135..RHD..L..SA;GUN125,LAN125,TGN121,126..L..(KEN,SA)202109-202203

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main46243-0K030-C0iGUN125,135,LAN125,TGN121,126,136..L..(KEN,SA)202109-202303

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202301

main46304-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,SA202109-202303

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGUN126..IND202110-202210

main46334-KK010iGUN126..PKN202108-202303

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K070iGUN126..IND202203-202209

main46410-0K120iGUN125,126..MA202108-202303

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K160iGUN120,121,122,TGN120,121..THP202108-202301

main46420-0K210iGUN125,126,13#,TGN126,128,13#..AGTP202108-202301

main46420-0K220iGUN125,126,13#,LAN125,TGN126,136..GHA,KEN,SA202109-202303

main46420-0K280iGGN125..AGTP202108-202210

main46420-0K290iTGN126..(H,S)..GEN202108-202207

ASIA COLD COUNTRY SPEC

main46420-0K300iGGN125..SA202109-202301

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K120iTGN126..(H,S)..GEN202108-202207

ASIA COLD COUNTRY SPEC

main46430-0K160iGUN122,TGN121..SA202108-202301

main46430-0K210iGUN126..MMR,PKN202108-202301

main46430-0K220iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,SA202109-202303

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

46451BRACKET, CABLE SUPPORT

main46451-0K040iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

27 parts on this diagram · 2 diagrams in section
