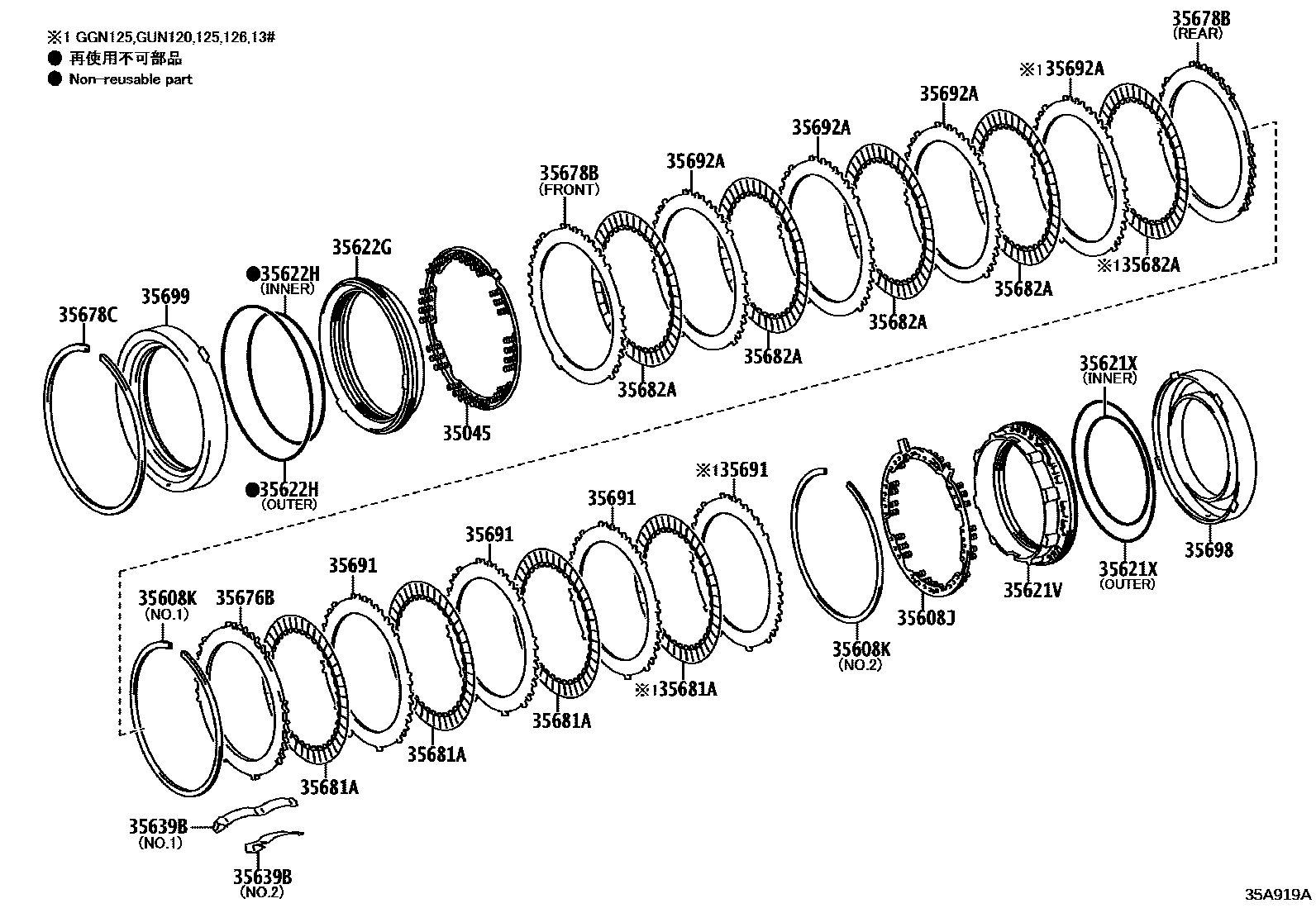

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2

main35045-0K010iGUN126..MMR202108-202210

(L)

main35045-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

35608JSPRING SUB-ASSY, BRAKE PISTON RETURN

main35608-0K010iGUN126..MMR202108-202210

(L)

main35608-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)

main90520-99156iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J),NO.1:REFER ILL.

main90520-99157iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J),NO.2:REFER ILL.

main90520-T0288iGUN126..MMR202108-202210

(L),NO.2:REFER ILL.

main90520-T0290iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L),NO.1:REFER ILL.

35621VPISTON, BRAKE, NO.1

main35621-0K010iGUN126..MMR202108-202210

(L)

main35621-0K020iTGN121,126..THP..6FC202108-202207

(L)

main35621-71010iGGN125,GUN125,126,13#..AGTP..6FC202108-202210

(J)

main35621-71020iTGN126..6FC..SA202109-202301

(J)

35621XRING, O (FOR BRAKE PISTON NO.1)

main90301-99115iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J),OUTER

main90301-99123iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT,(J),INNER

main90301-T0078iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L),INNER

main90301-T0090iGUN125,126..6FC..MA202108-202208

(L),OUTER

35622GPISTON, BRAKE, NO.2

main35622-0K010iGUN125,126..6FC..MA202108-202208

(L)

main35622-0K020iTGN121,126..THP..6FC202108-202207

(L)

main35622-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

main35622-71020iTGN126..6FC..SA202109-202301

(J)

35622HRING, O (FOR BRAKE PISTON NO.2)

main90301-99132iGUN126..6FC..PKN202108-202301

(J),INNER

main90301-99179iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,SA)202108-202303

(J),OUTER

main90301-T0077iGUN126..MMR202108-202210

(L),OUTER

main90301-T0089iGUN125,126..6FC..MA202108-202208

(L),INNER

35639BSPRING, BRAKE PLATE STOPPER

main35639-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

NO.1:REFER ILLUST.

main35639-71020iGUN126..6FC..PKN202108-202301

NO.2:REFER ILLUST.

35676BFLANGE, BRAKE, NO.1

main35676-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

T=4.9

main35676-71020iGUN126..6FC..PKN202108-202301

T=5.0

main35676-71030iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

T=5.1

main35676-71040iGUN126..6FC..PKN202108-202301

T=5.2

main35676-71050iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

T=5.3

main35676-71060iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

T=5.4

main35676-71070iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

T=5.5

main35676-71080iGUN125,126..6FC..MA202108-202208

T=5.6

main35676-71090iGUN126..6FC..PKN202108-202301

T=5.7

main35676-71100iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC202108-202210

T=5.8

35678BFLANGE, BRAKE, NO.2

main35678-71010iGUN126..6FC..PKN202108-202301

T=3.8,REAR

main35678-71020iGUN125,126..6FC..MA202108-202208

T=2.0,FRONT

main35678-71030iGUN125,126..6FC..MA202108-202208

T=2.1,FRONT

main35678-71040iGUN125,126..6FC..MA202108-202208

T=2.2,FRONT

main35678-71050iGUN126..6FC..PKN202108-202301

T=2.3,FRONT

main35678-71060iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

T=2.4,FRONT

main35678-71070iGUN126..6FC..IND202108-202209

T=2.5,FRONT

main35678-71080iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

T=2.6,FRONT

main35678-71090iGUN126..6FC..PKN202108-202301

T=2.7,FRONT

main35678-71100iGUN125,126..6FC..MA202108-202208

T=2.8,FRONT

35678CRING, SNAP (FOR BRAKE NO.2)

main90520-99155iGUN120,135..THP..6FC202108-202206

(J)

main90520-T0291iGUN125,126..6FC..MA202108-202208

(L)

35681ADISC, BRAKE, NO.1

main35681-0K010×3iGGN125,GUN120,121,125,126,13#..THP..6FC202108-202207

(L)

main35681-71010×4iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

35682ADISC, BRAKE, NO.2

main35682-0K010×4iGGN125,GUN120,121,125,126,13#..THP..6FC202108-202207

(L)

main35682-71010×5iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

35691PLATE, BRAKE, NO.1

main35691-0K010×3iGGN125,GUN120,121,125,126,13#..THP..6FC202108-202207

(L)

main35691-71010×4iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

35692APLATE, BRAKE, NO.2

main35692-0K010×3iGGN125,GUN120,121,125,126,13#..THP..6FC202108-202207

(L)

main35692-71010×4iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

35698CYLINDER, BRAKE, NO.1

main35698-71010iGUN126..6FC..IND202108-202209

35699CYLINDER, BRAKE, NO.2

main35699-71010iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC202108-202210

17 parts on this diagram · 1 diagram in section
