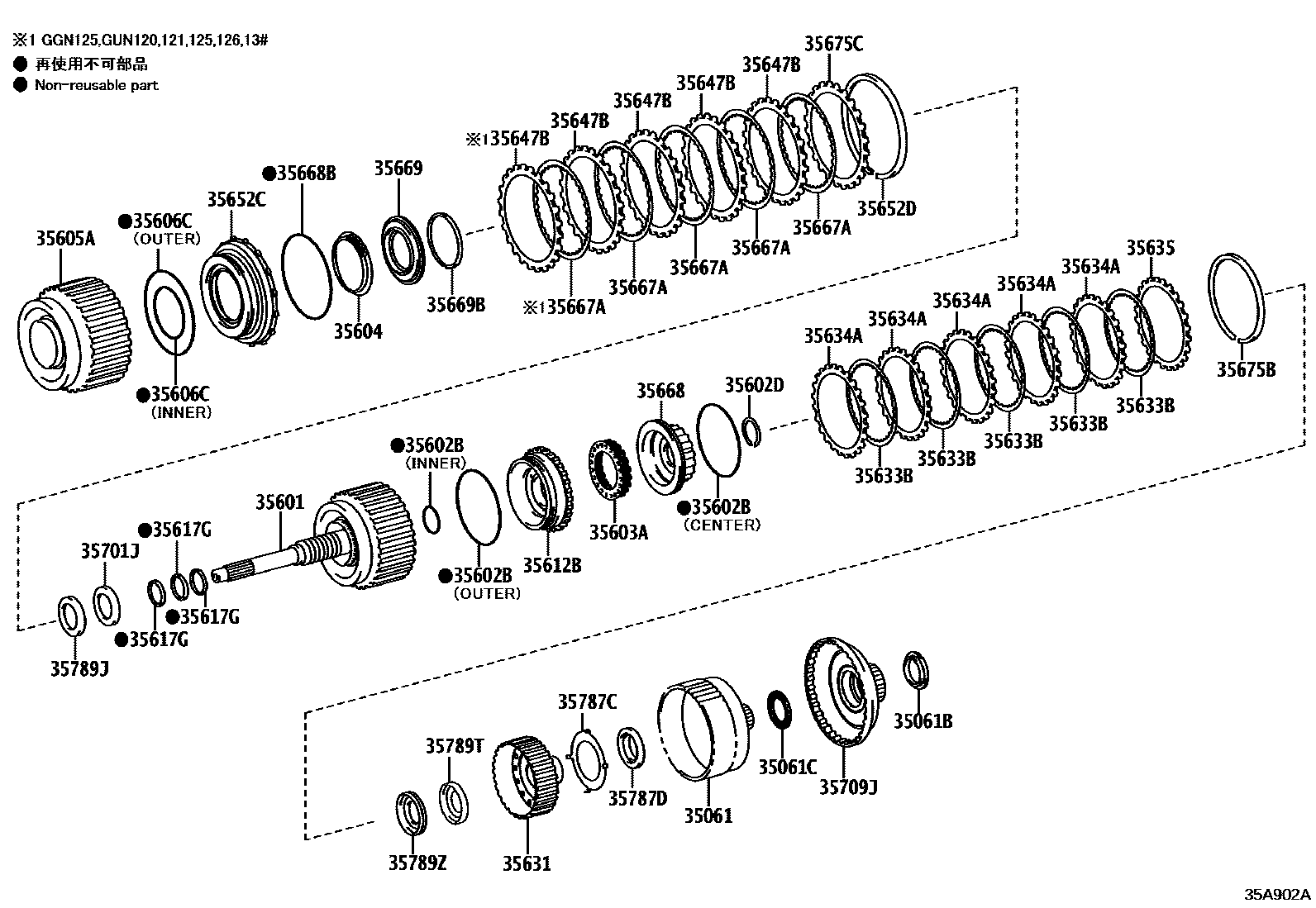

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35061HUB SUB-ASSY, FORWARD CLUTCH

main35061-71010iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

35061BRACE, THRUST BEARING(FOR FORWARD CLUTCH HOB)

main35789-71020iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC202108-202303

35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)

main90374-39008iGUN126..6FC..PKN202108-202303

35601DRUM SUB-ASSY, CLUTCH

main35601-0K010iGGN125,GUN120,125,135..THP..6FC202108-202208

(L)

main35601-0K020iTGN121,126..THP..6FC202108-202207

(L)

main35601-0K030iGUN121,126,136..THP..6FC202108-202210

(L)

main35601-26020iGUN126..6FC..TH202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main35601-26020iGUN121,126,136..THP..6FC202108-202210

(J)

main35601-26020iGUN126..6FC..IND202109-202303

main35601-71030iGGN125,GUN120,125,135..THP..6FC202108-202208

(J)

main35601-71030iGGN125,GUN125,135..6FC..SA202109-202301

main35601-71040iTGN126..6FC..SA202109-202301

main35601-71040iTGN121,126..THP..6FC202108-202207

(J)

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-33017iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC202108-202303

INNER

main90301-33017iGUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202206

(J),INNER

main90301-33017iGUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202206

TOYOTA STOP & START SYSTEM-WITH,INNER

main90301-33017iGUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202206

TOYOTA STOP & START SYSTEM-WITHOUT,(J),INNER

main90301-99096iGUN126..6FC..TH202108-202206

TOYOTA STOP & START SYSTEM-WITH,CENTER

main90301-99096iGUN126..6FC..TH202108-202206

TOYOTA STOP & START SYSTEM-WITHOUT,(J),CENTER

main90301-99096iGUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202206

(J),CENTER

main90301-99096iGUN126..6FC..TH;GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC202108-202303

CENTER

main90301-99145iGUN126..6FC..TH202108-202206

TOYOTA STOP & START SYSTEM-WITHOUT,(J),OUTER

main90301-99145iGUN126..6FC..TH202108-202206

(J),OUTER

main90301-99145iGUN126..6FC..TH202108-202206

TOYOTA STOP & START SYSTEM-WITH,OUTER

main90301-99145iGUN125,126..6FC..MA202108-202303

OUTER

main90301-T0087iGUN125,126..6FC..MA202108-202210

(L),OUTER

main90301-T0088iGUN126..MMR202108-202210

(L),INNER

main90301-T0091iGUN126..MMR202108-202210

(L),CENTER

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-35003iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-0K010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(L)

main35603-60020iGUN126..6FC..TH202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main35603-60020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(J)

main35603-60020iGUN126..6FC..IND202109-202303

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-0K010iGUN126..MMR202108-202210

(L)

main35604-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main35604-71010iGUN125,126..6FC..MA202108-202210

(J)

main35604-71010iGUN126..6FC..IND202109-202303

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-0K010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(L)

main35605-71010iGUN126..6FC..TH202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main35605-71010iGUN126..6FC..PKN202109-202303

main35605-71010iGUN125,126..6FC..MA202108-202210

(J)

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-74004iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC202109-202303

INNER

main90301-74004iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(J),INNER

main90301-74004iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT,INNER

main90301-99205iGUN126..6FC..TH202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT,OUTER

main90301-99205iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202109-202303

OUTER

main90301-99205iGUN126..MMR202108-202210

(J),OUTER

main90301-T0092iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(L),INNER

main90301-T0093iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(L),OUTER

35612BPISTON, FORWARD CLUTCH

main35612-0K010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(L)

main35612-71010iGUN126..6FC..PKN202109-202303

main35612-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(J)

main35612-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

35617GRING, CLUTCH DRUM OIL SEAL

main35617-71010iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-0K010iGUN125,126..6FC..MA202108-202210

(L)

main35631-71010iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC202109-202303

main35631-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(J)

main35631-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202303

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202303

T=3.0

35635FLANGE, FORWARD CLUTCH

main35635-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202303

T=3.0

main35635-71020iGUN125,126..6FC..MA202108-202303

T=3.1

main35635-71030iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

T=3.2

main35635-71040iGUN126..6FC..IND202108-202303

T=3.3

main35635-71050iGUN125,126..6FC..MA202108-202303

T=3.4

main35635-71060iGUN126..6FC..PKN202108-202303

T=3.5

main35635-71070iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

T=3.6

main35635-71080iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202303

T=3.7

main35635-71090iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202303

T=3.8

main35635-71100iGUN125,126..6FC..MA202108-202303

T=3.9

main35635-71110iGUN126..6FC..PKN202108-202303

T=4.0

main35635-71120iGUN126..6FC..PKN202108-202303

T=4.1

main35635-71130iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

T=4.2

35647BPLATE, CLUTCH, NO.2

main35647-71010iGGN125,GUN125,126,13#..AGTP..6FC202108-202303

35652CPISTON, DIRECT CLUTCH

main35652-0K010iGUN126..MMR202108-202210

(L)

main35652-0K020iTGN121,126..THP..6FC202108-202207

(L)

main35652-71010iGUN126..6FC..TH202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main35652-71010iGUN125,126..6FC..MA202108-202210

(J)

main35652-71010iGUN126..6FC..IND202109-202303

main35652-71020iTGN126..6FC..SA202109-202301

main35652-71020iTGN121,126..THP..6FC202108-202207

(J)

35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)

main90520-99159iGUN126..6FC..TH202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main90520-99159iGUN125,126..6FC..MA202108-202210

(J)

main90520-99159iGUN126..6FC..IND202109-202303

main90520-T0289iGUN125,126..6FC..MA202108-202210

(L)

35667ADISK, DIRECT CLUTCH

main35667-71010iTGN121,126..THP..6FC202108-202303

35668BALANCER, CLUTCH, NO.1

main35668-0K010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(L)

main35668-71010iGUN126..6FC..IND202109-202303

main35668-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(J)

main35668-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

35668BRING, O(FOR CLUTCH BALANCER)

main90301-99204iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(J)

main90301-99204iGUN126..6FC..IND202109-202303

main90301-99204iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main90301-T0094iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(L)

35669BALANCER, CLUTCH, NO.2

main35669-0K010iGUN126..MMR202108-202210

(L)

main35669-71010iGUN126..6FC..TH202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main35669-71010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(J)

main35669-71010iGUN126..6FC..IND202109-202303

35669BRING, SNAP (FOR CLUTCH BALANCER)

main90520-68006iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main90520-68006iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(J)

main90520-68006iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC202109-202303

main90520-T0287iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202210

(L)

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99158iGUN125,126..6FC..MA202108-202210

(J)

main90520-99158iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main90520-99158iGUN126..6FC..IND202109-202303

main90520-T0286iGUN125,126..6FC..MA202108-202210

(L)

35675CFLANGE, DIRECT CLUTCH

main35675-71010iGUN126..6FC..IND202108-202303

T=3.0

main35675-71020iGUN125,126..6FC..MA202108-202303

T=3.1

main35675-71030iGUN126..6FC..IND202108-202303

T=3.2

main35675-71040iGUN125,126..6FC..MA202108-202303

T=3.3

main35675-71050iGUN125,126..6FC..MA202108-202303

T=3.4

main35675-71060iGUN126..6FC..IND202108-202303

T=3.5

main35675-71070iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202303

T=3.6

35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

main90374-34015iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202303

35709JDRUM SUB-ASSY, SUN GEAR INPUT

main35709-71010iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

35787CRACE, THRUST BEARING, NO.2

main35787-60010iGUN125,126..6FC..MA202108-202303

35787DBEARING, THRUST NEEDLE ROLLER

main90374-38005iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202303

35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)

main35789-71010iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

35789TRACE, THRUST BEARING (INPUT SHAFT REAR)

main35789-50050iGUN125,126..6FC..MA202108-202303

35789ZBEARING, THRUST NEEDLE ROLLER

main90374-21004iGUN125..6FC..MA202108-202301

main90374-21014iGUN126..6FC..IND202108-202303

33 parts on this diagram · 1 diagram in section
