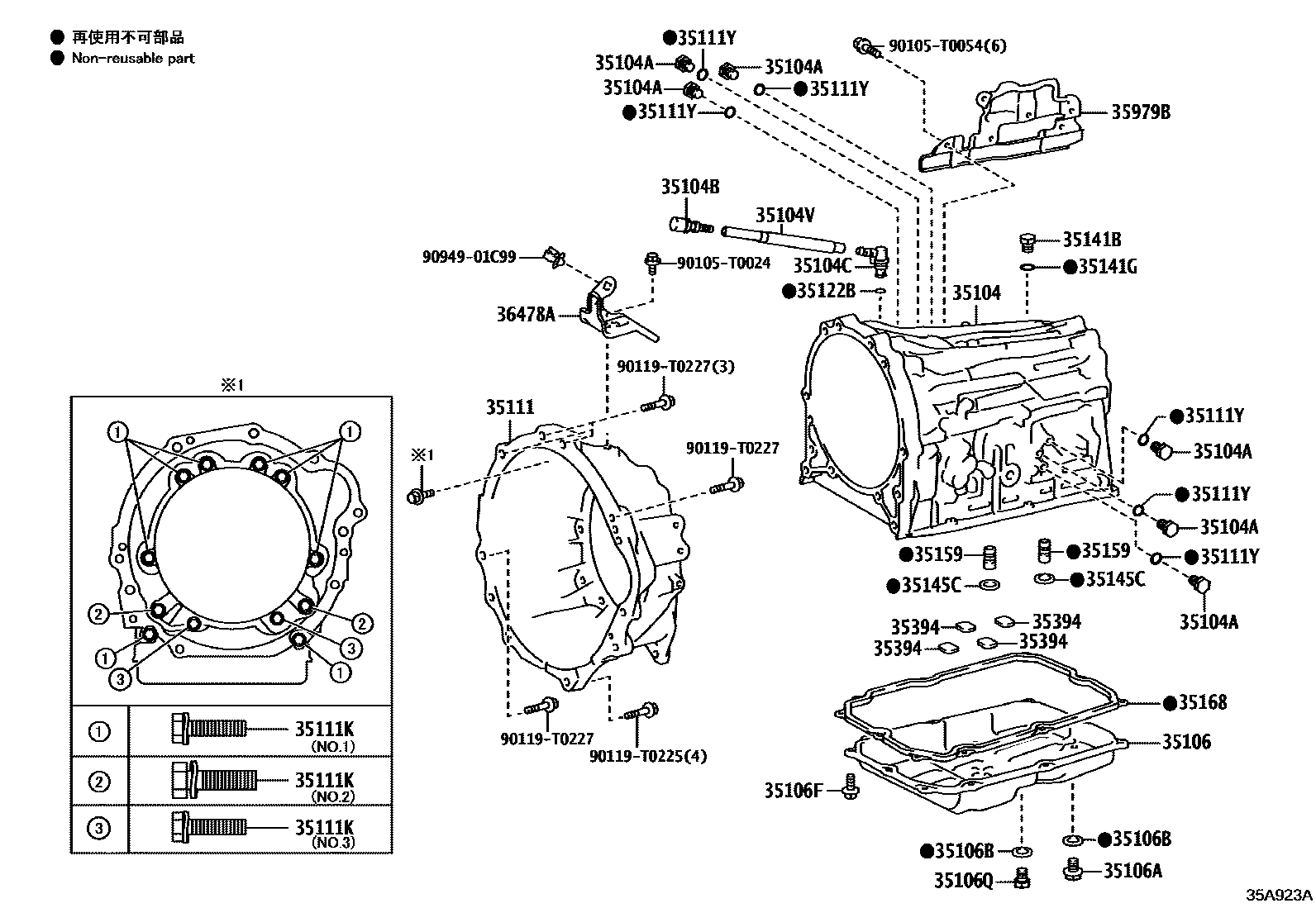

TRANSMISSION CASE & OIL PAN (ATM)

0001 1AC60F 0002 1AC60E,AC60F 0003 1AC60E,AC60F

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0K010iGUN135..6FC..TH;GUN125,126..6FC..(H,S)..GCC202108-202207

TOYOTA STOP & START SYSTEM-WITH

main35104-71020supersedes 35104-0K010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×6iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03211iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main90930-T3004iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L)

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03220iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main90930-T3006iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L)

35104VHOSE (FOR BREATHER PLUG)

main90447-11078iTGN121,126..THP..6FC202108-202207

main90447-11079iGGN125..AGTP202108-202210

main90447-11080iGUN126..6FC..IND202108-202209

main90447-11081iGUN13#..AGTP..6FC202108-202210

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0K010iGUN125,126..6FC..MA202108-202208

(L)

main35106-71050supersedes 35106-0K010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202206

TOYOTA STOP & START SYSTEM-WITH

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06A02×10iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0K010iGUN126..MMR202108-202210

(L)

main35111-0K020iTGN121,126..THP..6FC202108-202207

(L)

main35111-0K030iGGN125..GCC202108-202207

(L)

main35111-71030supersedes 35111-0K010iGUN126..6FC..IND202108-202209

(J)

main35111-71040iTGN126..6FC..SA202109-202301

(J)

main35111-71050iGGN125..SA202109-202301

(J)

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-08C62iGUN125,13#..AGTP..6FC202108-202210

*8-1.25PX30-23.5

main90119-10232×8iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

*10-1.5PX35-30,NO.1:REFER ILLUST.

main90119-10947×2iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC202108-202210

*10-1.50PX35-29.3,NO.3:REFER ILLUST.

main90119-12378×2iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

*12-1.75PX38-30,NO.2:REFER ILLUST.

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×6iGGN125,GUN125,126,13#,TGN128,138..AGTP..6FC202108-202210

(J)

main90301-T0067×6supersedes 90301-T0067iGUN126..MMR202108-202210

(L)

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-08015iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

main90301-T0070supersedes 90301-T0070iGUN135..6FC..TH;GUN125,126..6FC..(H,S)..GCC202108-202207

TOYOTA STOP & START SYSTEM-WITH

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGUN126..6FC..IND202108-202209

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

main90301-T0069supersedes 90301-T0069iGUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC202108-202207

TOYOTA STOP & START SYSTEM-WITH

35145CGASKET, TRANSAXLE CASE

main35145-60020×2iGUN126..6FC..IND202108-202209

35159GASKET, BRAKE DRUM

main35159-0K010×2iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L)

main35159-71010×2iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202108-202207

(J)

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-0K010iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202108-202207

(L)

main35168-71010iGUN120,135..THP..6FC;GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202206-202207

TOYOTA STOP & START SYSTEM-WITHOUT

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iGUN125,126..6FC..MA202108-202208

35979BINSULATOR, TRANSMISSION, RH

main35979-0K010iGGN125,GUN125,126,13#,TGN126..6FC..(GHA,KEN,MMR,SA)202108-202303

main35979-0K020iGUN125,126,13#..AGTP..6FC202111-202210

36478ABRACKET, TRANSMISSION BREATHER

main36478-0K030iGGN125..GCC202108-202207

main36478-0K040iTGN126..6FC..SA202108-202301

main36478-0K060iGUN125,126..6FC..(GHA,KEN,MMR,SA)202108-202303

90105T0024

main90105-T0024

90105T0054

main90105-T0054

90119T0225

main90119-T0225

90119T0227

main90119-T0227

9094901C99

main90949-01C99

27 parts on this diagram · 3 diagrams in section
