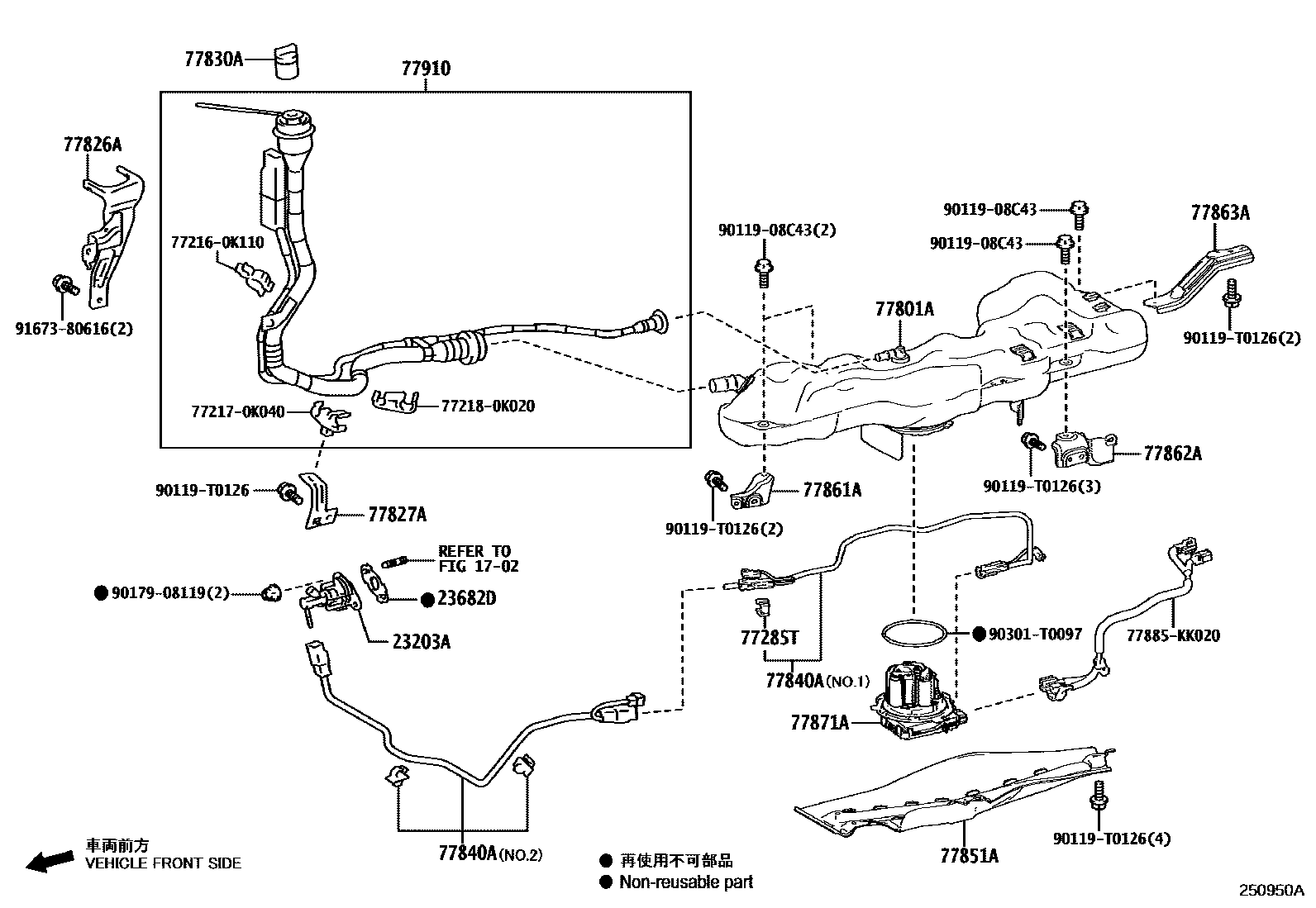

UREA TANK & TUBE

1702

23203AINJECTOR SET, UREA

main23203-11021i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main23203-11021i1GDFTV..GUN126..IND202108-202209

23682DGASKET, NOZZLE HOLDER

main23682-11010i1GDFTV..GUN126..TWN;2GDFTV..GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main23682-11010i1GDFTV..GUN126..IND202108-202209

77285TCLAMP, UREA TUBE, NO.1

main77285-0K140iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main77285-0K140iGUN126..IND202108-202209

77801ATANK SUB-ASSY, UREA

main77801-0K150iGUN126..TWN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main77801-0K150iGUN126..IND202108-202209

main77801-0K160iGUN135..L..GEN202108-202207

77826ASUPPORT, UREA TANK FILLER PIPE, NO.1

main77826-KK010iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main77826-KK010iGUN126..IND202108-202209

77827ASUPPORT, UREA TANK FILLER PIPE, NO.2

main77827-KK010iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main77827-KK010iGUN126..IND202108-202209

77830ACAP ASSY, UREA TANK

main77830-0K030iGUN126..IND202203-202209

main77830-0K050iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

77840ATUBE ASSY, UREA W/HEATER

main77840-0K021iGUN126..IND202108-202209

NO.2

main77840-0K021iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),NO.2

main77841-0K030iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),NO.1

main77841-0K030iGUN125..RHD..6F..L..GEN;GUN126..RHD..6F..H..GEN202108-202209

NO.1

77851APROTECTOR, UREA TANK

main77851-KK050iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main77851-KK050iGUN126..IND202108-202209

77861ABRACKET, UREA TANK, NO.1

main77861-KK030iGUN135..L..GEN202108-202207

77862ABRACKET, UREA TANK, NO.2

main77862-KK030iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main77862-KK030iGUN126..IND202108-202209

77863ABRACKET, UREA TANK, NO.3

main77863-KK050iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main77863-KK050iGUN126..IND202108-202209

77871APUMP, UREA

main77870-0K010iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

sub77870-0K011

main77870-0K010iGUN126..IND202108-202209

sub77870-0K011

77910PIPE ASSY, UREA TANK FILLER

main77910-0K021iGUN126..TWN;GUN135..L..GEN202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

main77910-0K021iGUN126..IND202108-202209

772160K110COVER, FUEL PIPE

main77216-0K110

772170K040CONNECTOR, FUEL TANK INLET PIPE (FOR LPG)

main77217-0K040

772180K020PLATE, FUEL INLET PIPE SET

main77218-0K020

77885KK020HARNESS, UREA TANK

main77885-KK020

9011908C43

main90119-08C43

90119T0126

main90119-T0126

9017908119

main90179-08119

90301T0097

main90301-T0097

9167380616

main91673-80616

24 parts on this diagram · 1 diagram in section
