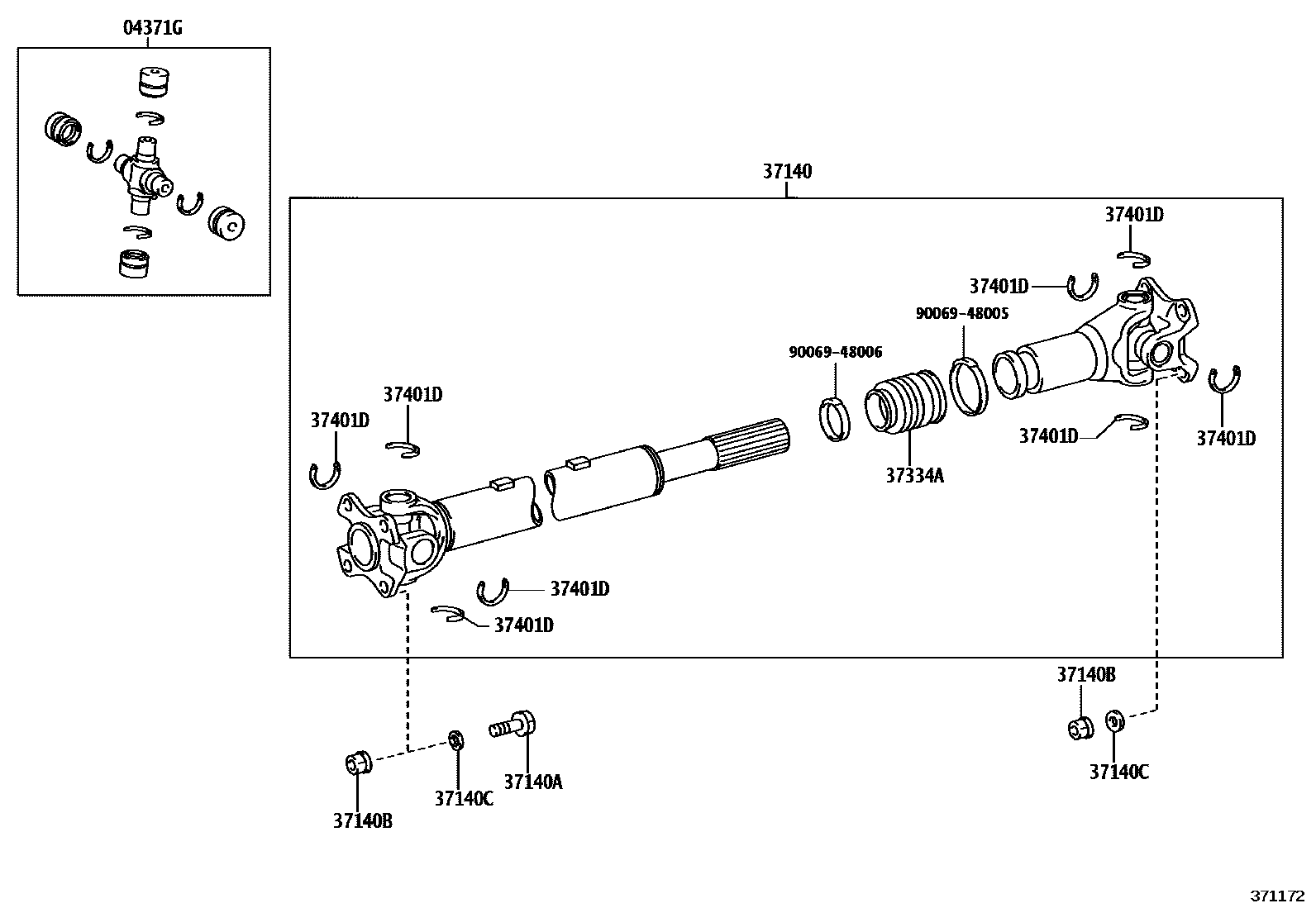

PROPELLER SHAFT & UNIVERSAL JOINT
04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT
37140SHAFT ASSY, PROPELLER, FRONT
37140ABOLT (F0R FRONT PROPELLER SHAFT)
37140BNUT (F0R FRONT PROPELLER SHAFT)
37140CWASHER (F0R FRONT PROPELLER SHAFT)
37334ABOOT, SLIDING SHAFT
37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
T=1.64,BLUE
T=1.59,YELLOW
T=1.54,SILVER
T=1.49,COPPER
T=1.51,BLACK
T=1.44,RED
T=1.38,GREEN
T=1.41
T=1.46
T=1.48
T=1.56
T=1.61
T=1.66
T=1.71
T=2.19,MARK F
T=2.21,MARK G
T=2.23,MARK H
T=2.25,MARK J
T=2.27,MARK K
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,MARK 3
T=2.35,MARK 4
T=2.37,MARK 5
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK N
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
9006948005
9006948006
9 parts on this diagram · 6 diagrams in section
