HORN

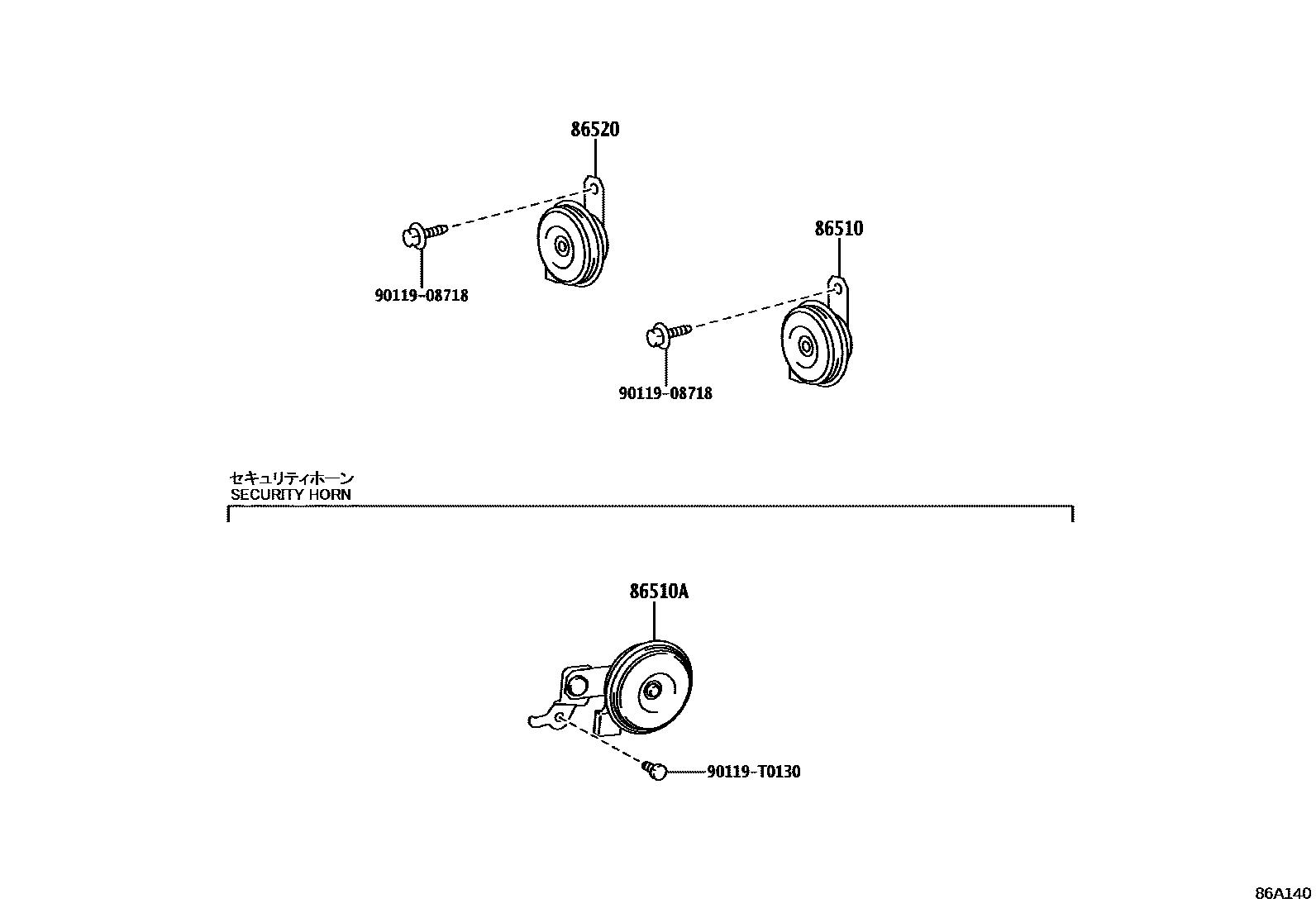

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86500-0K120i202311-202410

W(INMETRO MARK)

main86510-0K010i202308-202407

main86510-0K070i202311-202410

main86510-0K080i202309-202408

main86510-42090i202412

86510AHORN ASSY, SECURITY

main86560-0K020i202308-202407

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

86520HORN ASSY, LOW PITCHED

main86500-0K130i202311-202410

W(INMETRO MARK)

main86520-0K010i202308-202407

main86520-0K050i202311-202410

main86520-0K060i202309-202408

main86520-42130i202412

9011908718

main90119-08718

90119T0130

main90119-T0130

5 parts on this diagram · 1 diagram in section
