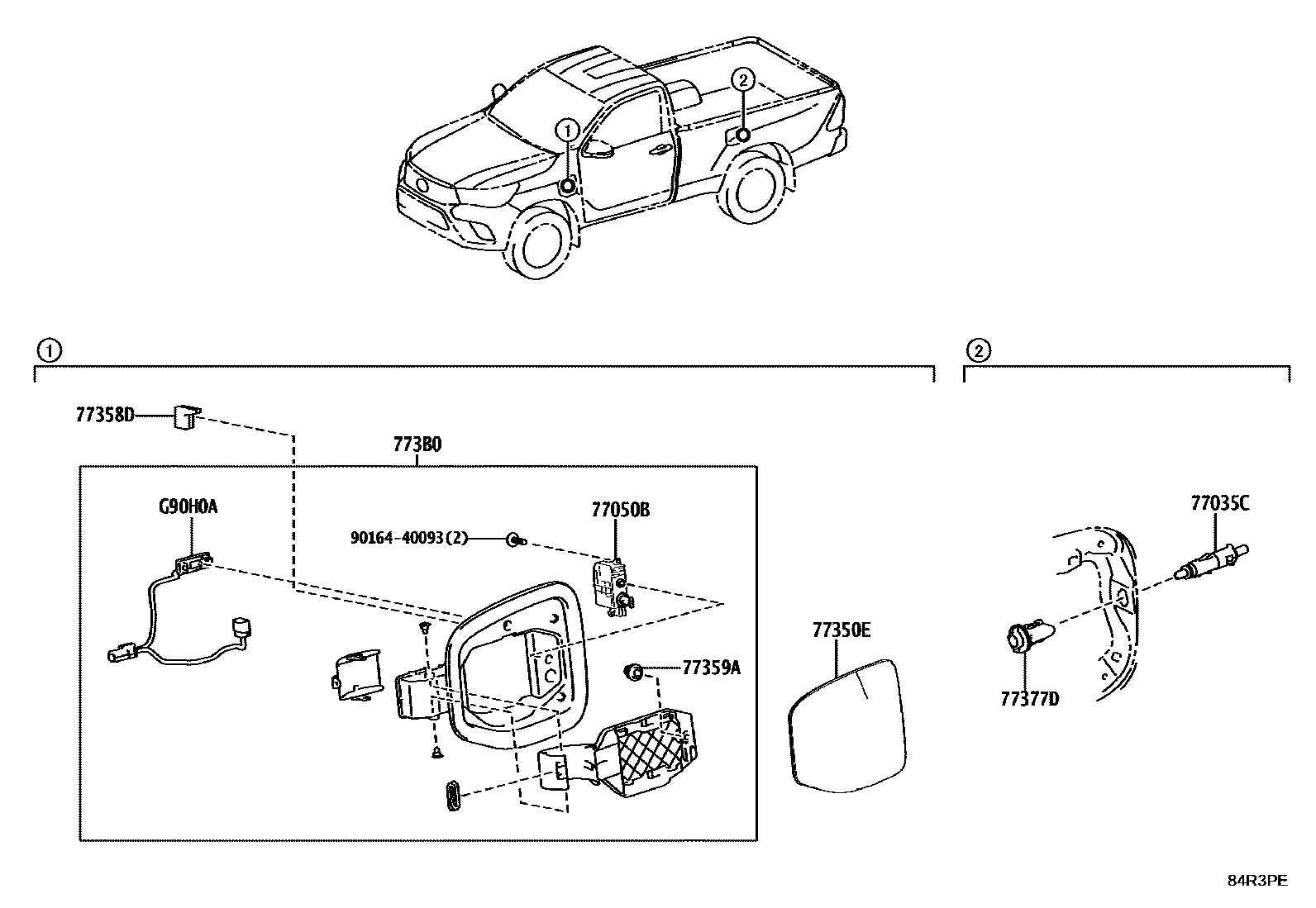

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1

77035CCABLE SUB-ASSY, CHARGE LID LOCK CONTROL

main77035-0K620iXPN135202311-202407

77050BLOCK ASSY, FUEL LID W/O MOTOR

main77050-42020iXPN135202311-202407

77350ELID ASSY, CHARGING PORT OPENING

main77350-0K090iXPN135202311-202407

77358DSTOPPER, DC CHARGING PORT OPENING LID, NO.1

main77358-0K070iXPN135202311-202407

77359ASEAL, FUEL FILLER OPENING LID LOCK

main77359-42010iXPN135202311-202407

77377DRETAINER, CHARGING PORT OPENING LID LOCK

main77377-0D080iXPN135202311-202407

773B0BOX ASSY, CHARGE INLET, LH

main773B0-0K010iXPN135202311-202407

G90H0AINDICATOR ASSY, EV CHARGER LID

mainG90H071010iXPN135202311-202407

9016440093

main90164-40093

9 parts on this diagram · 2 diagrams in section
