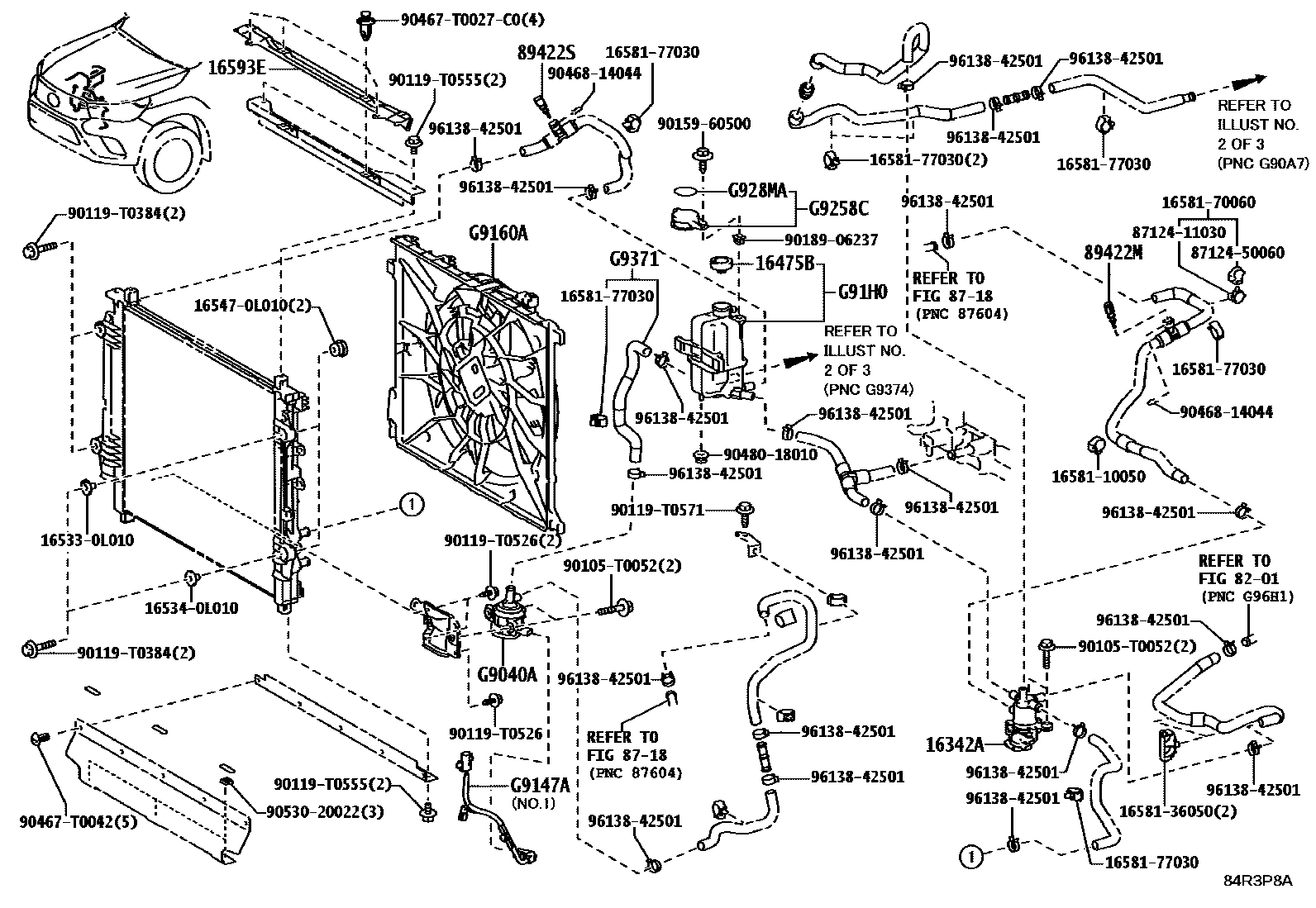

BEV COOLING
16342AVALVE, WATER CONTROL
16475BCAP, RESERVE TANK
16593EGUIDE, RADIATOR AIR, NO.1
8201
8718
89422MSENSOR, WATER TEMPERATURE
89422SSENSOR, WATER TEMPERATURE, NO.2
G9040APUMP ASSY, WATER W/MOTOR
G9147AWIRE, WATER PUMP
NO.1:REFER ILLUST.
G9160AFAN ASSY, INVERTER COOLING W/MOTOR
G91H0TANK ASSY, BATTERY RESERVE
G9258CCAP, BATTERY RESERVE TANK
G928MALABEL, BATTERY COOLANT CAUTION
G9371HOSE, EV WATER BY-PASS, NO.1
165330L010SUPPORT, RADIATOR, UPPER
main16533-0L010
165340L010SUPPORT, RADIATOR, NO.2
main16534-0L010
165470L010BUSH, RADIATOR SUPPORT, NO.1
main16547-0L010
1658110050CLAMP, HOSE(FOR WATER HOSE)
main16581-10050
1658136050CLAMP, HOSE(FOR WATER HOSE)
main16581-36050
1658170060CLAMP, HOSE(FOR WATER HOSE)
main16581-70060
1658177030CLAMP, HOSE(FOR WATER HOSE)
main16581-77030
8712411030CLAMP, HEATER
main87124-11030
8712450060CLAMP, HEATER
main87124-50060
90105T0052
main90105-T0052
90119T0384
main90119-T0384
90119T0526
main90119-T0526
90119T0555
main90119-T0555
90119T0571
main90119-T0571
9015960500
main90159-60500
9018906237
main90189-06237
90467T0027C0
main90467-T0027C0
90467T0042
main90467-T0042
9046814044
main90468-14044
9048018010
main90480-18010
9053020022
main90530-20022
9613842501
main96138-42501
36 parts on this diagram · 3 diagrams in section
