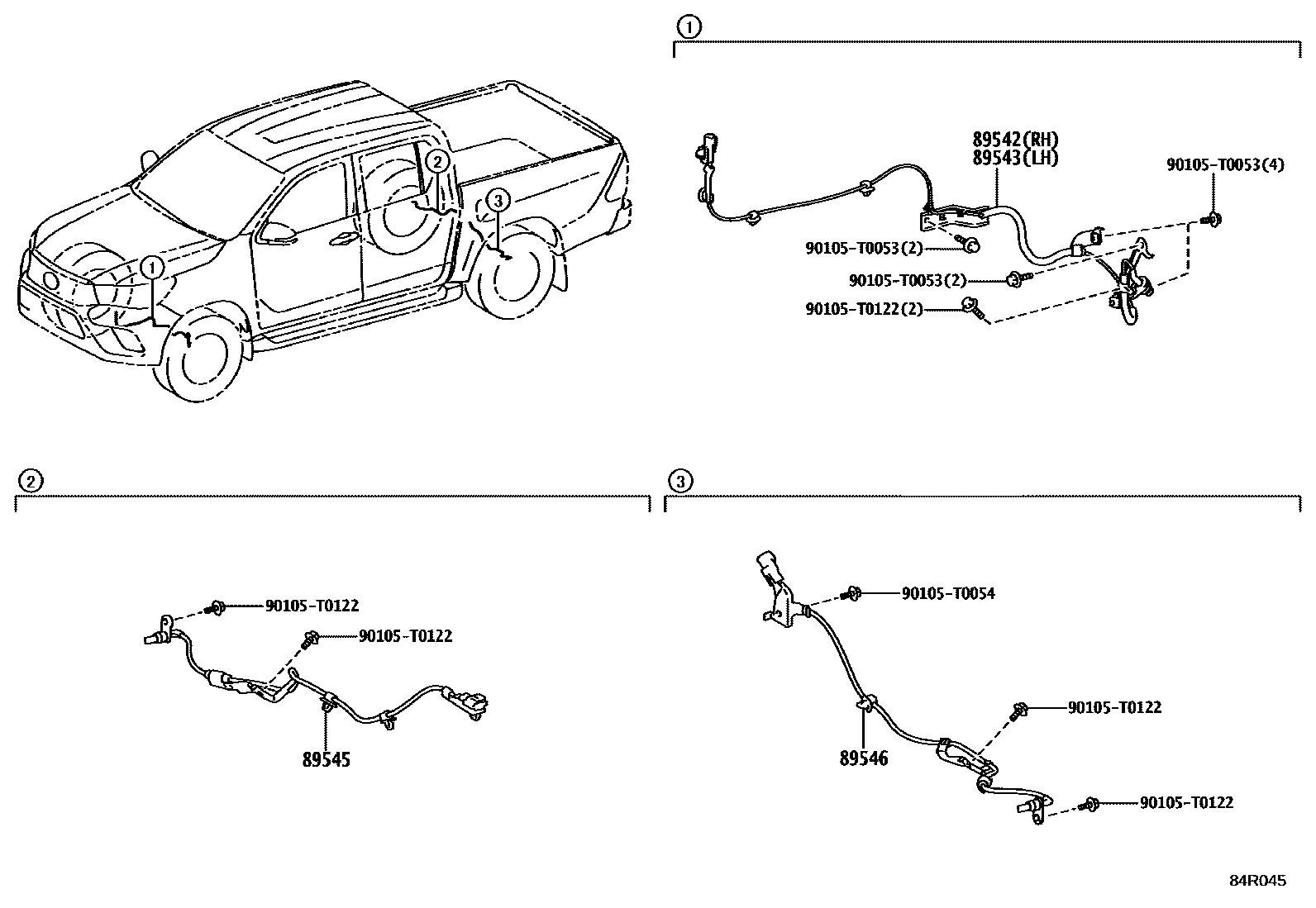

ABS & VSC

0001 1 0002 1 0003 1

89542SENSOR, SPEED, FRONT RH

main89542-0K050iGUN122,TGN121..PKN202308

main89542-0K060iGUN126..PKN202308

main89542-0K080iGUN125..MA202309-202408

main89542-0K100iXPN135202311-202407

89543SENSOR, SPEED, FRONT LH

main89543-0K050iGUN122,TGN121..PKN202308

main89543-0K061iGUN126..PKN202308

main89543-0K081iGUN125..MA202309-202408

main89543-0K100iXPN135202311-202407

89545SENSOR, SPEED, REAR RH

main89545-0K190iXPN135202311-202407

main89545-0K220iGUN11#,120,121,122,TGN11#,120,121..THP202308-202407

main89545-0K240iGUN126..PKN202308

main89545-0K280iGUN122,TGN120,121..SA202402-202410

main89545-0K290iGUN125,126,13#,LAN125,TGN136..SA202309-202410

89546SENSOR, SPEED, REAR LH

main89546-0K190iXPN135202311-202407

main89546-0K220iGUN11#,120,121,122,TGN11#,120,121..THP202308-202407

main89546-0K240iGUN126..PKN202308

main89546-0K280iGUN122,TGN120,121..SA202402-202410

main89546-0K290iGUN125,135..KEN202309-202412

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

7 parts on this diagram · 3 diagrams in section
