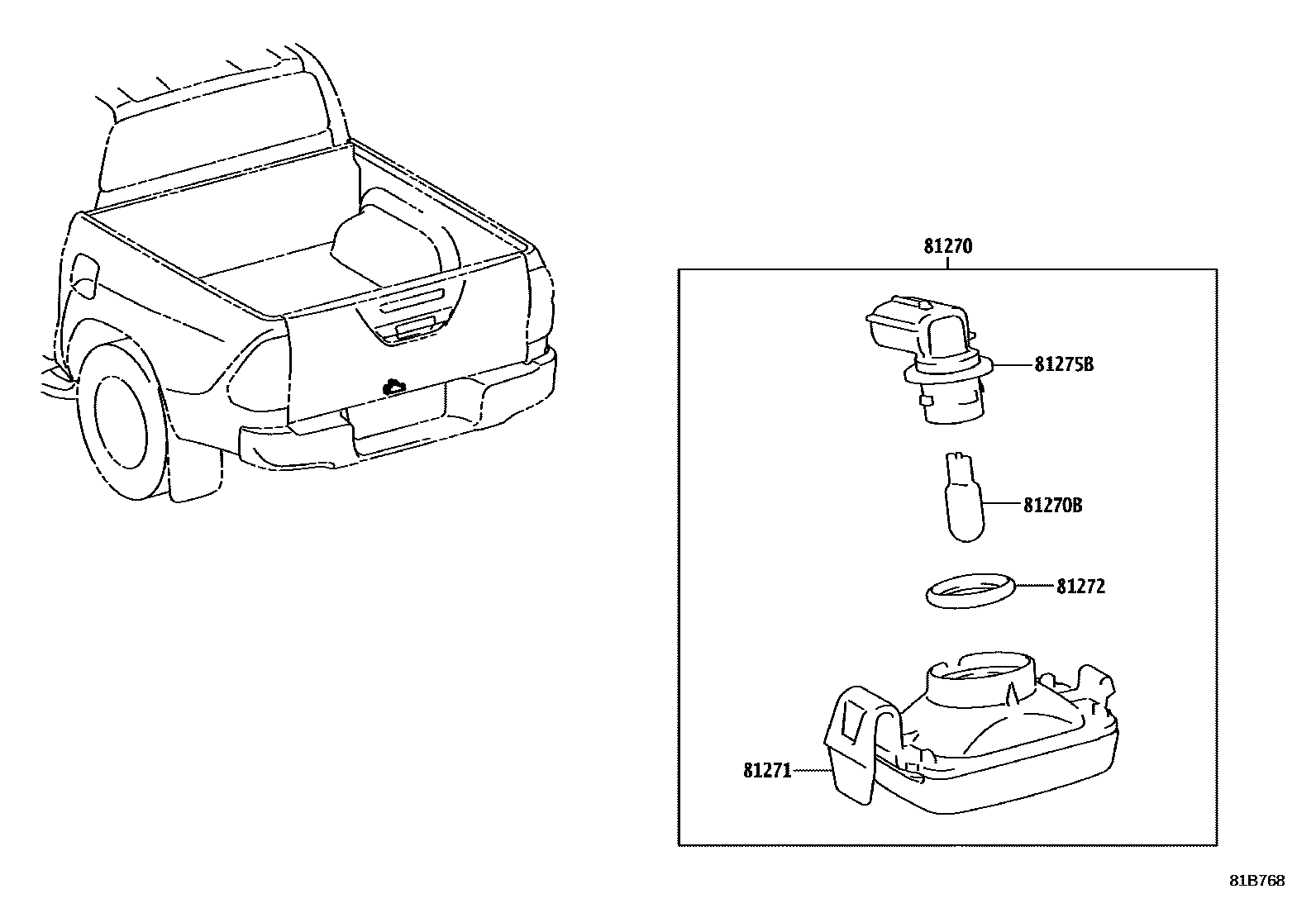

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-0K080iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-TB003iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-0K080iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

81272GASKET, LICENSE PLATE LAMP LENS

main90069-38039iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

81275BSOCKET PLUG, LICENSE PLATE LAMP

main90069-81108iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

5 parts on this diagram · 1 diagram in section
