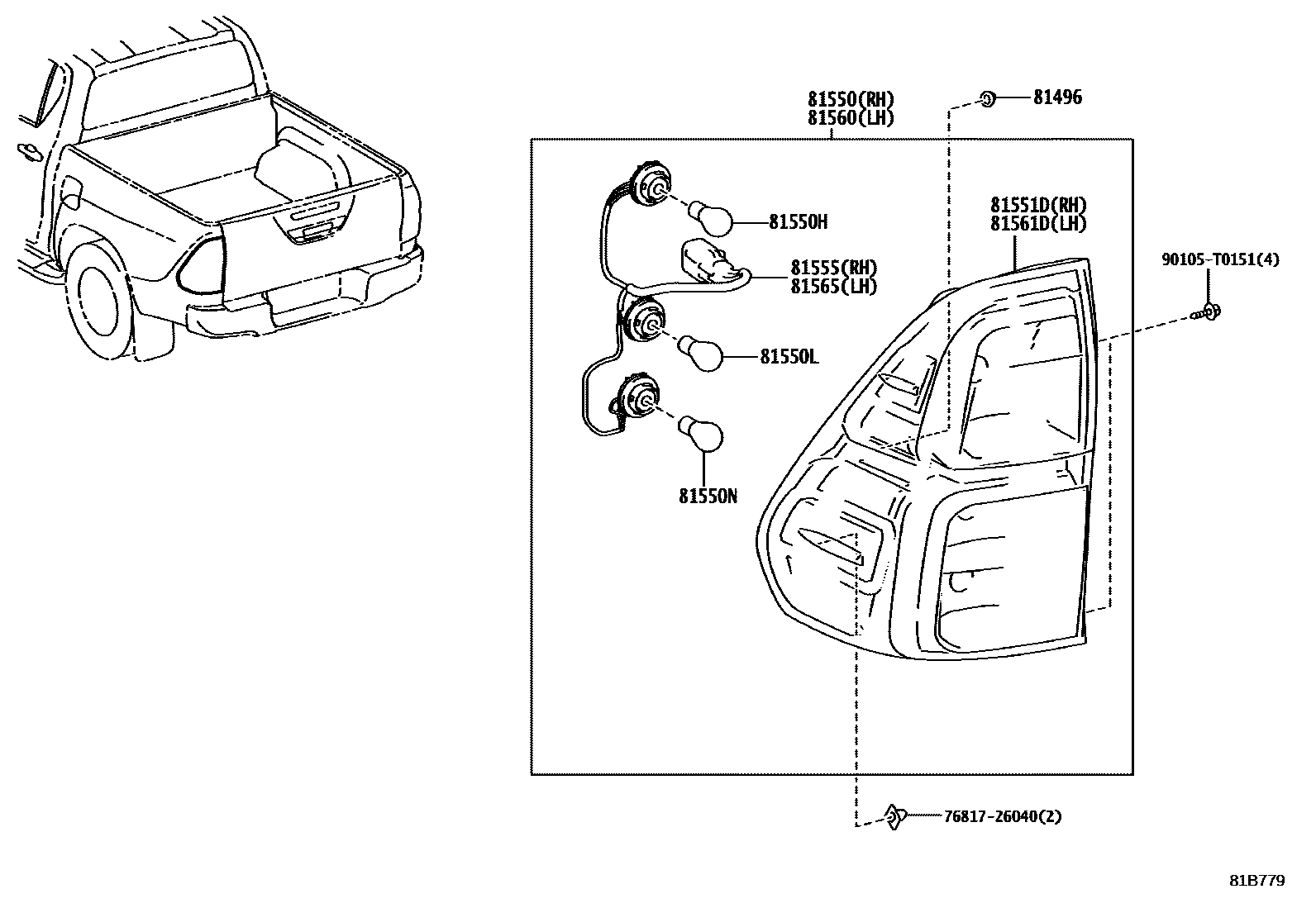

REAR COMBINATION LAMP

0001 1REAR TAIL & STOP LAMP = BULB 0002 1REAR TAIL & STOP LAMP = LED T0003 1W/O(REAR BUMPER)

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040×2iGUN11#,12#,13#,TGN11#,12#,XPN135..THP..CBU202308-202407

(L)

main81496-52020×2iGUN11#,12#,13#,TGN11#,12#,XPN135..THP..CBU202308-202407

(J)

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K261iGUN125,135..THP..(L,S)..(GCC,GEN,IDN,LA);GUN11#,120,121,122,126,TGN11#,12#..THP..(L,S)..CBU202308-202407

main81550-0K271supersedes 81550-0K261iGUN125..MA202309-202408

main81550-0K281iGUN122,125,126,135,LAN125,TGN120,121,136..(L,S)..SA..CBU202402-202410

main81550-0K300iGUN125,126,135,TGN126,136..AGTP..CBU202311-202410

VALEO

main81550-0K360iGUN120,122,125,126,135,TGN121..THP..IV3202308-202407

REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT

main81550-0K660iGUN136..ARL202308-202407

main81550-0K690iGUN120,122..S..TH202308-202407

HEADLAMP- LED(MLM)

main81550-0K700iXPN135202311-202407

main81550-0K730iGUN126,136..H..SA202402-202410

HEADLAMP-LED(MLM)

81550HBULB, TAIL & STOP LAMP

main90981-13094×2iGUN125..MA202308-202408

12V 21/5W

main90981-13096iGUN125,126,135,TGN126,136..AGTP..CBU202311-202410

12V 21/5W,PNC 81560 = VALEO

main90981-TD004×2iGUN122,125,126,135,TGN136..(AGTP,SAP)..IV3202308-202410

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15020iGUN125,126,135,TGN126,136..AGTP..CBU202311-202410

12V 21W,AMBER,PNC 81560 = VALEO

main90981-15028×2iGUN125..MA202308-202408

12V 21W,AMBER

main90981-TD003×2iGUN122..PKN..IV3202308

12V 21W

81550NBULB, BACK UP LAMP

main90981-13093×2iGUN122,126,TGN121..PKN..CBU202308

12V 21W

main90981-13095iGUN125,126,135,TGN126,136..AGTP..CBU202311-202410

12V 21W,PNC 81560 = VALEO

main90981-TD003×2iGUN120,122,125,126,135,TGN121..THP..IV3202308-202407

12V 21W,REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT

81551LENS, REAR COMBINATION LAMP, RH

main81551-0K360iGUN120,122,125,126,135,TGN121..THP..IV3202308-202407

REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K261iGUN125,135..THP..(L,S)..(GCC,GEN,IDN,LA);GUN11#,120,121,122,126,TGN11#,12#..THP..(L,S)..CBU202308-202407

main81551-0K271supersedes 81551-0K261iGUN125..MA202309-202408

main81551-0K281iGUN122,125,126,135,LAN125,TGN120,121,136..(L,S)..SA..CBU202402-202410

main81551-0K300iGUN125,126,135,TGN126,136..AGTP..CBU202311-202410

VALEO

main81551-0K660iGUN136..ARL202308-202407

main81551-0K690iGUN120,122..S..TH202308-202407

HEADLAMP- LED(MLM)

main81551-0K700iXPN135202311-202407

main81551-0K730iGUN126,136..H..SA202402-202410

HEADLAMP-LED(MLM)

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K260iGUN125,126,135,TGN126,136..AGTP..CBU202311-202410

KOITO

main81555-0K270supersedes 81555-0K260iGUN125..MA202309-202408

main81555-0K281iGUN125,135..KEN202402-202412

main81555-0K300iGUN125,126,135..BZAG..CBU202311-202410

VALEO

main81555-0K430iGUN120,122..S..TH202308-202407

HEADLAMP- LED(MLM)

main81555-0K440iXPN135202311-202407

main81555-0K480iGUN126,136..H..SA202402-202410

HEADLAMP-LED(MLM)

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K261iTGN121..(GEN,TH)..CBU;GUN125,135,TGN126..THP..(L,S)..(GEN,IDN,LA);GUN112,120,121,122,126,TGN110..RHD..THP..(L,S)..CBU202308-202407

CENTRAL AND SOUTH AMERICA SPEC

main81560-0K271iGUN125,126,135..BZAG..CBU202311-202410

KOITO

main81560-0K281supersedes 81560-0K291iGUN125,135..KEN202402-202412

main81560-0K300iGUN125,135,TGN126,136..AGTP..LA..CBU202311-202410

VALEO

main81560-0K310iGUN125,126,135..BZAG..CBU202311-202410

VALEO

main81560-0K400iGUN120,122,125,126,135,TGN121..THP..IV3202308-202407

REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT

main81560-0K570iGUN136..ARL202308-202407

main81560-0K690iGUN120,122..S..TH202308-202407

HEADLAMP- LED(MLM)

main81560-0K730iGUN126,136..H..SA202402-202410

HEADLAMP-LED(MLM)

81561LENS, REAR COMBINATION LAMP, LH

main81561-0K400iGUN122,125,126,135,TGN136..(AGTP,SAP)..IV3202308-202410

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K261iGUN122,126,TGN121..PKN..CBU202308

main81561-0K271iGUN125,126,135..BZAG..CBU202311-202410

KOITO

main81561-0K281supersedes 81561-0K291iTGN121..SA202402-202410

NIGERIA SPEC

main81561-0K300iGUN125,135,TGN126,136..AGTP..LA..CBU202311-202410

VALEO

main81561-0K310iGUN125,126,135..BZAG..CBU202311-202410

VALEO

main81561-0K570iGUN136..ARL202308-202407

main81561-0K690iGUN120,122..S..TH202308-202407

HEADLAMP- LED(MLM)

main81561-0K730iGUN126,136..H..SA202402-202410

HEADLAMP-LED(MLM)

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K260iGUN125..MA202308-202408

main81555-0K270iGUN122..LHD..THP..CBU;GUN11#,125,126,TGN11#,12#..GCC..CBU202308-202407

main81555-0K281supersedes 81555-0K291iGUN125,135..KEN202402-202412

main81555-0K300iGUN125,135,TGN126,136..AGTP..LA..CBU202311-202410

VALEO

main81555-0K430iGUN120,122..S..TH202308-202407

HEADLAMP- LED(MLM)

main81555-0K480iGUN126,136..H..SA202402-202410

HEADLAMP-LED(MLM)

main81565-0K310iGUN125,126,135..BZAG..CBU202311-202410

VALEO

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

90105T0151

main90105-T0151

14 parts on this diagram · 3 diagrams in section
