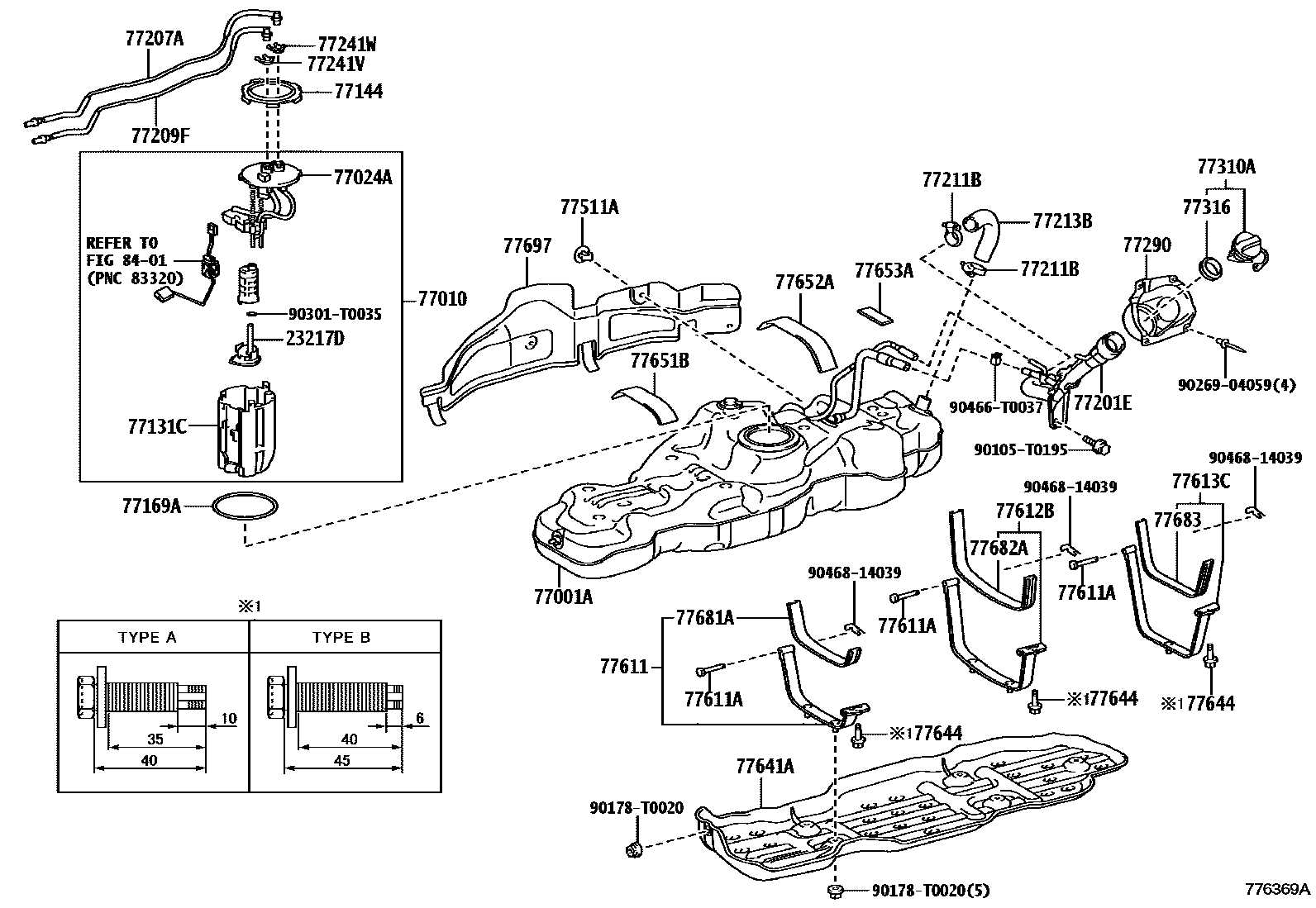

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
77001ATANK SUB-ASSY, FUEL
REAR DECK-FLAT TYPE
77010TUBE ASSY, FUEL TANK VENT
77024APLATE SUB-ASSY, FUEL SUCTION
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT
77207ATUBE SUB-ASSY, FUEL RETURN
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT
77241VCLIP, TUBE JOINT
77241WCLIP, TUBE JOINT
77290SHIELD ASSY, FUEL TANK FILLER PIPE
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT
TIRE & DISC WHEEL-265/65R17 ALUMINUM
main77290-0K080iGUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..(KEN,SA)..CBU202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
REAR DECK-FLAT TYPE
77511ABRACKET, FUEL TANK
77611BAND, FUEL TANK
main77601-KK050iTGN121..GCC;GUN125,126,135..THP;GUN122,136,TGN120,126..THP..(ARL,GCC,LA)202308-202407
77611APIN (FOR FUEL TANK BAND)
main77653-0K041×2iGUN122,125,126,TGN12#..THP;GUN112,120,121,13#,TGN110..THP..(ARL,IDN,LA,TH)202308-202407
77612BBAND, FUEL TANK, NO.2
77613CBAND, FUEL TANK, NO.3
77641APROTECTOR, FUEL TANK, NO.1
main77641-KK010iTGN121..GCC;GUN125,126,135..THP;GUN122,136,TGN120,126..THP..(ARL,GCC,LA)202308-202407
77644BOLT, FUEL TANK
TYPE A:REFER ILLUST.
(J),TYPE B:REF ILL.
(L),TYPE B:REF ILL.
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77681ASEAT, FUEL TANK BAND
77682ASEAT, FUEL TANK BAND, NO.2
77683SEAT, FUEL TANK BAND, NO.3
77697INSULATOR, FUEL TANK HEAT, NO.1
8401
90105T0195
main90105-T0195
90178T0020
main90178-T0020
9026904059
main90269-04059
90301T0035
main90301-T0035
90466T0037
main90466-T0037
9046814039
main90468-14039
38 parts on this diagram · 16 diagrams in section
