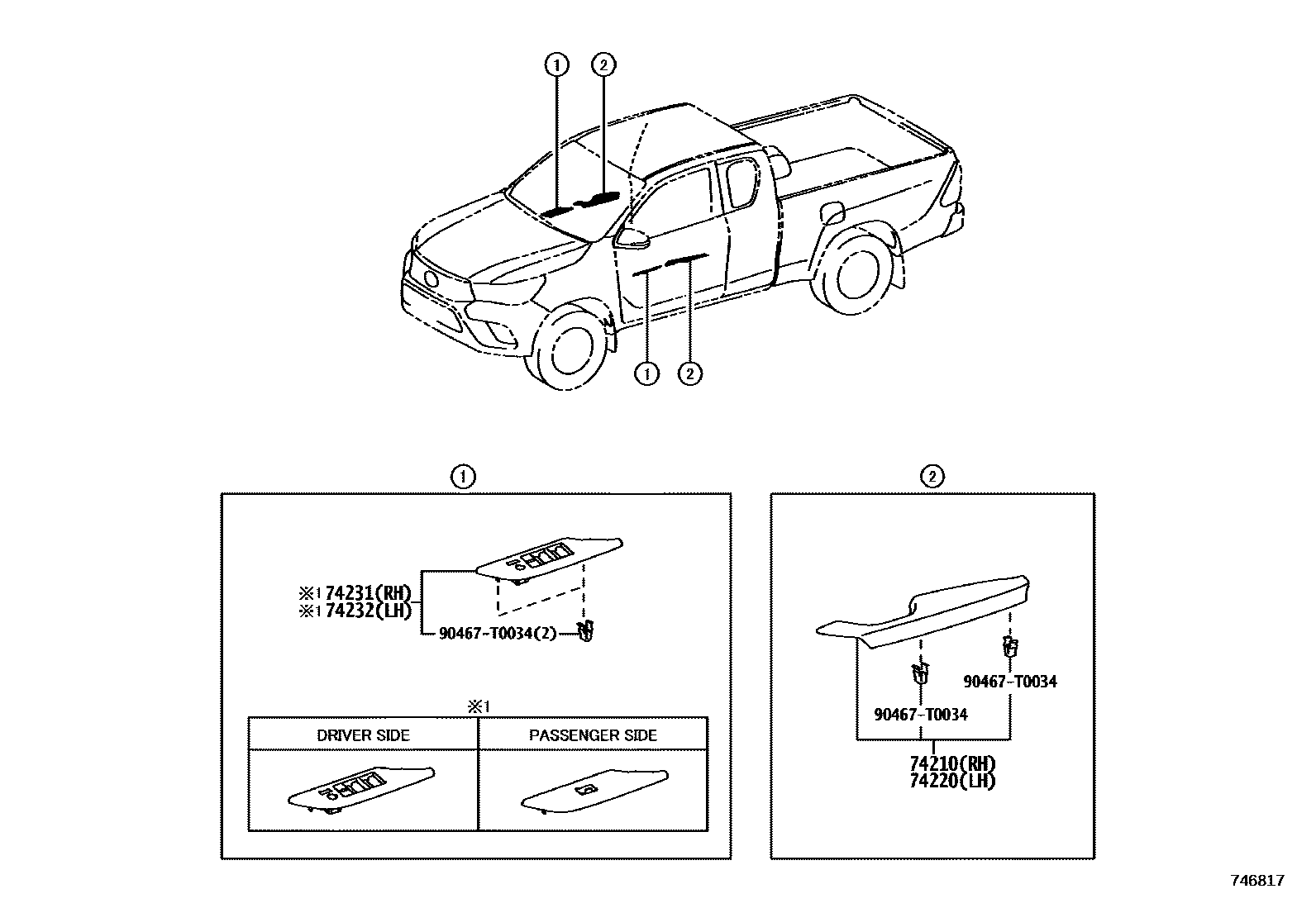

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
main74210-0K010-C0iGUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..L..(GCC,GEN,IDN,LA)202308-202407
BLACK,TRIM2#
main74210-0K010-C0iGUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..L..(GCC,GEN,IDN,LA)202308-202407
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT,BLACK,TRIM2#
RED,TRIM3#
main74210-0K020-C2iGUN125..ARL,TH;GUN126..ARL..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13#,TGN11#,126,XPN135..(L,S)..(ARL,GC202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74210-0K020-C2iGUN125..ARL,TH;GUN126..ARL..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13#,TGN11#,126,XPN135..(L,S)..(ARL,GC202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
MAROON,TRIM3#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&DOOR TRIM-FABRIC & WITHOUT(*PW),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#
main74210-0K240-C2iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,136,TGN120,136..RHD..SA202402-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
RED,TRIM3#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main74220-0K020-C2iGUN125..ARL,TH;GUN126..ARL..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13#,TGN11#,126,XPN135..(L,S)..(ARL,GC202308-202407
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main74220-0K020-C2iGUN125..ARL,TH;GUN126..ARL..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13#,TGN11#,126,XPN135..(L,S)..(ARL,GC202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K020-C2iGUN125..ARL,TH;GUN126..ARL..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13#,TGN11#,126,XPN135..(L,S)..(ARL,GC202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main74220-0K020-C2iGUN125..ARL,TH;GUN126..ARL..CBU;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN112,122,125,TGN121..LHD..THP..(H,S);GUN111,120,121,126,13#,TGN11#,126,XPN135..(L,S)..(ARL,GC202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
MAROON,TRIM3#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),MAROON,TRIM3#
BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT,BLACK,TRIM2#
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&DOOR TRIM-FABRIC & WITHOUT(*PW),BLACK,TRIM2#
main74220-0K240-C2iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,136,TGN120,136..RHD..SA202402-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
DOOR TRIM-LEATHER & PAINT(SILVER)
DOOR TRIM-FABRIC & PAINT(SILVER)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&DOOR TRIM-FABRIC & PAINT(SILVER)
OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)&DOOR TRIM-FABRIC & PAINT(SILVER)
main74231-0K620iGUN13#..ARL;GUN122..RHD..THP..L;GUN126..RHD..THP..(L,S);GUN112,120,121,125,TGN121..L..(ARL,TH)202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main74231-0K620iGUN13#..ARL;GUN122..RHD..THP..L;GUN126..RHD..THP..(L,S);GUN112,120,121,125,TGN121..L..(ARL,TH)202308-202407
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main74231-0K770iGUN125..XTR..L..CBU;GUN125,135..RHD..S..SA;GUN122,126,TGN120,136..RHD..SCB..MTM..SA202402-202410
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&DOOR TRIM-FABRIC & PAINT(BLACK
74232PANEL, FRONT ARMREST BASE, UPPER LH
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&DOOR TRIM-FABRIC & PAINT(SILVER)
OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)&DOOR TRIM-FABRIC & PAINT(SILVER)
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
DOOR TRIM-FABRIC & PAINT(SILVER)
DOOR TRIM-LEATHER & PAINT(SILVER)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&DOOR TRIM-FABRIC & PAINT(BLACK
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main74232-0K790iGUN125..XTR..L..CBU;GUN125,135..RHD..S..SA;GUN122,126,TGN120,136..RHD..SCB..MTM..SA202402-202410
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)&DOOR TRIM-LEATHER & PAINT(SILVER)
OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL)&DOOR TRIM-LEATHER & PAINT(SILVER)
DOOR TRIM-LEATHER & PAINT(SILVER)
90467T0034
main90467-T0034
5 parts on this diagram · 2 diagrams in section
