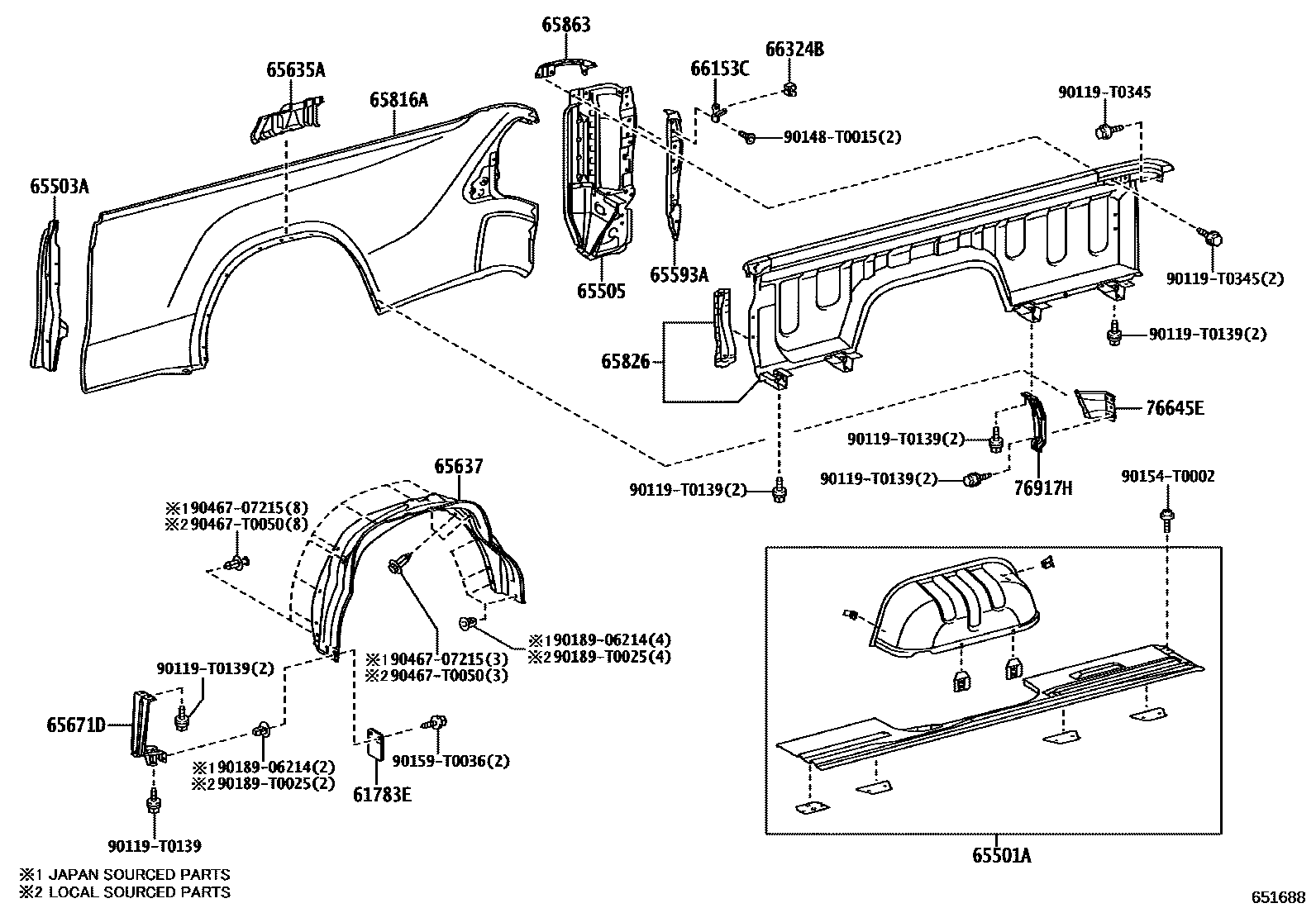

REAR BODY SIDE PANEL
61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
TAIL GATE-WITHOUT
65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH
TAIL GATE-WITHOUT
65505POST SUB-ASSY, SIDE PANEL REAR END, RH
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER),EXCEPT PLANT TSAM
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
EXCEPT PLANT TSAM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,EXCEPT PLANT TSAM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM,EXCEPT PLANT TSAM
TAIL GATE-WITHOUT,EXCEPT PLANT TSAM
EXCEPT PLANT TSAM
PLANT TSAM
65593APLATE, SIDE PANEL REAR END POST INSIDE, RH
TAIL GATE-WITHOUT
65635APANEL, WHEEL HOUSE, REAR RH
main65635-KK010iGUN125,135..SCB..THP..CBU;GUN11#,120,121,122,126,TGN11#,12#..THP..(L,S)..CBU202308-202407
TAIL GATE-WITHOUT
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
65637LINER, REAR WHEEL HOUSE, RH
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main65637-0K090iGUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..(KEN,SA)..CBU202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 STEEL
65671DBRACE, SIDE PANEL SKIRT, FRONT RH
TAIL GATE-WITHOUT
65816APANEL, REAR BODY SIDE, RH
TAIL GATE-WITHOUT
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
65826PANEL, REAR BODY SIDE, INNER RH
TAIL GATE-WITHOUT
65863PANEL, REAR BODY SIDE, UPPER RH
TAIL GATE-WITHOUT
66153CHOOK, TAIL GATE LATCH, NO.1 RH
TAIL GATE-WITHOUT
66324BCUSHION, TAIL GATE SIDE
TAIL GATE-WITHOUT
76645EBRACKET, RR BODY MUDGUARD, RH
main76645-KK010iGUN125,135..SCB..THP..CBU;GUN11#,120,121,122,126,TGN11#,12#..THP..(L,S)..CBU202308-202407
TAIL GATE-WITHOUT
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
76917HMUDGUARD, SIDE, REAR RH
TAIL GATE-WITHOUT
90119T0139
main90119-T0139
90119T0345
main90119-T0345
90148T0015
main90148-T0015
90154T0002
main90154-T0002
90159T0036
main90159-T0036
9018906214
main90189-06214
90189T0025
main90189-T0025
9046707215
main90467-07215
90467T0050
main90467-T0050
24 parts on this diagram · 6 diagrams in section
