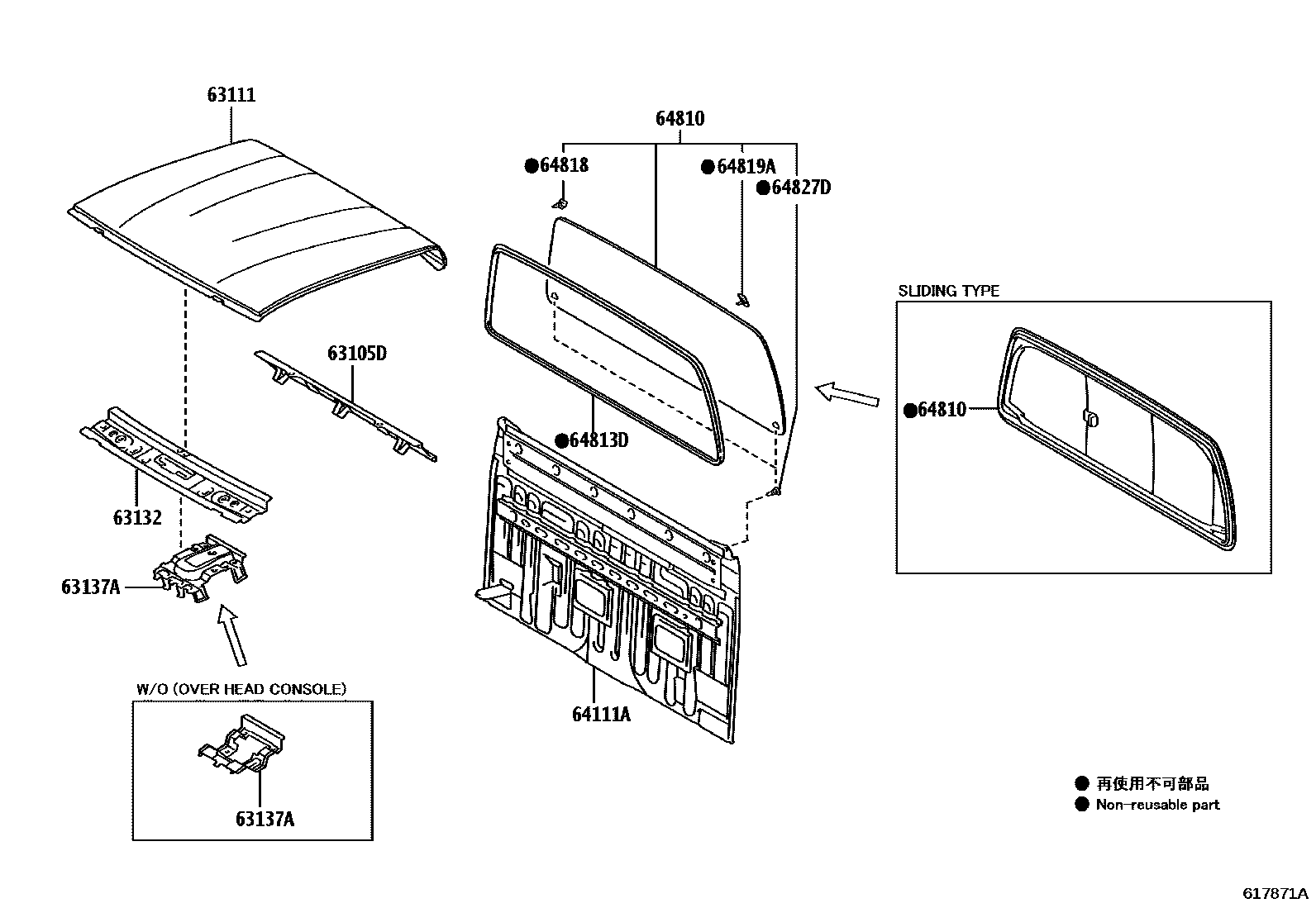

ROOF PANEL & BACK PANEL

0001 1 0002 1

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-KK040iGUN122,125,126,13#,LAN125,TGN12#,136..SCB..(AGTP,KENP,SAP)202308-202410

sub63105-KK070

main63105-KK070iGUN125..MA202309-202408

main63135-KK050iGUN125,126,13#..XTR..SA202308-202410

63111PANEL, ROOF

main63111-KK020iGUN122,126,TGN121..PKN202308-202410

main63111-KK030iGUN126..XTR..6F..IV3202308-202407

DATA COMMUNICATION MODULE-WITHOUT

main63111-KK030iGUN125,126,13#..XTR..SA202308-202410

main63111-KK110iGUN126,TGN121..SCB..6FC..IV3202308-202407

DATA COMMUNICATION MODULE-WITH(AU-DCM)

main63111-KK120iGUN126,136..XTR..6FC..ARL202308-202407

DATA COMMUNICATION MODULE-WITH(AU-DCM)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK021iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202410

main63132-KK031iGUN122,126,TGN121..PKN202309-202408

63137ABRACKET, DOME LAMP, NO.1

main63137-KK010iGUN125..XTR..GEN;GUN11#,12#,13#,TGN11#,12#,XPN135..ARL,GCC,IDN,TH202308-202410

FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)

main63137-KK010iGUN125..MA202308-202408

main63137-KK020iGUN122,125,135,TGN121,126..THP..L..(GEN,LA,PH)202308-202407

64111APANEL, BACK

main64101-KK030iGUN122..RHD..SCB;GUN122..LHD..THP;GUN125,135..SCB..S;GUN125,135,TGN121..SCB..(AGTP,THP);GUN11#,120,121,126,136,TGN11#,120,126,136..SCB202308-202410

main64101-KK070iGUN122,LAN125,TGN121..LHD..SA;GUN125,135..SCB..L..(KEN,MA,SA)202309-202410

main64101-KK081iGUN125,126,136..XTR..ARL202308-202411

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

main64101-KK101iGUN120,122,125,126,135..XTR..(GEN,TH)202308-202410

main64101-KK120iGUN125,126,13#..XTR..SA202402-202410

main64101-KK180iXPN135202311-202411

main64101-KK310iGUN122,126,TGN121..PKN202412

main64101-KK040iGUN125..XTR..S..SA202402-202410

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

64810WINDOW ASSY, BACK

main64801-0K112iGUN125..ARL,TH;GUN125..XTR..GEN;GUN126,135..(H,S)..TH;GUN120,122,136..XTR..THP;GUN126,135,TGN121..ARL..IV3202308-202407

REAR WINDOW DEFOGGER-WITH

main64801-0K122iGUN135..THP..L..CBU;GUN112,12#,TGN110,121,126,XPN135..SCB..THP..(GEN,IDN,LA,PH,TH)202308-202407

main64801-0K132iGUN126..ARL..CBU202308-202407

main64801-0K151iGUN125..LHD..L..SA;GUN125..XTR..S..SA;GUN122,135,LAN125,TGN120..L..SA202402-202410

REAR WINDOW DEFOGGER-WITHOUT

main64801-0K151iGUN135..KEN202402-202412

main64801-0K181iGUN125,126,135,TGN126,136..AGTP202311-202410

main64801-0K201iGUN125..MA202309-202408

main64810-0K041iGUN122,126,TGN121..PKN..CBU202308-202407

main64810-0K050iGUN125..KEN202402-202412

main64810-0K050iGUN135..S..SA;GUN125,126,136,TGN136..RHD..SA202402-202410

BACK GLASS-SLIDING TYPE(GREEN)

main64810-0K060iGUN125..XTR..S..SA;GUN125,126,13#,TGN136..RHD..(H,S)..SA202402-202410

BACK GLASS-SLIDING TYPE(PRIVACY)

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-KK041iGUN122..PKN..IV3202308-202412

64818SPACER, BACK WINDOW GLASS

main64818-0K090iGUN112,12#,13#,TGN110,121,126,XPN135..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407

main64818-0K100iGUN135..KEN202402-202412

main64818-0K100iGUN135..6F..S..SA;GUN125,TGN136..RHD..S..SA202402-202410

BACK GLASS-FIX TYPE(GREEN)

main64818-0K110iGUN125,126,135,TGN126,136..AGTP202311-202410

main64818-0K190iGUN125..MA202309-202408

64819ASPACER, BACK WINDOW GLASS, NO.2

main64819-0K110iGUN122..PKN..IV3202308-202407

main64819-0K120iGUN135..KEN202402-202412

main64819-0K120iGUN135..6F..S..SA;GUN125,TGN136..RHD..S..SA202402-202410

BACK GLASS-FIX TYPE(GREEN)

main64819-0K130iGUN125,126,135,TGN126,136..AGTP202311-202410

main64819-0K190iGUN125..MA202309-202408

64827DCLIP, BACK WINDOW GLASS

main64827-0K110iGUN122..PKN..IV3202308-202407

main64827-0K120iGUN135..6F..S..SA;GUN125,TGN136..RHD..S..SA202402-202410

BACK GLASS-FIX TYPE(GREEN)

main64827-0K120iGUN135..KEN202402-202412

main64827-0K130iGUN125,126,135,TGN126,136..AGTP202311-202410

main64827-0K160iGUN125..MA202309-202408

10 parts on this diagram · 2 diagrams in section
