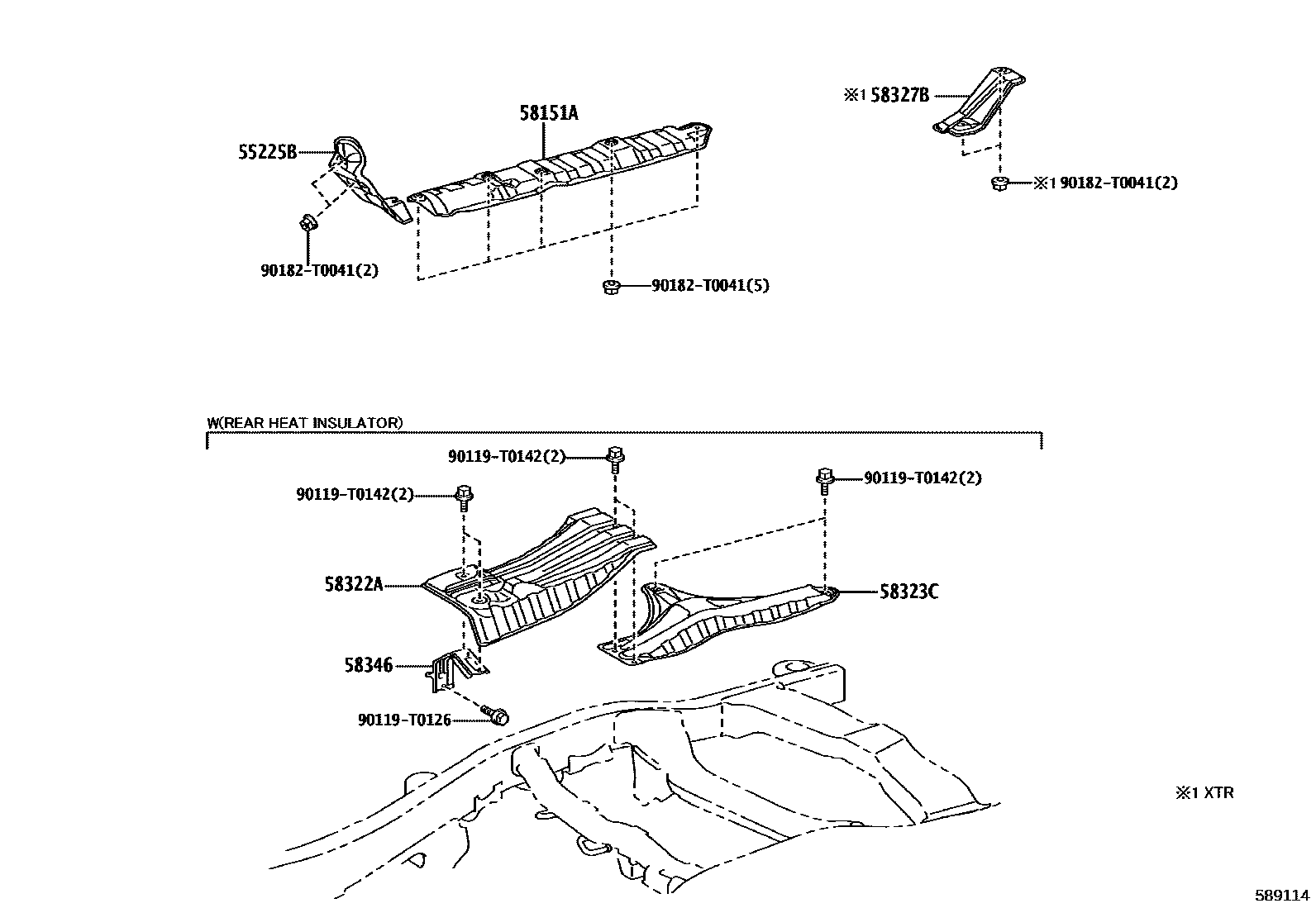

FLOOR INSULATOR

55225BINSULATOR, DASH PANEL HEAT

main55225-KK011iGUN125..MA202308-202412

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK011iGUN125,126,135,TGN126,136..AGTP202311-202410

sub58151-KK020

main58151-KK020iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202308-202412

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-KK011iGUN112..S;GUN125..GCC;GUN122..GCC..IV3202308-202407

GCC SPEC EURO4 2022MY

main58322-KK011iGUN112..S;GUN125..GCC;GUN122..GCC..IV3202308-202408

EXHAUST EMISSION CONTROL-WITHOUT

main58322-KK011iGUN112..S;GUN125..GCC;GUN122..GCC..IV3202308-202407

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main58322-KK011iGUN112..L..GCC202308-202407

SAUDI ARABIA SPEC

main58322-KK011iGUN122..GCC..CBU;GUN125..RHD..(GEN,TH);GUN112,120,121,122,126,135..TH202404-202407

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58322-KK011iGUN125..AGTP..LA202311-202408

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main58322-KK011iTGN120,136..LA,SA;GUN125,TGN126..AGTP;GUN135,TGN121..LHD..(BZAG,SA)202308-202410

main58322-KK011iGUN126..LA202401-202410

CHILE SPEC

main58322-KK011iGUN126..LA202311-202401

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

58323CINSULATOR, REAR FLOOR HEAT, NO.3

main58323-KK011iGUN112..S;GUN125..GCC;GUN122..GCC..IV3202308-202408

EXHAUST EMISSION CONTROL-WITHOUT

main58323-KK011iGUN126..LA202311-202401

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58323-KK011iGUN125..ARL;GUN112..L..GCC;TGN121,126..THP;GUN111,126,13#,TGN11#,120..ARL,GCC,IDN202308-202407

SAUDI ARABIA SPEC

main58323-KK011iGUN125..ARL;GUN112..L..GCC;TGN121,126..THP;GUN111,126,13#,TGN11#,120..ARL,GCC,IDN202308-202407

GCC SPEC EURO4 2022MY

main58323-KK011iGUN125..ARL;GUN112..L..GCC;TGN121,126..THP;GUN111,126,13#,TGN11#,120..ARL,GCC,IDN202308-202407

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main58323-KK011iGUN122..GCC..CBU;GUN125..RHD..(GEN,TH);GUN112,120,121,122,126,135..TH202404-202407

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58323-KK011iGUN125..AGTP..LA202311-202408

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main58323-KK011iTGN120,136..LA,SA;GUN125,TGN126..AGTP;GUN135,TGN121..LHD..(BZAG,SA)202308-202410

main58323-KK011iGUN126..LA202401-202410

CHILE SPEC

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K021iGUN120,122,125,126,13#..XTR..THP202308-202410

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58332-KK010iGUN126..LA202311-202401

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58332-KK010iGUN125..ARL;GUN112..L..GCC;TGN121,126..THP;GUN111,126,13#,TGN11#,120..ARL,GCC,IDN202308-202407

SAUDI ARABIA SPEC

main58332-KK010iGUN125..ARL;GUN112..L..GCC;TGN121,126..THP;GUN111,126,13#,TGN11#,120..ARL,GCC,IDN202308-202407

GCC SPEC EURO4 2022MY

main58332-KK010iGUN125..ARL;GUN112..L..GCC;TGN121,126..THP;GUN111,126,13#,TGN11#,120..ARL,GCC,IDN202308-202408

EXHAUST EMISSION CONTROL-WITHOUT

main58332-KK010iGUN125..ARL;GUN112..L..GCC;TGN121,126..THP;GUN111,126,13#,TGN11#,120..ARL,GCC,IDN202308-202407

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main58332-KK010iGUN122..GCC..CBU;GUN125..RHD..(GEN,TH);GUN112,120,121,122,126,135..TH202404-202407

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58332-KK010iGUN125..AGTP..LA202311-202408

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main58332-KK010iTGN120,136..LA,SA;GUN125,TGN126..AGTP;GUN135,TGN121..LHD..(BZAG,SA)202308-202410

main58332-KK010iGUN126..LA202401-202410

CHILE SPEC

90119T0126

main90119-T0126

90119T0142

main90119-T0142

90182T0041

main90182-T0041

9 parts on this diagram · 1 diagram in section
