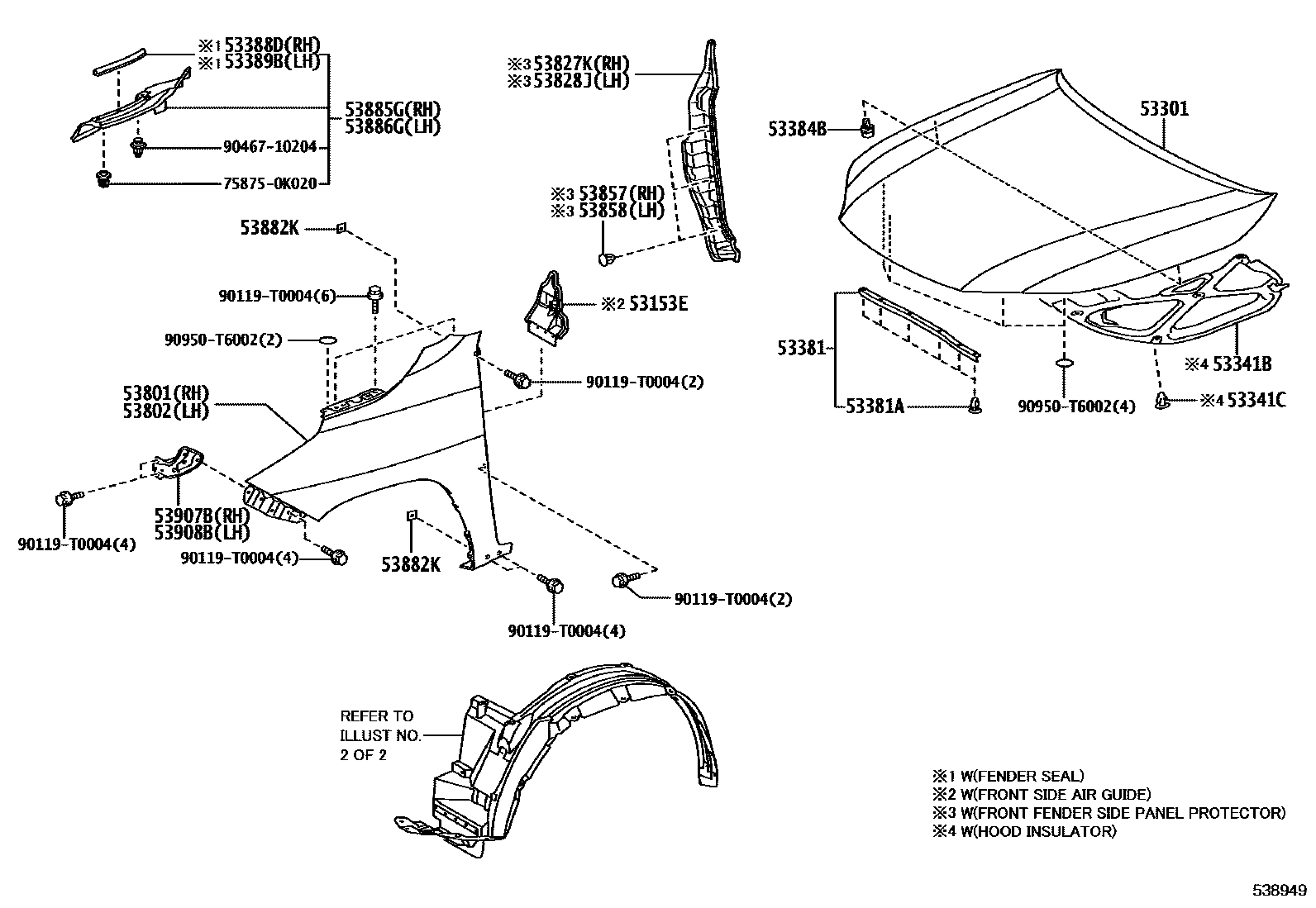

HOOD & FRONT FENDER
53153EGUIDE, FRONT SIDE AIR
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-225/70R17C STEEL
53301HOOD SUB-ASSY
POWER SUPPLY PACKAGE
53341BINSULATOR, HOOD
ECUADOR SPEC
53341CCLIP(FOR HOOD INSULATOR)
ECUADOR SPEC
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
main53811-KK010iGUN122..L..GCC;GUN126..RHD..SCB..THP;GUN112,121,125,135,TGN120,121..SCB..THP..L;GUN120,122,TGN110,126..THP..(GEN,IDN,LA,PH,TH)202308-202407
OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
53802FENDER SUB-ASSY, FRONT LH
main53812-KK010iGUN122..LHD..SA;GUN135..(AGTP,SAP)..L;GUN125,126,LAN125,TGN12#..SCB..(AGTP,SAP)..(L,S)202308-202410
OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL) & W(LOGO LAMP)
TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/60R18, ALUMINUM
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53882KSEAL, FRONT FENDER
(L)
(J)
53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
main53807-0K110iGUN126..SCB..THP;GUN125,135..THP..L;GUN11#,120,121,122,TGN11#,12#,XPN135..THP202308-202407
main53807-0K120iGUN125..LHD..SCB..SA;GUN125..RHD..(KEN,SA);GUN122,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202402-202410
53886GSEAL, FENDER APRON MUDGUARD, LH
main53808-0K120iGUN125..LHD..SCB..SA;GUN125..RHD..(KEN,SA);GUN122,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202402-202410
53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH
main53908-KK010iGUN125,126..SCB..(AGTP,SAP)..(L,S);GUN122,135,LAN125,TGN12#,136..(AGTP,SAP)..L202308-202410
758750K020MOULDING, BACK DOOR OUTSIDE, UPPER
main75875-0K020
90119T0004
main90119-T0004
9046710204
main90467-10204
90950T6002
main90950-T6002
24 parts on this diagram · 4 diagrams in section
