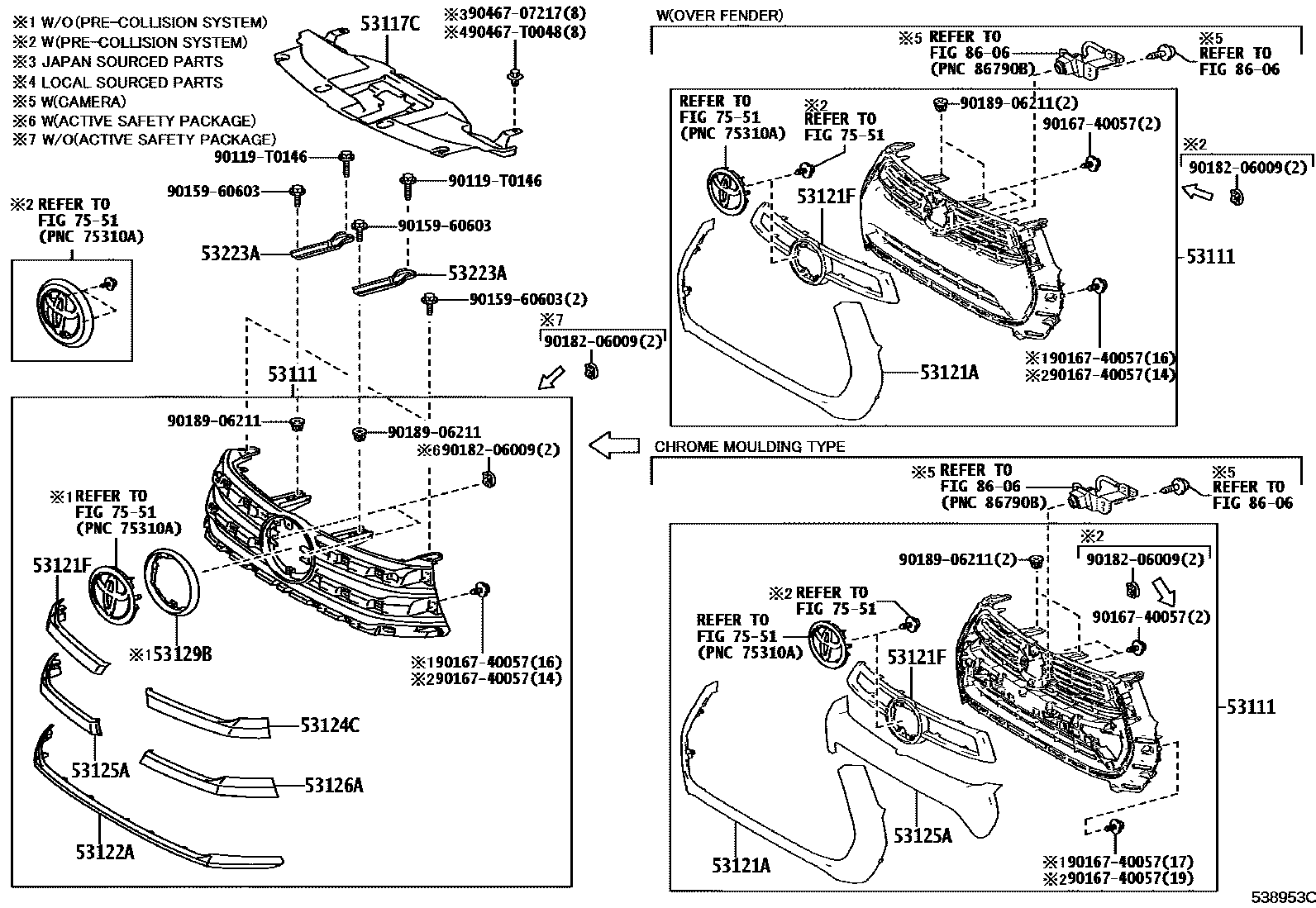

RADIATOR GRILLE
53111GRILLE, RADIATOR
main53100-0K480iGUN135..THP..LA;GUN125..L..(GEN,IDN);GUN112,120,121,122,126,TGN110,121..(L,S)..(GEN,IDN,PH,TH)202308-202407
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITHOUT
PLATED,REAR BUMPER-STEP TYPE(PLATED)
NO PAINT REQ.
NO PAINT REQ.
main53100-0KA80iGUN125..LHD..L..SA;GUN125..RHD..SCB..6F..SA;GUN122,135,LAN125,TGN120,121..L..SA202402-202410
NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&RADIATOR GRILLE-MATERIAL COLOR
NO PAINT REQ.
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITHOUT
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
PLATED,FRONT BUMPER-PAINTED(MLM)&RADIATOR GRILLE-CHROME PLATED
PLATED
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.
NO PAINT REQ.,RADIATOR GRILLE-MATERIAL COLOR
NO PAINT REQ.,PLATINUM WHITE PEARL MC.,089
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH
NO PAINT REQ.,POWER SUPPLY PACKAGE
PLATED,BACK MONITOR-WITH(*PVM)
PLATED,MLM ADVENTURE PACKAGE
PLATED,MLM ADVENTURE PACKAGE
PLATED,MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH
PLATED,MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,MLM Z-PLUS PACKAGE&RADIATOR GRILLE-MATERIAL COLOR(MLM),WITH(BLACK MOULDING)
NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
53117CRETAINER, RADIATOR GRILLE, NO.1
TIRE & DISC WHEEL-225/70R17C STEEL&RADIATOR GRILLE-MATERIAL COLOR
COLD CHAIN PACKAGE
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PLATED))
53121AMOULDING, RADIATOR GRILLE
FRONT BUMPER-PAINTED(MLM)&RADIATOR GRILLE-CHROME PLATED
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REARBUMPER-WITH(*RUPD(PLATED))
TIRE & DISC WHEEL-265/65R17 STEEL
RADIATOR GRILLE-MATERIAL COLOR
COLD CHAIN PACKAGE
MLM Z-PLUS PACKAGE
MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)
MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH
MLM Z-PLUS PACKAGE&RADIATOR GRILLE-MATERIAL COLOR(MLM),WITH(COLOR MOULDING)
MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
53121FMOULDING, RADIATOR GRILLE, UPPER RH
REAR BUMPER-STEP TYPE(PLATED)
RADIATOR GRILLE-MATERIAL COLOR
RADIATOR GRILLE-MATERIAL COLOR
FRONT BUMPER-PAINTED(MLM)&RADIATOR GRILLE-CHROME PLATED
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REARBUMPER-WITH(*RUPD(PLATED))
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
RADIATOR GRILLE-MATERIAL COLOR
53122AMOULDING, RADIATOR GRILLE, LOWER
REAR BUMPER-STEP TYPE(PLATED)
RADIATOR GRILLE-MATERIAL COLOR
TIRE & DISC WHEEL-225/70R17C STEEL&RADIATOR GRILLE-MATERIAL COLOR
RADIATOR GRILLE-MATERIAL COLOR
53124CMOULDING, RADIATOR GRILLE, UPPER LH
REAR BUMPER-WITH(*RUPD(PLATED))
REAR BUMPER-STEP TYPE(PLATED)
RADIATOR GRILLE-MATERIAL COLOR
main53126-0K220iGUN125..LHD..L..SA;GUN125..RHD..SCB..6F..SA;GUN122,135,LAN125,TGN120,121..L..SA202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL&RADIATOR GRILLE-MATERIAL COLOR
RADIATOR GRILLE-MATERIAL COLOR
53125AMOULDING, RADIATOR GRILLE, CENTER RH
REAR BUMPER-WITH(*RUPD(PLATED))
REAR BUMPER-STEP TYPE(PLATED)
RADIATOR GRILLE-MATERIAL COLOR
main53123-0K250iGUN125..LHD..L..SA;GUN125..RHD..SCB..6F..SA;GUN122,135,LAN125,TGN120,121..L..SA202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL&RADIATOR GRILLE-MATERIAL COLOR
RADIATOR GRILLE-MATERIAL COLOR
FRONT BUMPER-PAINTED(MLM)&RADIATOR GRILLE-CHROME PLATED
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REARBUMPER-WITH(*RUPD(PLATED))
53126AMOULDING, RADIATOR GRILLE, CENTER LH
REAR BUMPER-WITH(*RUPD(PLATED))
REAR BUMPER-STEP TYPE(PLATED)
RADIATOR GRILLE-MATERIAL COLOR
RADIATOR GRILLE-MATERIAL COLOR
53129BMOULDING, RADIATOR GRILLE, NO.9
REAR BUMPER-WITH(*RUPD(PLATED))
REAR BUMPER-STEP TYPE(PLATED)
main53127-0K110iGUN135..THP..LA;GUN125..L..(GEN,IDN);GUN112,120,121,122,126,TGN110,121..(L,S)..(GEN,IDN,PH,TH)202308-202407
RADIATOR GRILLE-MATERIAL COLOR
main53127-0K120iGUN125..LHD..L..SA;GUN125..RHD..SCB..6F..SA;GUN122,135,LAN125,TGN120,121..L..SA202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL&RADIATOR GRILLE-MATERIAL COLOR
RADIATOR GRILLE-MATERIAL COLOR
53223ABRACKET, RADIATOR GRILLE MOUNTING
7551
8606
90119T0146
main90119-T0146
9015960603
main90159-60603
9016740057
main90167-40057
9018206009
main90182-06009
9018906211
main90189-06211
9046707217
main90467-07217
90467T0048
main90467-T0048
19 parts on this diagram · 4 diagrams in section
