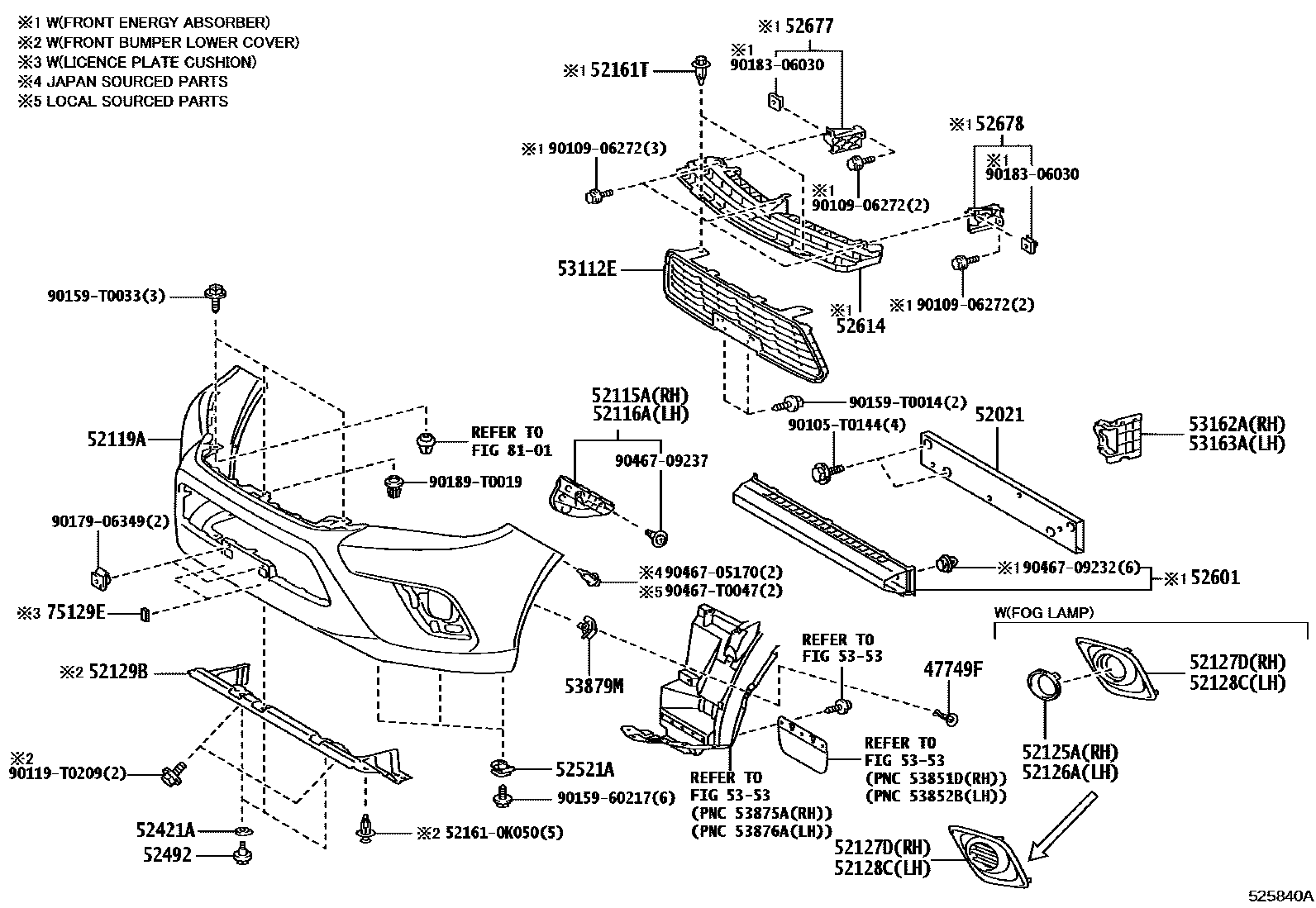

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-MATERIAL COLOR
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
52116ASUPPORT, FRONT BUMPER SIDE, LH
TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-MATERIAL COLOR
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
52119ACOVER, FRONT BUMPER
main52119-0K820iGUN112,120,122,125,135,TGN110,121,126..SCB..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407
PAINT REQ.,FRONT BUMPER-WITH(STEEL LOWER COVER)
main52119-0M977iTGN121..S;TGN126..THP..LA;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC,GEN;GUN125,TGN121..L..(GEN,IDN)202308-202407
PAINT REQ.,FRONT BUMPER-PAINTED
main52119-0M979supersedes 52119-0K860iGUN125..LHD..L..SA;GUN125..RHD..SCB..6F..SA..CBU;GUN122,135,LAN125,TGN121..L..SA202402-202410
PAINT REQ.,FRONT BUMPER-PAINTED
PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.
PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.
PAINT REQ.,FRONT BUMPER-PAINTED
PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,FRONT BUMPER-PAINTED(MLM)
PAINT REQ.,MLM Z-PLUS PACKAGE
PAINT REQ.,MLM Z-PLUS PACKAGE
PAINT REQ.,MLM Z-PLUS PACKAGE
52125ABRACKET, FOG LAMP MOUNTING, RH
FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH
52126ABRACKET, FOG LAMP MOUNTING, LH
FRONT BUMPER-MATERIAL COLOR&FRONT FOG LAMP-WITH
52127DCOVER, FRONT BUMPER HOLE, RH
NO PAINT REQ.
main52127-0K200supersedes 52127-0K230iTGN121..S;TGN121..GCC..IV3;GUN11#,122,TGN111..GCC202308-202407
NO PAINT REQ.,FRONT BUMPER-PAINTED
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
NO PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT FOG LAMP-WITH(LED)
52128CCOVER, FRONT BUMPER HOLE, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C STEEL&FRONT BUMPER-MATERIAL COLOR&RADIATOR GRILLE-PAINTING
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
NO PAINT REQ.,FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
NO PAINT REQ.,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE&FRONT FOG LAMP-WITH(LED)
52129BCOVER, FRONT BUMPER, LOWER
52161TPIECE, FRONT BUMPER
52421APAD, FRONT BUMPER
FRONT BUMPER-PAINTED
MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
52492BOLT, BUMPER PAD, NO.2
FRONT BUMPER-PAINTED
52521ACLIP(FOR FRONT BUMPER RETAINER)
FRONT BUMPER-PAINTED
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.,FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
53162ADEFLECTOR, FRONT BUMPER STONE, RH
FRONT BUMPER-PAINTED
53163ADEFLECTOR, FRONT BUMPER STONE, LH
FRONT BUMPER-PAINTED
5353
53879MRETAINER, FRONT FENDER LINER
75129ECUSHION, FRONT LICENCE PLATE
8101
521610K050CUSHION, REAR BUMPER GUARD, NO.1
main52161-0K050
90105T0144
main90105-T0144
9010906272
main90109-06272
90119T0209
main90119-T0209
9015960217
main90159-60217
90159T0014
main90159-T0014
90159T0033
main90159-T0033
9017906349
main90179-06349
9018306030
main90183-06030
90189T0019
main90189-T0019
9046705170
main90467-05170
9046709232
main90467-09232
9046709237
main90467-09237
90467T0047
main90467-T0047
39 parts on this diagram · 6 diagrams in section
