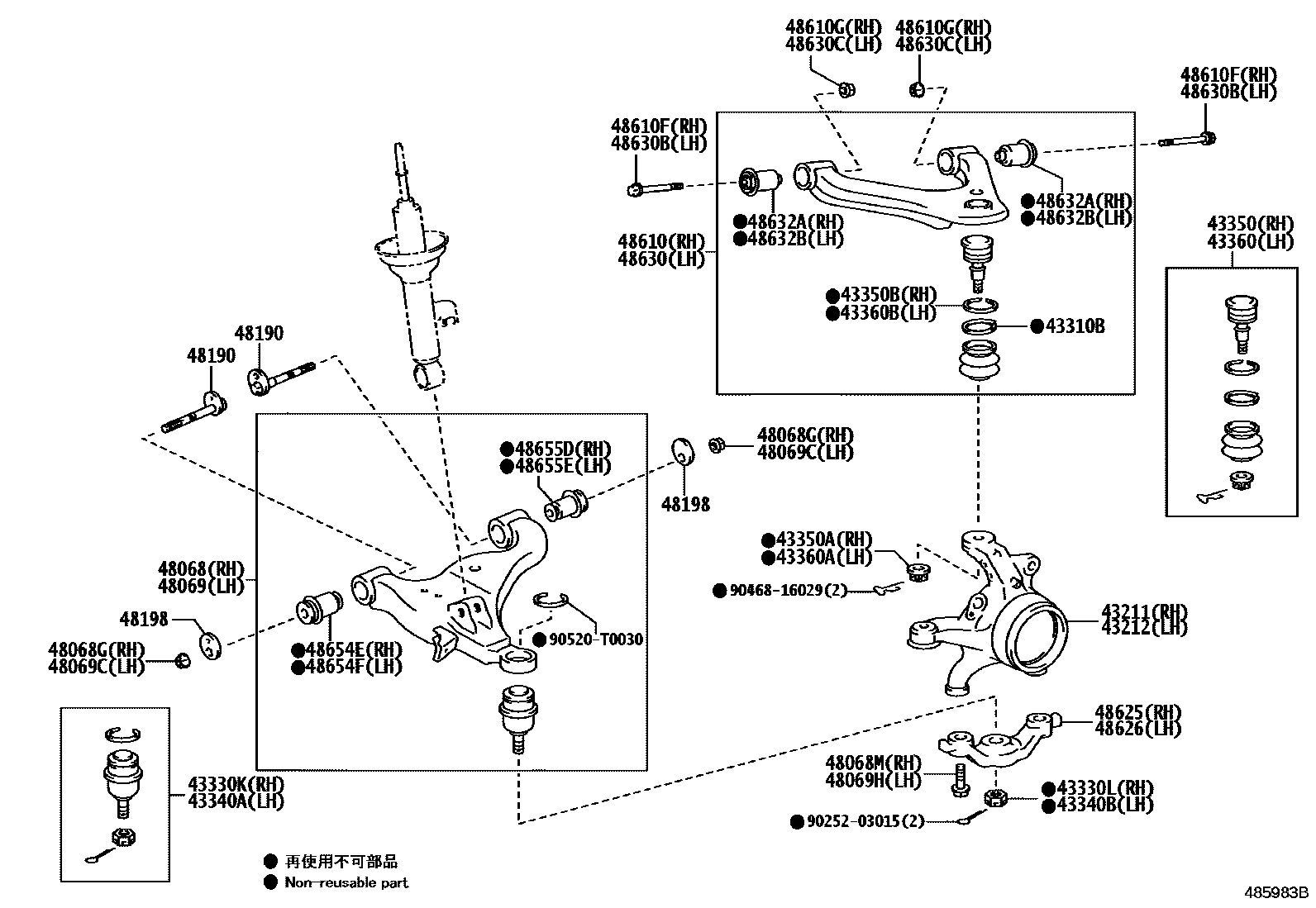

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-KK010iGUN125,135..KEN202308-202412

main43211-KK030iGUN122,TGN121..PKN202308-202410

43212KNUCKLE, STEERING, LH

main43212-KK010iGUN125,126,13#,TGN126..THP202308-202412

main43212-KK030iGUN11#,120,121,122,TGN11#,120,121..THP202308-202410

43310BRING, SET (FOR DUST COVER)

main90580-10001iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202412

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09510iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202412

main43330-09A20iGUN125,126,135,TGN126,136..AGTP202311-202410

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iGUN122,126,TGN121..PKN202308-202412

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09510iGUN122,126,TGN121..PKN202308-202412

main43330-09A20iGUN125,126,135,TGN126,136..AGTP202311-202410

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iGUN125..MA202308-202412

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09017iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202308-202412

main43310-09030iGUN125,126,135,TGN126,136..AGTP202311-202410

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iGUN122,126,TGN121..PKN202308-202412

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202412

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09017iGUN125..MA202308-202412

main43310-09030iGUN125,126,135,TGN126,136..AGTP202311-202410

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202412

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202412

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K010iGUN11#,120,121,122,TGN11#,120,121..THP202308-202410

main48068-0K090iGUN125,126,13#,LAN125,TGN136..SA202308-202412

main48068-0K121iGUN125,126,135,TGN126,136..AGTP202311-202410

main48068-0K160iXPN135202311-202407

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0073iGUN122,126,TGN121..PKN202308-202412

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-T0305iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202412

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K010iGUN122,TGN120,121..SA202308-202410

main48069-0K090iGUN126..PKN202308-202412

main48069-0K121iGUN125,126,135,TGN126,136..AGTP202311-202410

main48069-0K160iXPN135202311-202407

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0073iGUN122,126,TGN121..PKN202308-202412

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-T0305iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202412

48190CAM ASSY, CAMBER ADJUST

main48190-0K020iGUN11#,120,121,122,TGN11#,120,121..THP202308-202410

main48190-0K040iGUN125,126,13#,LAN125,TGN126,136..AGTP,SAP202308-202412

48198CAM, CAMBER ADJUST, NO.2

main48198-0K020iGUN11#,120,121,122,TGN11#,120,121..THP202308-202410

main48198-0K030iGUN125..MA202308-202412

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K010iGUN122,TGN120,121..SA202308-202410

main48610-0K040iGUN126..PKN202308-202412

main48610-0K051iGUN125,126,135,TGN126,136..AGTP202311-202410

main48610-0K070iGUN125,126,135..XTR..TH202308-202407

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-T0114iGUN126..PKN202308-202412

main90119-T0348iGUN122,TGN121..PKN202308-202410

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0027iGUN125..MA202308-202412

main90178-T0047iGUN11#,120,121,122,TGN11#,120,121..THP202308-202410

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-0K030iGUN122,TGN120,121..SA202402-202410

main48625-0K050iGUN11#,120,121,122,TGN11#,120,121..THP202308-202407

main48625-KK010iGUN125,126,13#,LAN125,TGN126,136..AGTP,SAP202311-202412

sub48625-KK040

main48625-KK040iGUN126..PKN202308-202408

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-0K030iGUN122,TGN120,121..SA202402-202410

main48626-0K050iGUN122,TGN121..PKN202308-202407

main48626-KK010iGUN125,135..KEN202311-202412

sub48626-KK040

main48626-KK040iGUN125..MA202308-202408

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K010iGUN122,TGN121..PKN202308-202410

main48630-0K040iGUN126..PKN202308-202412

main48630-0K051iGUN125,126,135,TGN126,136..AGTP202311-202410

main48630-0K070iGUN125,126,135..XTR..TH202308-202407

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-T0114iGUN125,126,13#,TGN126,XPN135..THP202308-202412

main90119-T0348iGUN122,TGN121..PKN202308-202410

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0027iGUN125,135..KEN202308-202412

main90178-T0047iGUN11#,120,121,122,TGN11#,120,121..THP202308-202410

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K010iGUN122,TGN120,121..SA202308-202410

main48632-0K040iGUN126..PKN202308-202412

main48632-0K070iGUN125,126,135..XTR..TH202308-202407

main48632-0K110iGUN125,126,135,TGN126,136..AGTP202311-202410

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K010iGUN122,TGN120,121..SA202308-202410

main48632-0K040iGUN125..MA202308-202412

main48632-0K070iGUN125,126,135..XTR..TH202308-202407

main48632-0K110iGUN125,126,135,TGN126,136..AGTP202311-202410

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K010iGUN11#,120,121,122,TGN11#,120,121..THP202308-202410

main48654-0K080iGUN126..PKN202308-202412

main48654-0K150iGUN125,126,135,TGN126,136..AGTP202311-202410

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K010iGUN122,TGN120,121..SA202308-202410

main48654-0K080iGUN125,126,13#,TGN126,XPN135..THP202308-202412

main48654-0K150iGUN125,126,135,TGN126,136..AGTP202311-202410

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K010iGUN11#,120,121,122,TGN11#,120,121..THP202308-202410

main48655-0K080iGUN126..PKN202308-202412

main48655-0K130iGUN125,126,135,TGN126,136..AGTP202311-202410

main48655-0K140iXPN135202311-202407

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K010iGUN122,TGN121..PKN202308-202410

main48655-0K080iGUN125,126,13#,LAN125,TGN136..SA202308-202412

main48655-0K130iGUN125,126,135,TGN126,136..AGTP202311-202410

main48655-0K140iXPN135202311-202407

9025203015

main90252-03015

9046816029

main90468-16029

90520T0030

main90520-T0030

38 parts on this diagram · 2 diagrams in section
