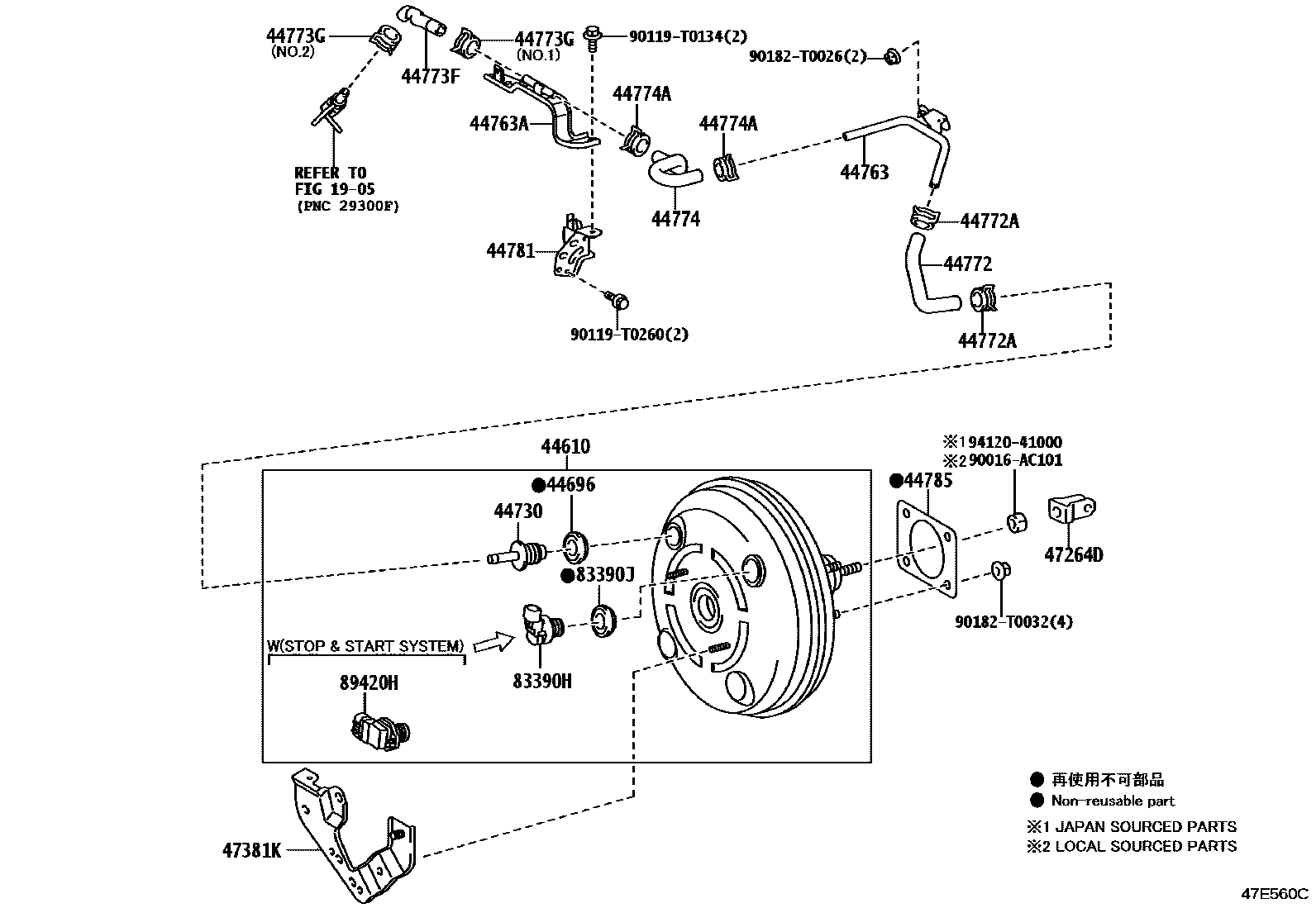

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1905

44610BOOSTER ASSY, BRAKE

main44610-0K560supersedes 44610-0K650iTGN121..GEN..CBU202308-202407

TIRE & DISC WHEEL-215/65R16C STEEL

main44610-0K580iGUN122,126..PKN202308

main44610-0K600iGUN11#,122,125,126,135..LHD..THP202308-202407

main44610-71010iTGN126,136..AGTP202311-202410

main44610-71030iGUN125,126,135..AGTP202311-202410

main44610-0K880iGUN135..L..TH202308-202407

TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)

main44610-0K890iGUN126..6FC..GCC202308-202407

TOYOTA STOP & START SYSTEM-WITH

44696GROMMET, CHECK VALVE

main90016-AT003iTGN11#,12#..THP202308-202407

main90480-24439iGUN125,126,135..AGTP202311-202410

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGUN122,125,126,13#,LAN125..AGTP,SAP202308-202410

44763TUBE, BOOSTER VACUUM

main44763-KK020iTGN120,136..SA202308-202410

main44763-KK030iLAN125202402-202410

main44763-KK040iGUN112,12#,13#..RHD..THP202308-202407

main44763-KK050iGUN122,125,126,135..LHD..(AGTP,SAP)202308-202410

main44763-KK160iTGN121,126,136..(AGTP,SAP)..L202308-202410

44763ATUBE, HOSE TO HOSE, NO.1

main44763-KK080iGUN11#,12#,13#..THP202308-202407

main44763-KK170iGUN125..MA202309-202408

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-KK010iGUN112,12#,13#..RHD..THP202308-202407

main44772-KK040iTGN110,121..RHD202308-202407

main44772-KK070iGUN11#,122,125,126,135..LHD..THP202308-202407

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-T0019×2iGUN122,125,126,13#,TGN12#,136..AGTP,SAP202308-202410

44773FHOSE, UNION TO CHECK VALVE

main44773-0K020iLAN125202402-202410

main44773-KK030iGUN122,125,126,13#..AGTP,SAP202308-202410

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019iGUN11#,12#,13#..THP202308-202407

NO.1:REFER ILLUST.

main90467-16014iGUN122,125,126,13#..AGTP,SAP202308-202410

NO.2:REFER ILLUST.

44774HOSE, UNION TO CONNECTOR TUBE

main44774-KK010iTGN120,136..SA202308-202410

main44774-KK020iTGN121,126,136..(AGTP,SAP)..L202308-202410

main44774-KK040iGUN125,135..KEN202308-202412

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0019×2iGUN122,125,126,13#,TGN12#,136..AGTP,SAP202308-202410

44781BRACKET, HOSE

main44781-KK020iGUN125..MA202308-202408

44785GASKET, BRAKE BOOSTER

main44785-17010iGUN125..MA202308-202408

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGUN125,135..KEN202308-202412

main47264-26030iGUN125,126,135,TGN126,136..AGTP202311-202410

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K071iGUN11#,12#,13#,TGN11#,12#..THP202308-202407

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGUN11#,12#,13#..THP202308-202407

TOYOTA STOP & START SYSTEM-WITH

83390JGROMMET, VACUUM WARNING SWITCH

main90016-AT003iGUN11#,12#,13#..THP202308-202407

main90480-24439iGUN125,126,135..AGTP202311-202410

89420HSENSOR ASSY, VACUUM

main89421-71040iGUN135..L..TH202308-202407

TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)

90016AC101

main90016-AC101

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90182T0026

main90182-T0026

90182T0032

main90182-T0032

9412041000

main94120-41000

25 parts on this diagram · 5 diagrams in section
