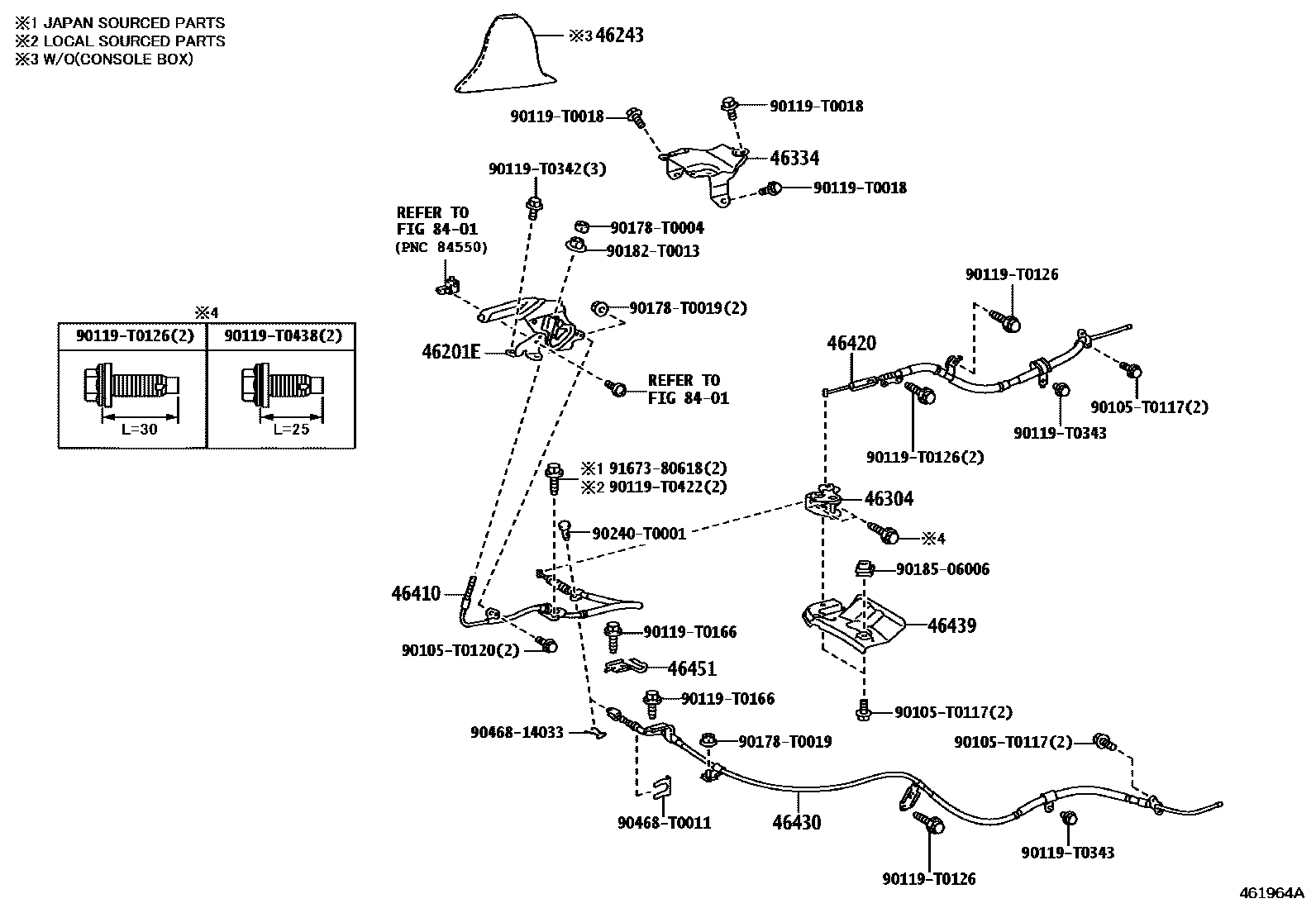

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K210-C0iGUN126,136..H..SA202402-202410

BLACK,TRIM2#

main46201-0K230-C0iGUN125..H;GUN135..TH;GUN120,122,126..XTR..THP..(H,S)..CBU202308-202407

BLACK,TRIM2#

main46201-0K230-C0iGUN125..H;GUN135..TH;GUN120,122,126..XTR..THP..(H,S)..CBU202308-202407

DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#

main46201-0K230-C0iGUN125..H;GUN135..TH;GUN120,122,126..XTR..THP..(H,S)..CBU202308-202407

DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#

main46201-0K250-C0iGUN122,126,TGN121..PKN202308-202408

BLACK,TRIM2#

main46201-0K250-C0iGUN11#,122,125,126,TGN11#,12#..GCC202308-202407

BLACK,TRIM2#,3#

main46201-0K260-C0iGUN125,126,135,TGN126,136..AGTP202311-202410

BLACK,TRIM2#

main46201-0K280-C0iGUN125,135..KEN202402-202412

BLACK,TRIM2#

46243COVER, PARKING BRAKE LEVER

main46243-0K020-C0iGUN122..LHD..GEN;GUN122..SCB..(PH,TH);GUN112,121,125,126,135,TGN110,121..SCB..THP..MTM..(GEN,IDN,LA,TH)202308-202407

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main46243-0K020-C0iGUN122..LHD..GEN;GUN122..SCB..(PH,TH);GUN112,121,125,126,135,TGN110,121..SCB..THP..MTM..(GEN,IDN,LA,TH)202308-202407

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#

main46243-0K020-C0iGUN122..LHD..GEN;GUN112,125,TGN110,121..L..(GEN,IDN)202308-202407

BLACK,TRIM2#,3#

main46243-0K020-C0iGUN122..LHD..GEN;GUN112,125,TGN110,121..L..(GEN,IDN)202308-202408

BLACK,TRIM2#

main46243-0K030-C0iGUN122,125,135,LAN125,TGN120,121..SCB..L..SA202402-202410

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#

main46243-0K030-C0iGUN122,125,135,LAN125,TGN120,121..SCB..L..SA202402-202412

BLACK,TRIM2#

main46243-0K040-C0iGUN135..AGTP..LA202311-202410

BLACK,TRIM2#

main46243-0K040-C0iGUN125,126..AGTP..LA202311-202410

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#

main46243-0K050-C0iGUN122,126,TGN121..PKN202412

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGUN125,126,135,TGN126,136..AGTP202308-202410

main46304-0K090iGUN125,135..KEN202402-202412

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K020iGUN11#,12#,135,TGN11#,12#,XPN135..SCB..THP202308-202412

main46334-KK010iGUN120,122,125,126,13#..XTR..THP202308-202410

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K100iGUN11#,TGN11#202308-202407

main46410-0K120iGUN125,135..KEN202308-202412

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K150iGUN11#,TGN11#202308-202407

main46420-0K160iGUN122,TGN121..PKN202308-202410

main46420-0K210iGUN125,126,13#,TGN126..THP202308-202410

main46420-0K220iGUN125,135..KEN202402-202412

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K150iGUN11#,TGN11#202308-202407

main46430-0K160iGUN122,TGN121..PKN202308-202410

main46430-0K210iGUN125,126,13#,TGN126..THP202308-202410

main46430-0K220iGUN125,135..KEN202402-202412

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202412

46451BRACKET, CABLE SUPPORT

main46451-0K040iGUN125..MA202308-202412

main46451-0K050iGUN11#,TGN11#202308-202401

sub46451-0K051

main46451-0K051iGUN11#,TGN11#202402-202407

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

27 parts on this diagram · 4 diagrams in section
