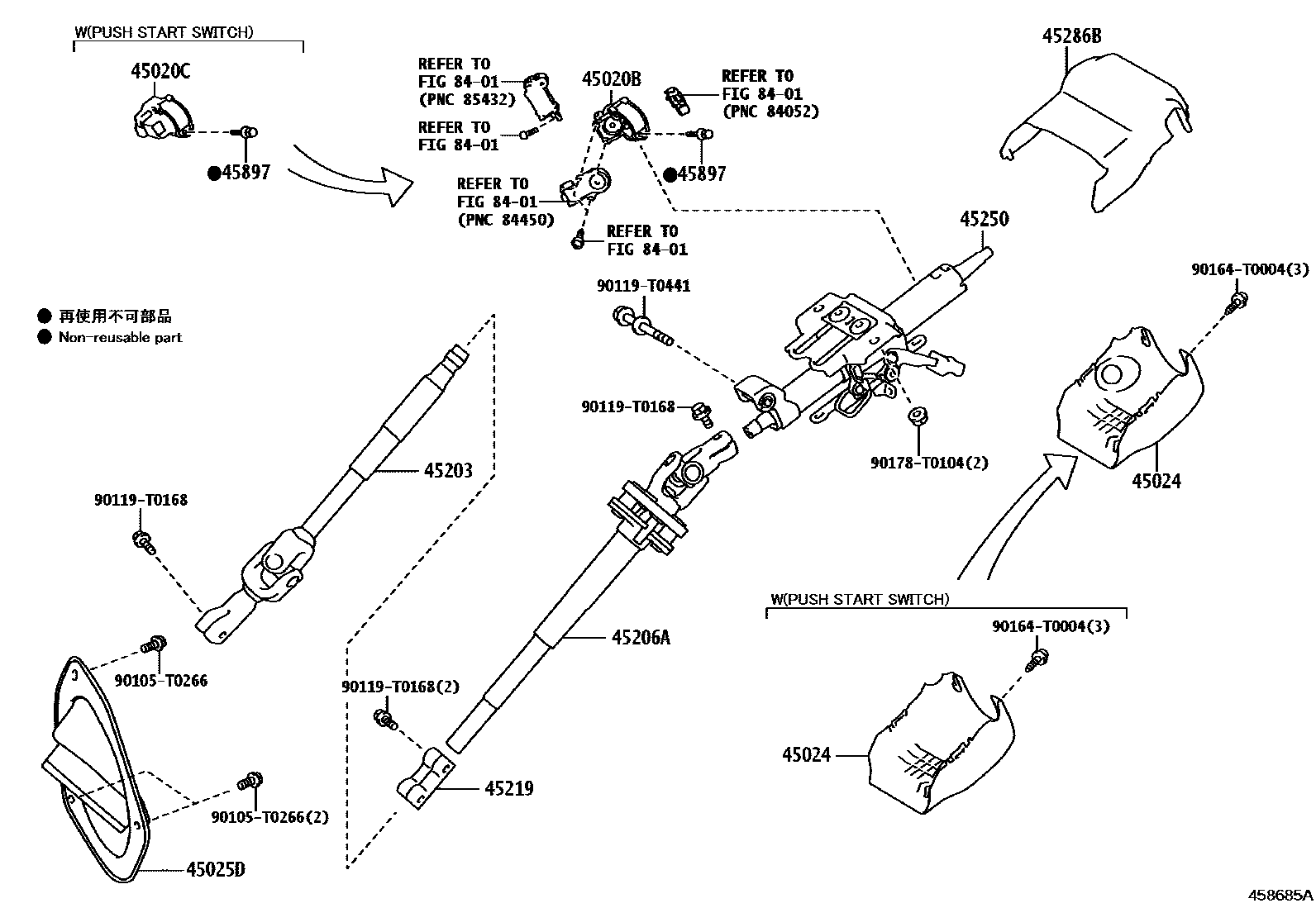

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-0K120iGUN120,125,126,13#,TGN121..THP..6FC..(L,S)202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main45280-0K120iGUN135..6FC..SA;GUN125,126,136..SCB..6FC..SA202308-202410

main45280-0K180iGUN122,125,126,135,LAN125,TGN12#,136..(AGTP,SAP)..MTM202308-202412

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0K240iGUN125,135..6F..(L,S)..TH202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main45020-0K240iGUN136..6F202308-202410

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-0K010-C0iGUN11#,122,125,126,TGN11#,12#..GCC202308-202403

BLACK,TRIM2#,3#

sub45024-0K011

main45024-0K010-C0iGUN11#,122,125,126,TGN11#,12#..GCC202308-202403

BLACK,TRIM2#

sub45024-0K011

main45024-0K011-C0iGUN126..PKN202404-202408

BLACK,TRIM2#

main45024-0K011-C0iGUN125,126,TGN126..GCC202404-202407

BLACK,TRIM2#,3#

main45024-0K030-C0iGUN125,126,135..THP..H202308-202403

BLACK,TRIM2#

sub45024-0K031

main45024-0K030-C0iGUN125,135..6F..(L,S)..TH202308-202403

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#

sub45024-0K031

main45024-0K031-C0iGUN125,126..THP..H202404-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#

main45024-0K031-C0iGUN125..TH202404-202407

BLACK,TRIM2#

main45024-0K060-C0iGUN125,126,135,TGN126,136..AGTP202311-202410

BLACK,TRIM2#

main45024-0K071-C0iGUN126..6F..SA;GUN126..SCB..H;GUN125,LAN125..SA202402-202412

BLACK,TRIM2#

main45024-0K101-C0iGUN126..6F..H..SA202402-202410

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#

main45024-0K101-C0iGUN126..XTR..6FC..SA202402-202410

BLACK,TRIM2#

main45024-0K110-C0iXPN135202311-202403

BLACK,TRIM2#

sub45024-0K111

main45287-0K050-C0iGUN112,120,121,122,13#,TGN110,121..THP..(L,S)..(ARL,GEN,IDN,LA,PH,TH)202402-202407

BLACK,TRIM2#

main45287-0K050-C0iGUN112,120,121,122,13#,TGN110,121..THP..(L,S)..(ARL,GEN,IDN,LA,PH,TH)202404-202407

BLACK,TRIM2#,3#

main45287-0K060-C0iGUN135..6FC..(L,S)..TH202404-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#

main45287-0K060-C0iGUN135..H202404-202407

BLACK,TRIM2#

main45287-0K150-C0iGUN136..SCB;GUN122,135,TGN120,121,136..SA202402-202412

BLACK,TRIM2#

main45287-0K160-C0iGUN136..XTR..SA202402-202410

BLACK,TRIM2#

main45287-0K200-C0iXPN135202404-202407

BLACK,TRIM2#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-KK010iGUN122,126,TGN121..PKN202308-202412

main45025-KK020iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(AGTP,SAP)202308-202410

main45025-KK030iXPN135;GUN120,125,126,13#..XTR..THP..6FC202308-202410

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0K150iGUN122,TGN121..PKN202308-202410

main45203-0K160iGUN122,TGN121..LHD..SA202308-202410

main45203-0K180iGUN125,135..KEN202308-202412

main45203-0K190iGUN125,126,135,TGN126..LHD..THP202308-202410

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-0K120iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(AGTP,SAP)202308-202410

main45206-0K140iGUN125..MA202308-202412

45219YOKE, STEERING SLIDING

main45219-0K090iGUN122,126,TGN121..PKN202308-202412

45250COLUMN ASSY, STEERING

main45250-0K060iGUN125,126,135..SCB..SA;GUN122,136,LAN125,TGN120,121,136..SCB..(LA,SA)202308-202412

main45250-0K070iGUN125..S..GEN;GUN120,122,136..XTR..THP;GUN125,135..THP..(L,S)..(ARL,IDN,LA,TH);GUN126,TGN121,126..THP..(L,S)..(ARL,LA)202308-202407

STEERING COLUMN-WITH(TILT & TELESCOPIC,WITHOUT(*SES))

main45250-0K070iGUN125,135..XTR..SA;GUN125,135,TGN126..AGTP;GUN126..(AGTP,SAP)..6F..(H,L)202308-202410

main45250-0K080iGUN136..6F202308-202410

main45250-0K080iGUN125,126,135..THP..6F..H202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main45250-0K110iGUN135..6FC..(L,S)..TH202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main45250-0K110iGUN126,136..XTR..6FC..SA202308-202410

main45250-0K150iXPN135202311-202407

45286BCOVER, STEERING COLUMN, UPR

main45286-0K040-C0iGUN112,12#,13#,TGN110,121,126..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407

BLACK,TRIM2#,3#

main45286-0K040-C0iGUN11#,122,125,126,TGN11#,12#..GCC202308-202408

BLACK,TRIM2#

main45286-0K060-C0iXPN135202311-202407

BLACK,TRIM2#

main45286-0K080-C0iGUN125,126,135,TGN126,136..AGTP202311-202410

BLACK,TRIM2#

main45286-0K090-C0iGUN125,135..KEN202402-202412

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iGUN125..MA202308-202412

main45897-12020iGUN135..THP..6F;GUN126..6F..H..TH;GUN126..THP..(L,S);GUN135..6FC..(L,S)..TH;GUN11#,120,121,122,125,136,TGN11#,12#..THP202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

8401

90105T0266

main90105-T0266

90119T0168

main90119-T0168

90119T0441

main90119-T0441

90164T0004

main90164-T0004

90178T0104

main90178-T0104

16 parts on this diagram · 2 diagrams in section
