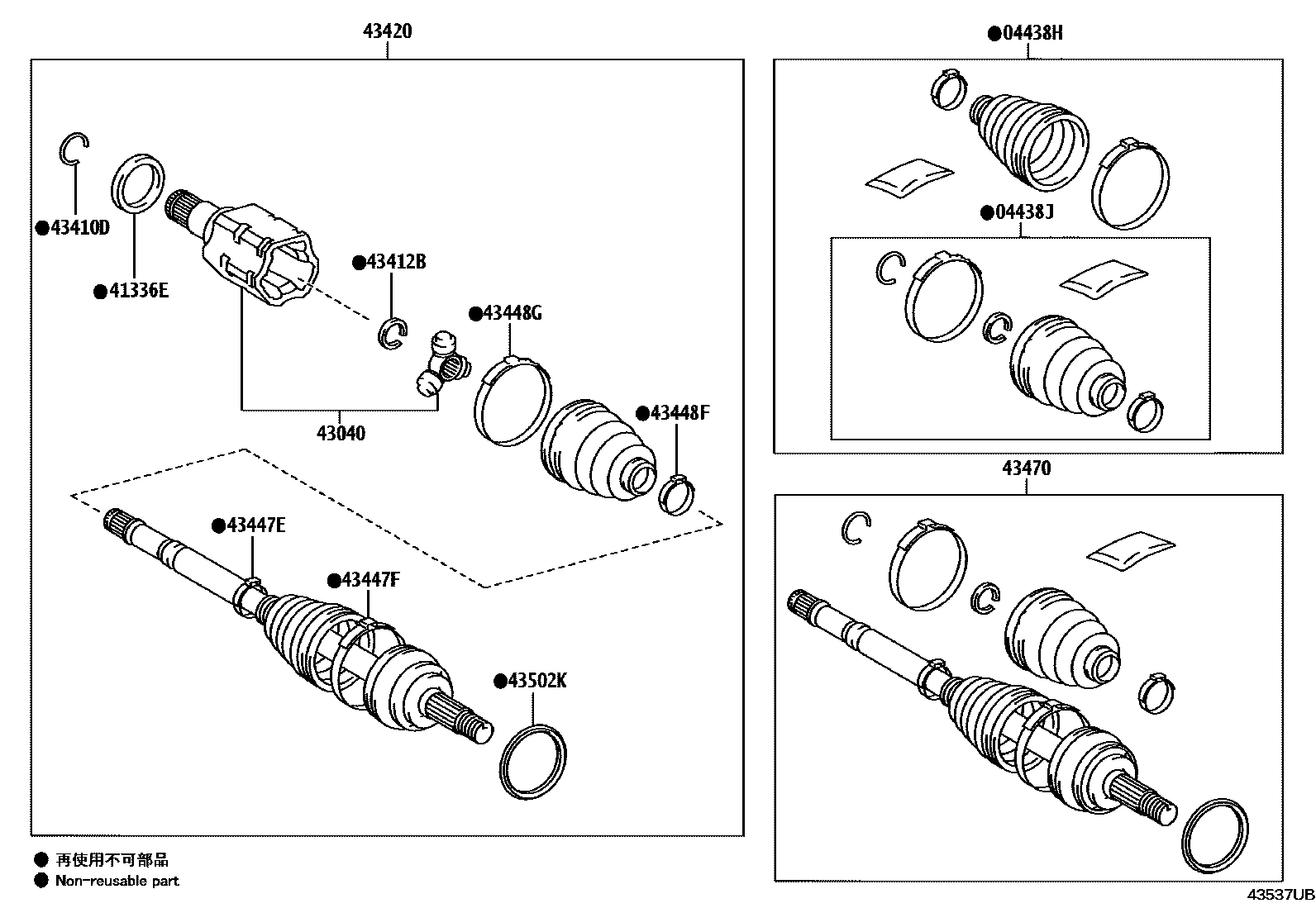

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-0D581iGUN125..MA202309-202408

main04427-0K050iGUN125,126,TGN126..AGTP202311-202410

main04427-0K063iGUN125,126,TGN126..THP202308-202404

sub04427-0K090

main04427-0K072iGUN125,126,LAN125..KEN,SA202402-202410

main04427-0K090iGUN126..PKN202404-202407

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-0D420iGUN125..MA202309-202408

main04437-0K050iGUN125,126,TGN126..AGTP202311-202410

main04437-0K061iGUN125,126,TGN126..THP202308-202407

main04437-0K071iGUN125,126,LAN125..KEN,SA202402-202410

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-0K051iGUN125,126,TGN126..AGTP202311-202410

main41336-0K071iGUN125,126,LAN125..SA202402-202412

main41336-0K080iGUN125,126,TGN126..THP202308-202408

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-0K050iGUN125,126,TGN126..AGTP202311-202410

main43040-0K060iGUN125,126,TGN126..THP202308-202407

main43040-0K070iGUN125,126,LAN125..SA202402-202412

main43040-0K080iGUN125..MA202309-202408

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-0K060iGUN125,126,TGN126..AGTP202311-202410

main43430-0K070iGUN126..PKN202308-202407

main43430-0K080iGUN125,126,LAN125..SA202402-202412

main43430-0K130iGUN125..MA202309-202408

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main43425-0K040iGUN125..MA202308-202408

main43425-0K080iGUN125,126,TGN126..AGTP202311-202410

main43425-0K110iGUN125,126,LAN125..SA202402-202412

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-0K130iGUN125,126,TGN126..AGTP202311-202410

main43425-0K140iGUN125..MA202308-202408

main43425-0K150iGUN125,126,LAN125..SA202402-202412

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-0K060iGUN125,126,TGN126..AGTP202311-202410

main43430-0K070iGUN126..PKN202308-202407

main43430-0K080iGUN125,126,LAN125..SA202402-202412

main43430-0K130iGUN125..MA202309-202408

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K070iGUN125..MA202308-202408

main42345-0K090iGUN125,126,TGN126..AGTP202311-202410

main42345-0K150iGUN125,126,LAN125..SA202402-202412

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K100iGUN126..PKN202308-202408

main42345-0K120iGUN125,126,TGN126..AGTP202311-202410

main42345-0K160iGUN125..KEN202402-202412

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K040iGUN125..MA202308-202408

main42345-0K060iGUN125,126,TGN126..AGTP202311-202410

main42345-0K140iGUN125,126,LAN125..SA202402-202412

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K010iGUN125,126,TGN126..THP202308-202408

main42345-0K030iGUN125,126,TGN126..AGTP202311-202410

main42345-0K130iGUN125,126,LAN125..SA202402-202412

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-09Y50iGUN125,126,TGN126..AGTP202311-202410

main43460-09Y63iGUN125,126,TGN126..THP202308-202407

main43460-09Y70iGUN125,126,LAN125..KEN,SA202402-202410

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-T0001iGUN125,126,TGN126..THP202308-202412

14 parts on this diagram · 2 diagrams in section
