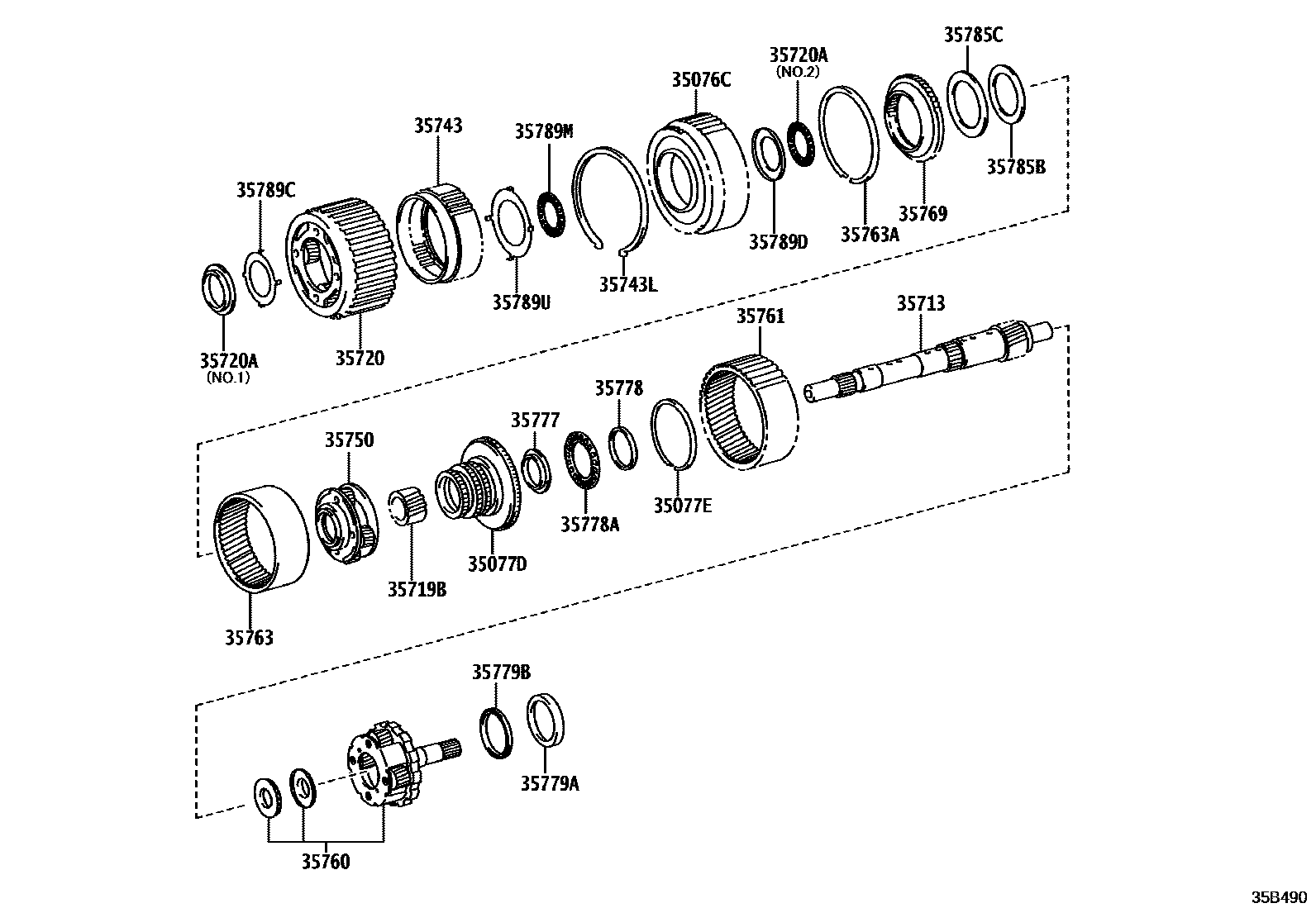

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
main35076-71010iGUN120,125,126,13#,TGN121..THP..6FC¥5,800202308-202410 35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
main35077-0K010iGUN120,125,126,13#,TGN121..THP..6FC202308-202407 (L)
main35077-71010iGUN126,135..THP..6FC¥8,200202308-202407 (J)
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
main90520-99073iGUN126..6FC..(GCC,TH);GUN135..6FC..(L,S)..TH¥190202308-202407 TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
main90520-T0293iGUN120,125,126,13#,TGN121..THP..6FC202308-202407 TYPE B:REFER 35-01
35713SHAFT, INTERMEDIATE
main35713-0K010iGUN120,125,135,TGN121..THP..6FC202308-202407 (L)
main35713-60100iGUN126,136..6FC..SA¥10,000202308-202410 35719BGEAR, PLANETARY SUN
main35719-71010iGUN125,126,13#..6FC..SA¥4,250202308-202410 35720GEAR ASSY, FRONT PLANETARY
main35720-71010iGUN120,125,126,13#,TGN121..THP..6FC¥30,300202308-202410 35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
main90374-37009iGUN125,126,13#..6FC..SA¥1,120202308-202410 NO.1:REFER ILLUST.
main90374-63002iGUN120,125,126,13#,TGN121..THP..6FC¥1,800202308-202410 NO.2:REFER ILLUST.
35743GEAR, FRONT PLANETARY RING
main35743-71010iGUN120,125,126,13#,TGN121..THP..6FC¥8,500202308-202410 35743LRING, SNAP (FOR PLANETARY RING GEAR)
main90520-99160iGUN120,125,126,13#,TGN121..THP..6FC¥190202308-202410 35750GEAR ASSY, CENTER PLANETARY
main35750-71010iGUN120,125,126,13#..THP..6FC¥20,200202308-202410 35760GEAR ASSY, REAR PLANETARY
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01
35761GEAR, REAR PLANETARY RING
main35761-71010iGUN120,125,126,13#,TGN121..THP..6FC¥8,500202308-202410 35763GEAR, CENTER PLANETARY RING
main35763-71010iGUN120,125,126,13#,TGN121..THP..6FC¥6,700202308-202410 35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
main90520-99161iGUN120,125,126,13#,TGN121..THP..6FC¥190202308-202410 35769FLANGE, PLANETARY RING GEAR, CTR
main35769-71010iGUN120,125,126,13#,TGN121..THP..6FC¥1,220202308-202410 35777RACE, THRUST BEARING, NO.7
main35777-60010iGUN120,125,126,13#,TGN121..THP..6FC¥520202308-202410 35778RACE, THRUST BEARING, NO.8
main35778-60010iGUN120,125,126,13#,TGN121..THP..6FC¥1,020202308-202410 35778ABEARING, THRUST NEEDLE ROLLER
main90374-32010iGUN120,125,135,TGN121..THP..6FC¥1,320202308-202410 35779ARACE, THRUST BEARING, NO.9
main35779-60011iGUN120,125,126,13#,TGN121..THP..6FC¥670202308-202410 35779BBEARING, THRUST NEEDLE ROLLER
main90374-43007iGUN125,126,13#..6FC..SA¥960202308-202410 35785BRACE, THRUST BEARING, NO.4
main35785-60010iGUN120,125,126,13#,TGN121..THP..6FC¥1,300202308-202410 35785CBEARING, THRUST NEEDLE ROLLER
main90374-55004iGUN120,125,126,13#,TGN121..THP..6FC¥1,200202308-202410 35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)
main35789-71030iGUN120,125,126,13#,TGN121..THP..6FC¥640202308-202410 35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
main35789-71050iGUN120,125,126,13#,TGN121..THP..6FC¥700202308-202410 35789MBEARING, THRUST NEEDLE ROLLER
main90374-63002iGUN120,125,126,13#,TGN121..THP..6FC¥1,800202308-202410 35789URACE, THRUST BEARING
main35789-71040iGUN125,126,13#..6FC..SA¥850202308-202410
