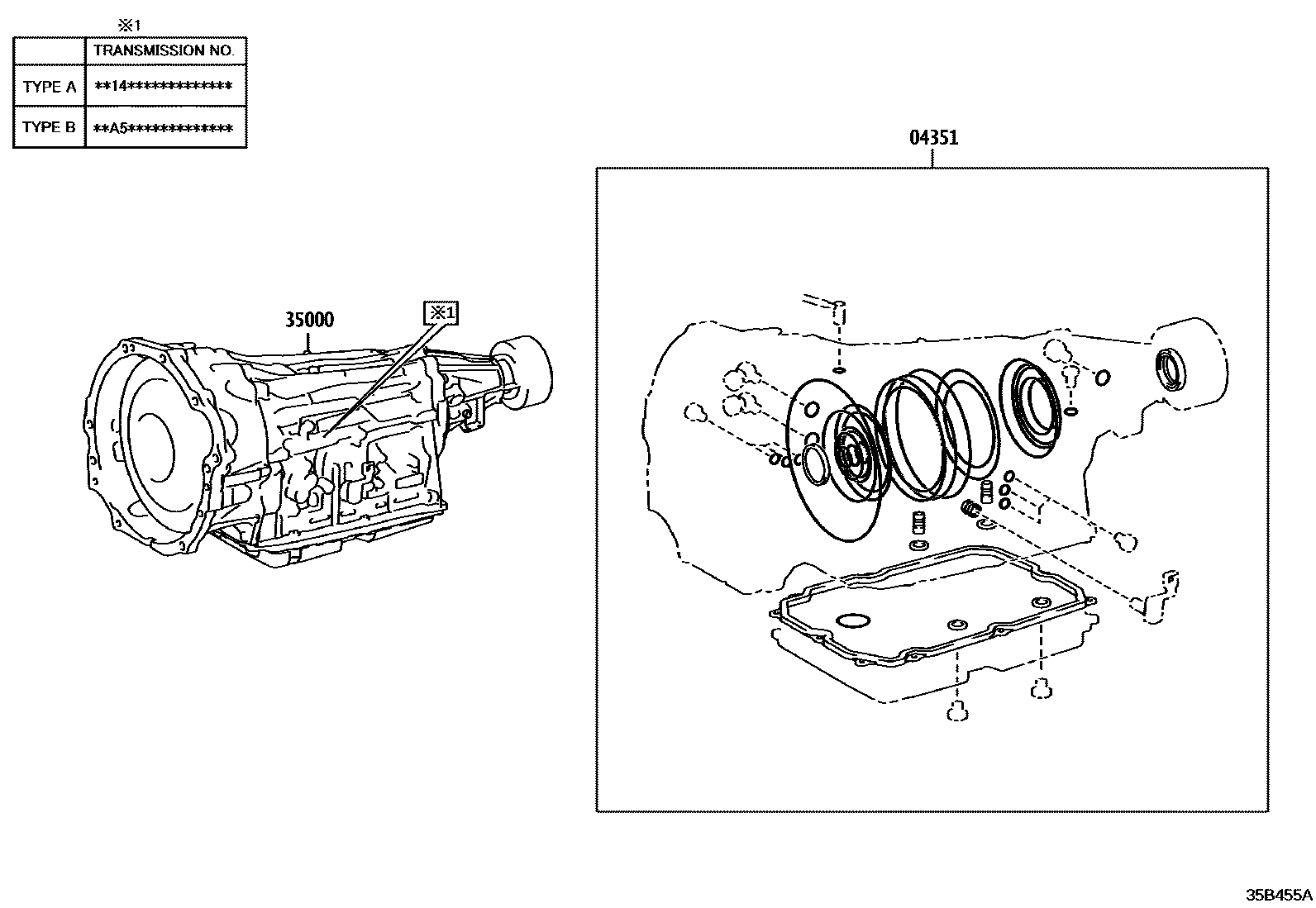

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1AC60E 0002 1AC60F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-71220iGUN135..6FC..TH202308-202407

TYPE B:REFER ILLUST.

main04351-71220iGUN135..6FC..TH202308-202410

TYPE A:REFER ILLUST.

main04351-71220iGUN135..6FC..TH202308-202407

TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER ILLUST.

main04351-71230iGUN126..THP..6FC¥16,100202308-202407

TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER ILLUST.

main04351-71230iGUN125,126..THP..6FC¥16,100202308-202407

TYPE B:REFER ILLUST.

main04351-71230iGUN125,126..THP..6FC¥16,100202308-202410

TYPE A:REFER ILLUST.

main04351-71241iGUN136..ARL¥16,100202308-202407

TYPE B:REFER ILLUST.

main04351-71241iGUN136..6FC..SA¥16,100202402-202410

TYPE A:REFER ILLUST.

35000TRANSMISSION ASSY, AUTOMATIC

main35000-0K030iGUN125..6FC..IV3202308-202407

AC60F,TYPE B:REFER ILLUST.

main35000-0K050iGUN120,135..6FC..TH202308-202407

AC60E,TYPE B:REFER ILLUST.

main35000-0K080iTGN121..6FC202308-202407

AC60E,TYPE B:REFER ILLUST.

main35000-0K110iGUN136..ARL202308-202407

AC60E,TYPE B:REFER ILLUST.

main35000-0K130iGUN126..THP..6FC202308-202407

AC60F,TYPE B:REFER ILLUST.

main35000-71340iGUN126..THP..6FC202308-202410

AC60F,TYPE A:REFER ILLUST.

main35000-71390iGUN120202308-202410

AC60E,TYPE A:REFER ILLUST.

main35000-71420iGUN125..6FC..CBU¥517,000202402-202410

AC60F,TYPE A:REFER ILLUST.

main35000-71520iGUN136..6FC..SA202402-202410

AC60E,TYPE A:REFER ILLUST.

2 parts on this diagram · 2 diagrams in section
