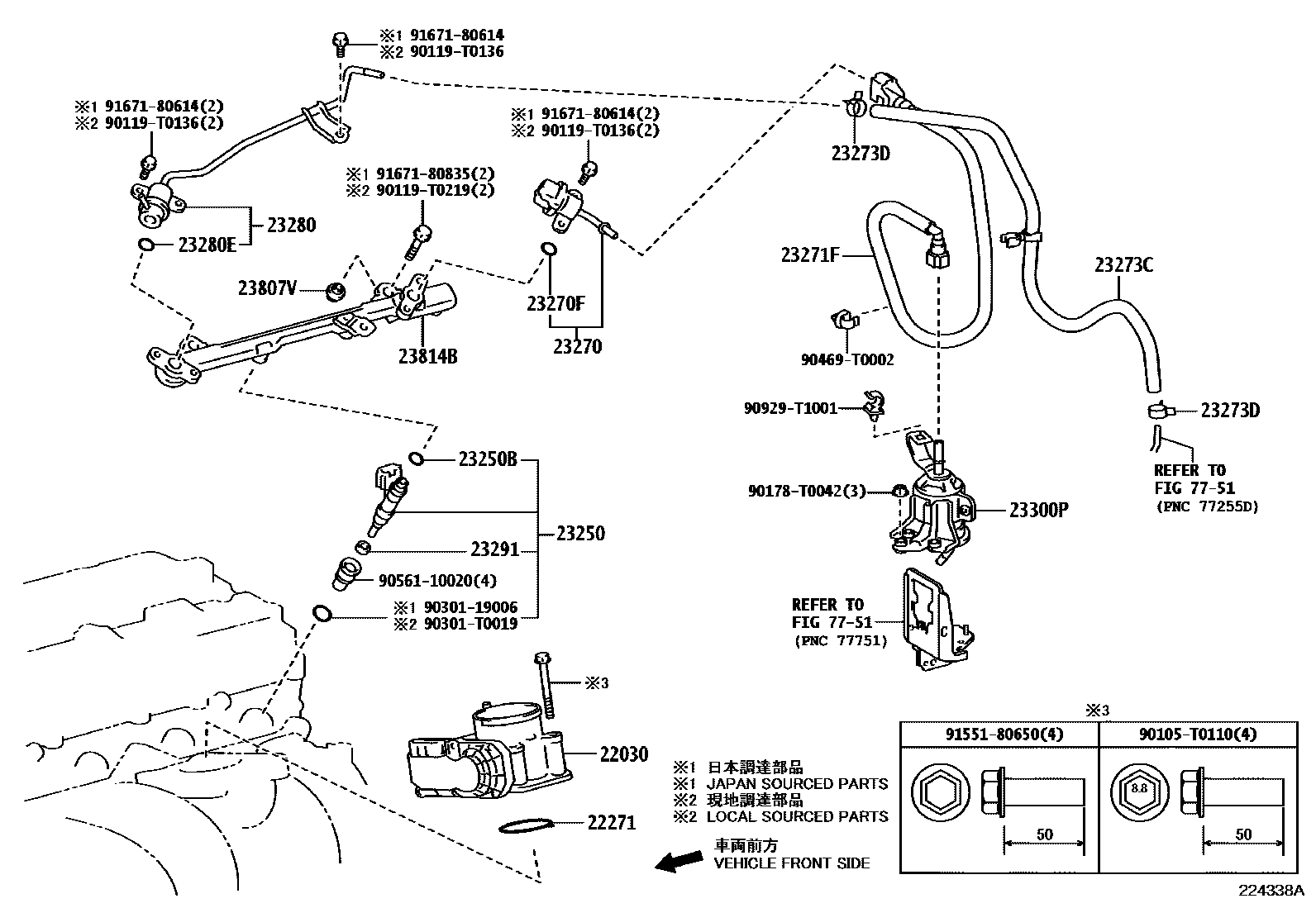

FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
(L)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
(L)
(J)
(J)
22271GASKET, THROTTLE BODY
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
23250INJECTOR ASSY, FUEL
IDN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDNSOURCED PARTS
THA SOURCED PARTS
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
(L)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
(J)
JAPAN SOURCED PARTS
23250BRING, O(FOR FUEL INJECTOR)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
(L)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
23270FRING, O(FOR PULSATION DAMPER)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
23271FHOSE, FUEL
23273CHOSE, FUEL, NO.2
23273DCLIP(FOR FUEL HOSE NO.2)
23280REGULATOR ASSY, FUEL PRESSURE
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
23291INSULATOR, INJECTOR VIBRATION
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
THA SOURCED PARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
IDN SOURCED PARTS
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
JAPAN SOURCED PARTS
23300PFILTER, FUEL(FOR EFI)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
(L)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L)
(J)
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(J)
23814BPIPE, FUEL DELIVERY
(L)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
(J)
7751
90105T0110
main90105-T0110
90119T0136
main90119-T0136
90119T0219
main90119-T0219
90178T0042
main90178-T0042
9030119006
main90301-19006
90301T0019
main90301-T0019
90469T0002
main90469-T0002
9056110020
main90561-10020
90929T1001
main90929-T1001
9155180650
main91551-80650
9167180614
main91671-80614
9167180835
main91671-80835
28 parts on this diagram · 1 diagram in section
