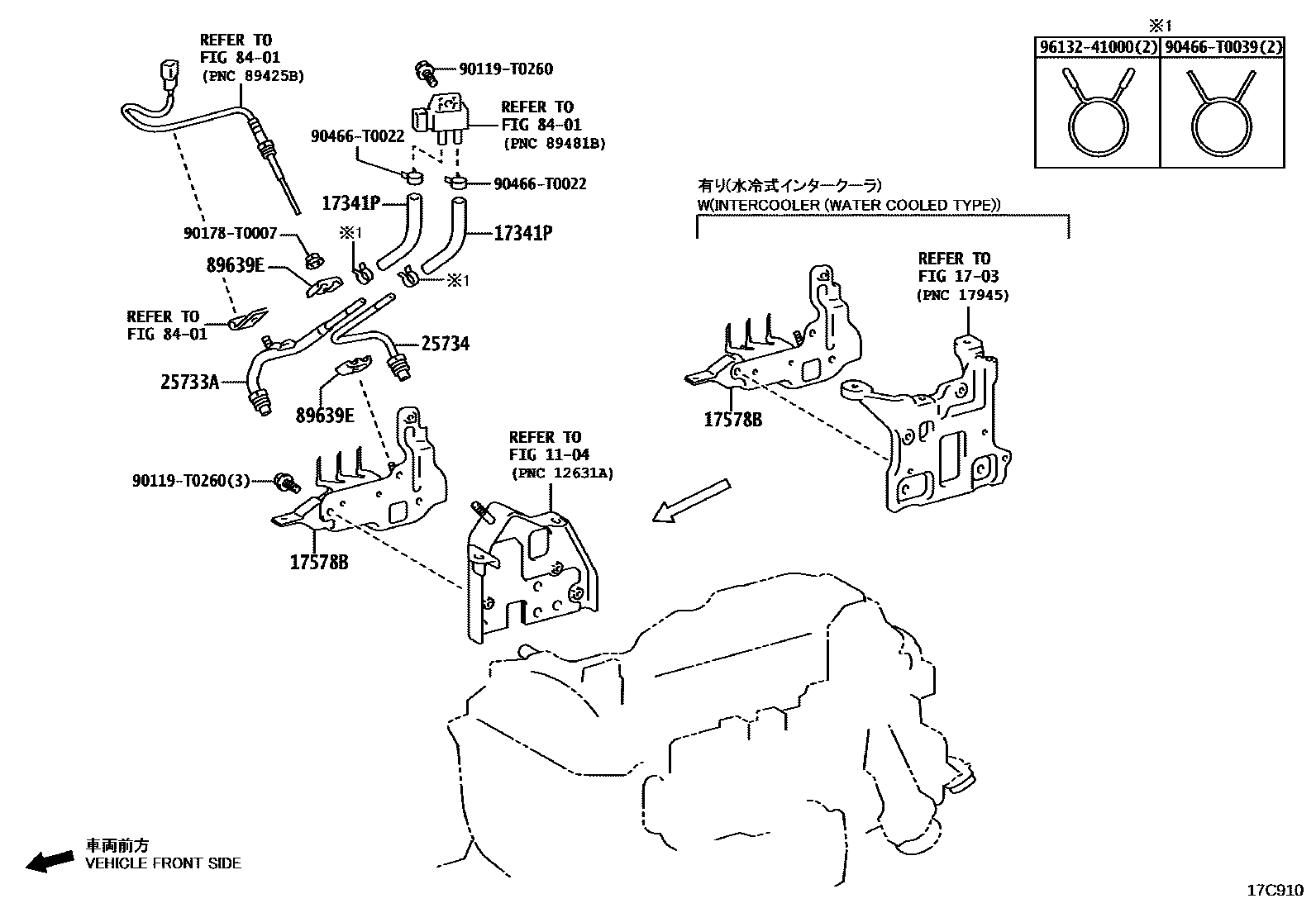

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1104

1703

17341PHOSE, AIR

main17341-0E010i2GDFTV..GUN125..ARL;2GDFTV..GUN112..L..GCC;1GDFTV,2GDFTV..GUN111,126,13#..ARL,GCC202308-202407

THA SOURCED PARTS

main17341-0E010i2GDFTV..GUN125..AGTP;1GDFTV,2GDFTV..GUN126,135..BZAG202308-202410

main17341-0E030i1GDFTV,2GDFTV..GUN125,126,13#..ARL202308-202407

IND SOURCED PARTS

17578BCLAMP, PIPE

main17578-0E020i2GDFTV..GUN125..ARL;2GDFTV..GUN112..L..GCC;1GDFTV,2GDFTV..GUN111,126,13#..ARL,GCC202308-202410

25733APIPE, VACUUM, NO.1

main25733-0E010i2GDFTV..GUN125..AGTP;1GDFTV,2GDFTV..GUN126,135..BZAG202308-202410

25734PIPE, VACUUM, NO.2

main25734-0E010i2GDFTV..GUN125..ARL;2GDFTV..GUN112..L..GCC;1GDFTV,2GDFTV..GUN111,126,13#..ARL,GCC202308-202410

8401

89639ECLAMP

main89639-0K010iGUN125..ARL;GUN112..L..GCC;GUN111,126,13#..ARL,GCC202308-202410

90119T0260

main90119-T0260

90178T0007

main90178-T0007

90466T0022

main90466-T0022

90466T0039

main90466-T0039

9613241000

main96132-41000

13 parts on this diagram · 4 diagrams in section
