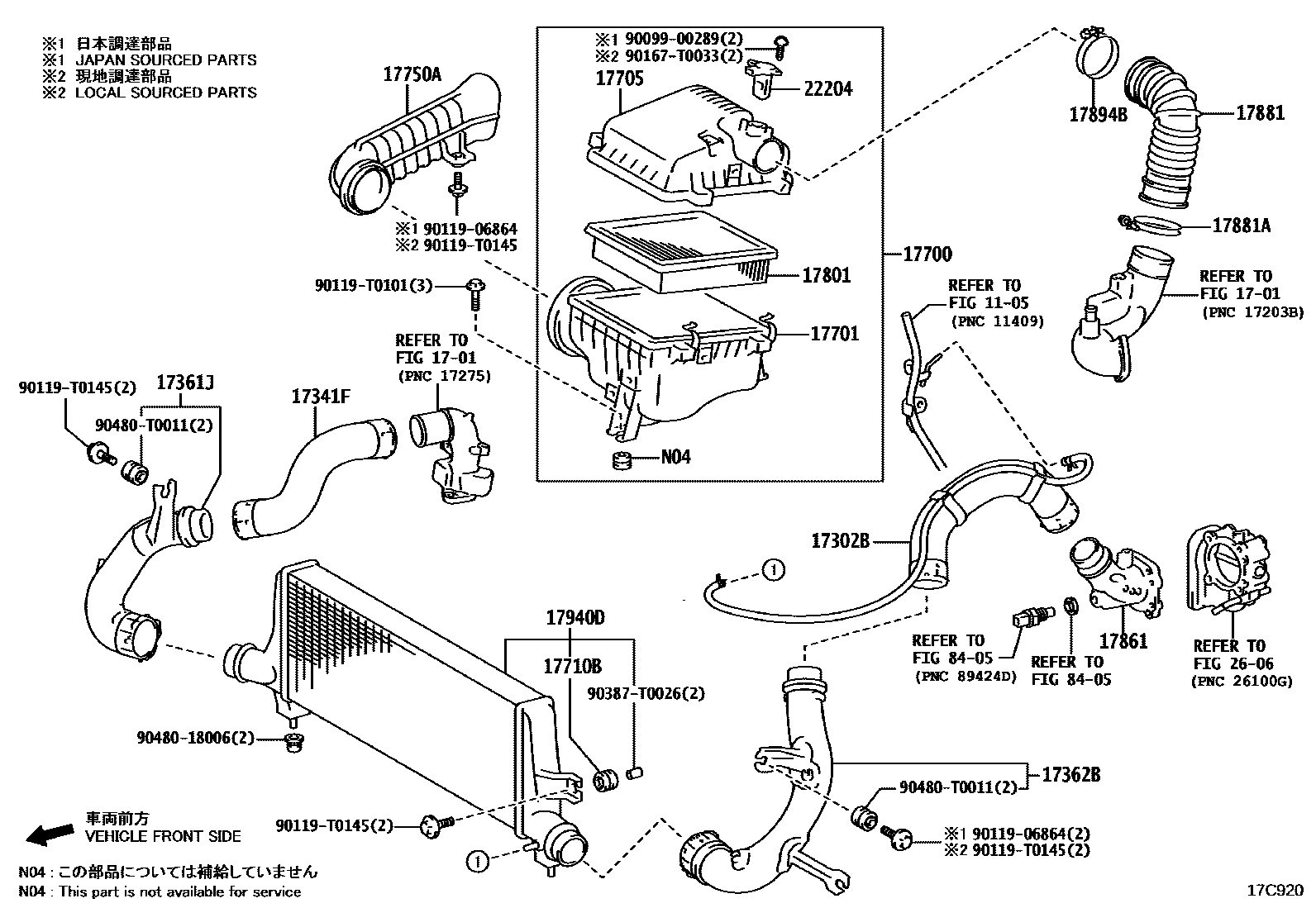

AIR CLEANER
1105
1701
17302BHOSE SUB-ASSY, AIR
17341FHOSE, AIR, NO.1
17361JTUBE, AIR, NO.1
17362BTUBE, AIR, NO.2
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17750AINLET ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
THA SOURCED PARTS
main17861-0E030i2GDFTV..GUN125,135..ARL;2GDFTV..GUN135..6FC..TH;1GDFTV,2GDFTV..GUN120,121,122,126,136..ARL,TH202308-202407
IND SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17881HOSE, AIR CLEANER, NO.1
THA SOURCED PARTS
THA SOURCED PARTS
ZAF SOURCED PARTS
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17940DINTERCOOLER ASSY
22204METER SUB-ASSY, INTAKE AIR FLOW
2606
8405
9009900289
main90099-00289
9011906864
main90119-06864
90119T0101
main90119-T0101
90119T0145
main90119-T0145
90167T0033
main90167-T0033
90387T0026
main90387-T0026
9048018006
main90480-18006
90480T0011
main90480-T0011
28 parts on this diagram · 3 diagrams in section
