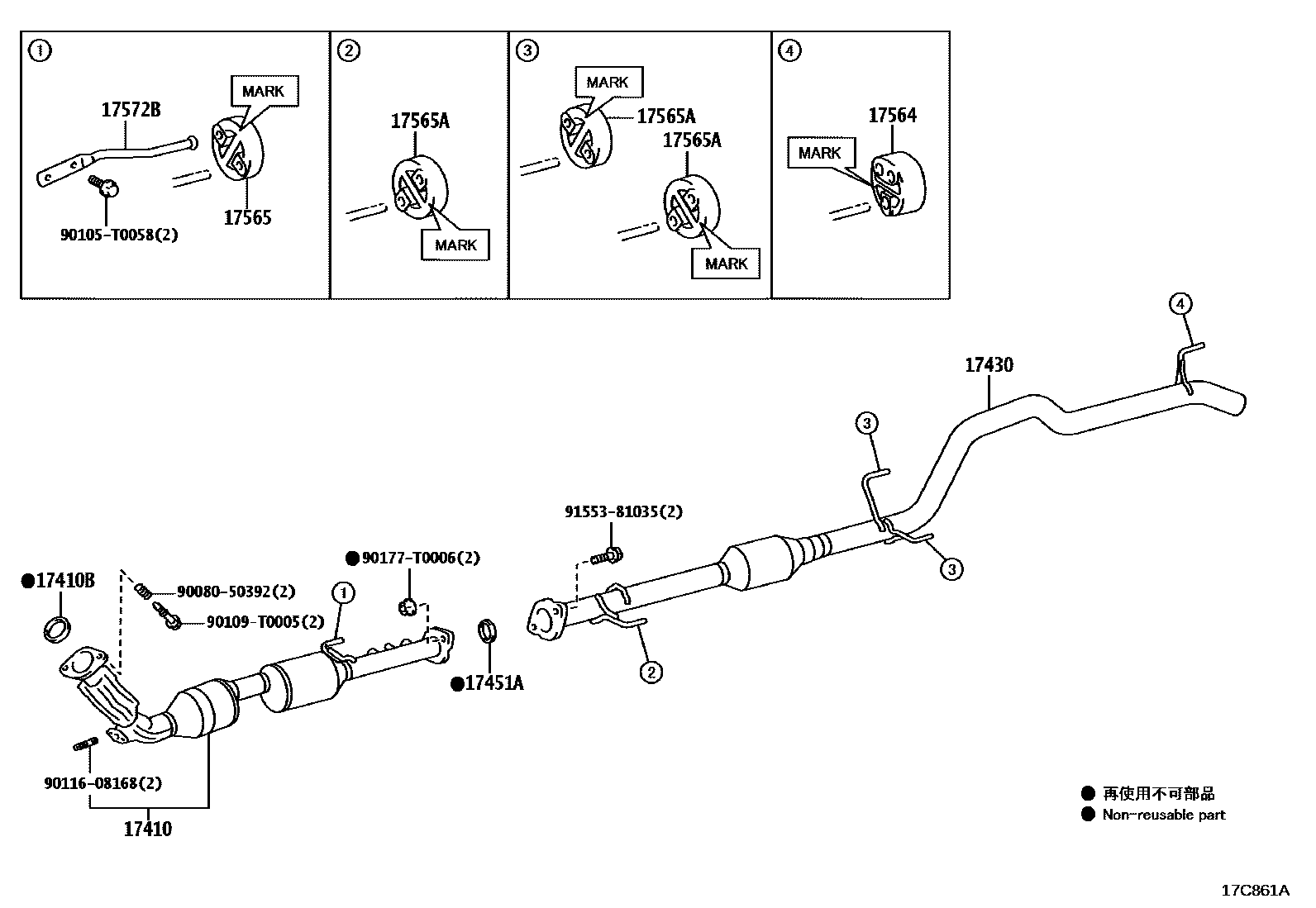

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
GCC SPEC EURO4 2022MY
ECUADOR SPEC
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
AFRICA SPEC
SYRIA SPEC
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SYRIA SPEC
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
TYPE A:REFER ILLUST.
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
CAMBODIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
EXPORT FROM SA&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFERILLUST.
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFERILLUST.
TYPE A:REFER ILLUST.
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
CHILE SPEC
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-WITHOUT
17564SUPPORT,EXHAUST PIPE, NO.4
MARK:17565-0L100
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK:17565-0L090
MARK:17565-0L090
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK:17565-0L090
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK:17565-0L090
EXHAUST EMISSION CONTROL-WITHOUT
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main17565-0P240i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN122,125,126,13#,LAN125,TGN120,121,136..SA202308-202410
NO MARK
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),NO MARK
17565ASUPPORT, EXHAUST PIPE, NO.4
MARK:17565-0L090
main17565-0P240i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN122,125,126,13#,LAN125,TGN120,121,136..SA202308-202412
NO MARK
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-WITHOUT
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035
16 parts on this diagram · 5 diagrams in section
