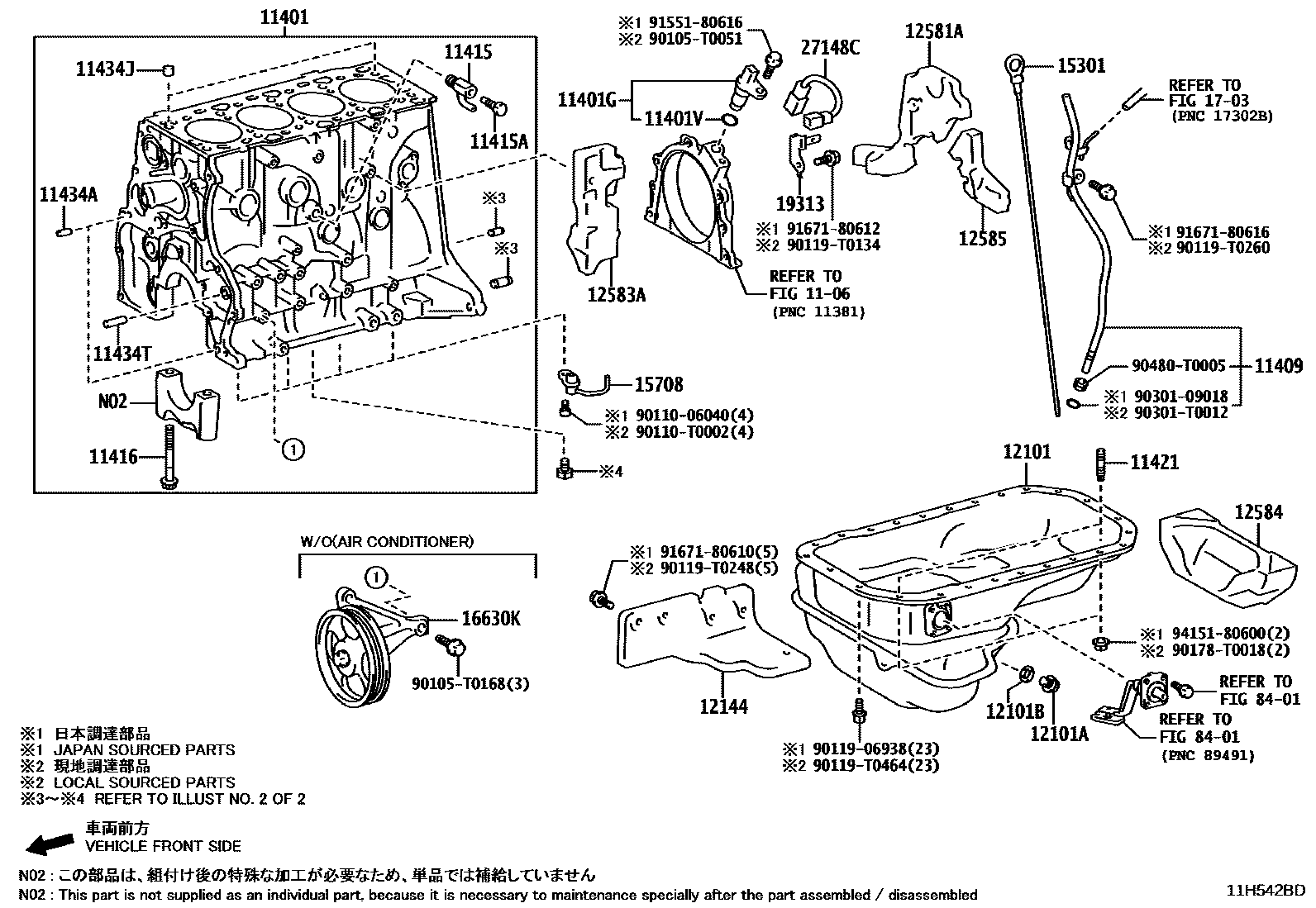

CYLINDER BLOCK
1106
11401BLOCK SUB-ASSY, CYLINDER
sub11401-09852
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
11401GSENSOR, CRANK POSITION
11401VO-RING, CRANK POSITION SENSOR
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
11409GUIDE SUB-ASSY, OIL LEVEL GAGE
THA SOURCED PARTS
IND SOURCED PARTS
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
(J)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
(L)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(J)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
(L)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
(L)
11421BOLT, STUD(FOR OIL PAN)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8,GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
L=18,OD=8,EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
L=18,OD=8,(J)
L=18,OD=8,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
L=18,OD=8,(L)
L=8,OD=11
11434JPIN, RING (FOR CYLINDER HEAD SET)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(L)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
(L)
THA SOURCED PARTS
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),THA SOURCED PARTS
IDN SOURCED PARTS
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
(J)
(L)
12101PAN SUB-ASSY, OIL
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IDN SOURCED PARTS
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDNSOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
main12101-11120i1GDFTV..GUN126..AGTP,SAP;1GDFTV,2GDFTV..GUN122,125,136..KEN,SA;2GDFTV..GUN135..(AGTP,KENP,SAP)..(KEN,LA,SA)202308-202408
JAPAN SOURCED PARTS
sub12101-35100
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
sub12101-35100
12101APLUG(FOR OIL PAN DRAIN)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
(L)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90080-43030i1GDFTV,2GDFTV..GUN125,126,135..AGTP;1GDFTV,2GDFTV..GUN125,126,13#..6FC..SA202308-202410
(L)
(J)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(L)
12144SILENCER, OIL PAN COVER
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
THA SOURCED PARTS
IND SOURCED PARTS
main12144-11010i1GDFTV..GUN126..TH;2GDFTV..GUN125..ARL,GCC,GEN,TH;1GDFTV,2GDFTV..GUN112,120,121,122,135..THP202308-202408
JAPAN SOURCED PARTS
main12144-11010i1GDFTV..GUN126..TH;2GDFTV..GUN125..ARL,GCC,GEN,TH;1GDFTV,2GDFTV..GUN112,120,121,122,135..THP202308-202408
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
12581AINSULATOR, CYLINDER BLOCK, NO.1
THA SOURCED PARTS
IND SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12583AINSULATOR, CYLINDER BLOCK, NO.3
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12584INSULATOR, CYLINDER BROCK, NO.4
ZAF SOURCED PARTS
THA SOURCED PARTS
12585INSULATOR, CYLINDER BROCK, NO.5
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
15301GAGE SUB-ASSY, OIL LEVEL
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
THA SOURCED PARTS
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
15708NOZZLE SUB-ASSY, OIL, NO.1
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
(L)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
(L)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(J)
16630KPULLEY ASSY, IDLER
main16630-0E010i2GDFTV..GUN112,122..L..GCC;1GDFTV,2GDFTV..GUN111,125,126..THP..(GCC,LA)202308-202410
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main16630-0E010i2GDFTV..GUN112,122..L..GCC;1GDFTV,2GDFTV..GUN111,125,126..THP..(GCC,LA)202308-202410
FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
1703
19313BRACKET, CRANK POSITION SENSOR HARNESS
THA SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
27148CWIRE, CONNECTING
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
8401
90105T0051
main90105-T0051
90105T0168
main90105-T0168
9011006040
main90110-06040
90110T0002
main90110-T0002
9011906938
main90119-06938
90119T0134
main90119-T0134
90119T0248
main90119-T0248
90119T0260
main90119-T0260
90119T0464
main90119-T0464
90178T0018
main90178-T0018
9030109018
main90301-09018
90301T0012
main90301-T0012
90480T0005
main90480-T0005
9155180616
main91551-80616
9167180610
main91671-80610
9167180612
main91671-80612
9167180616
main91671-80616
9415180600
main94151-80600
45 parts on this diagram · 6 diagrams in section
