CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main86790-0K141iGUN125..H;GUN125,126,135..(H,S)..TH202208-202307

BACK MONITOR-WITH(*PVM)

main86790-0K171iGUN126,135..6FC..H..TH202208-202307

MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)

86790DCAMERA ASSY, TELEVISION, RR

main86790-0K050iGUN13#..XTR..(ARL,SA);GUN125,126,135..XTR..H202208-202401

sub86790-0K051

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0K160iGUN125..H;GUN125,126,135..(H,S)..TH202208-202307

BACK MONITOR-WITH(*PVM)

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0K150iGUN125..H;GUN125,126,135..(H,S)..TH202208-202307

BACK MONITOR-WITH(*PVM)

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-71010iGUN126,135..6FC..H..TH202208-202307

MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)

main86791-71030iGUN125..H202208-202307

BACK MONITOR-WITH(*PVM)

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-71020iGUN126,135..6FC..H..TH202208-202307

MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)

main86791-71040iGUN125..H202208-202307

BACK MONITOR-WITH(*PVM)

86792CCOMPUTER, PARKING ASSIST

main86792-71070iGUN125,135..S..TH202208-202307

AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM)

main86792-71090iGUN125..H202208-202307

BACK MONITOR-WITH(*PVM)

main86792-71130iGUN126,135..6FC..H..TH202208-202307

MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)

86799WIRE, TELEVISION CAMERA

main86799-0K040iGUN126,135..6FC..H..TH202208-202307

MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)

90119T0134

main90119-T0134

9016750063

main90167-50063

90178T0018

main90178-T0018

9167380616

main91673-80616

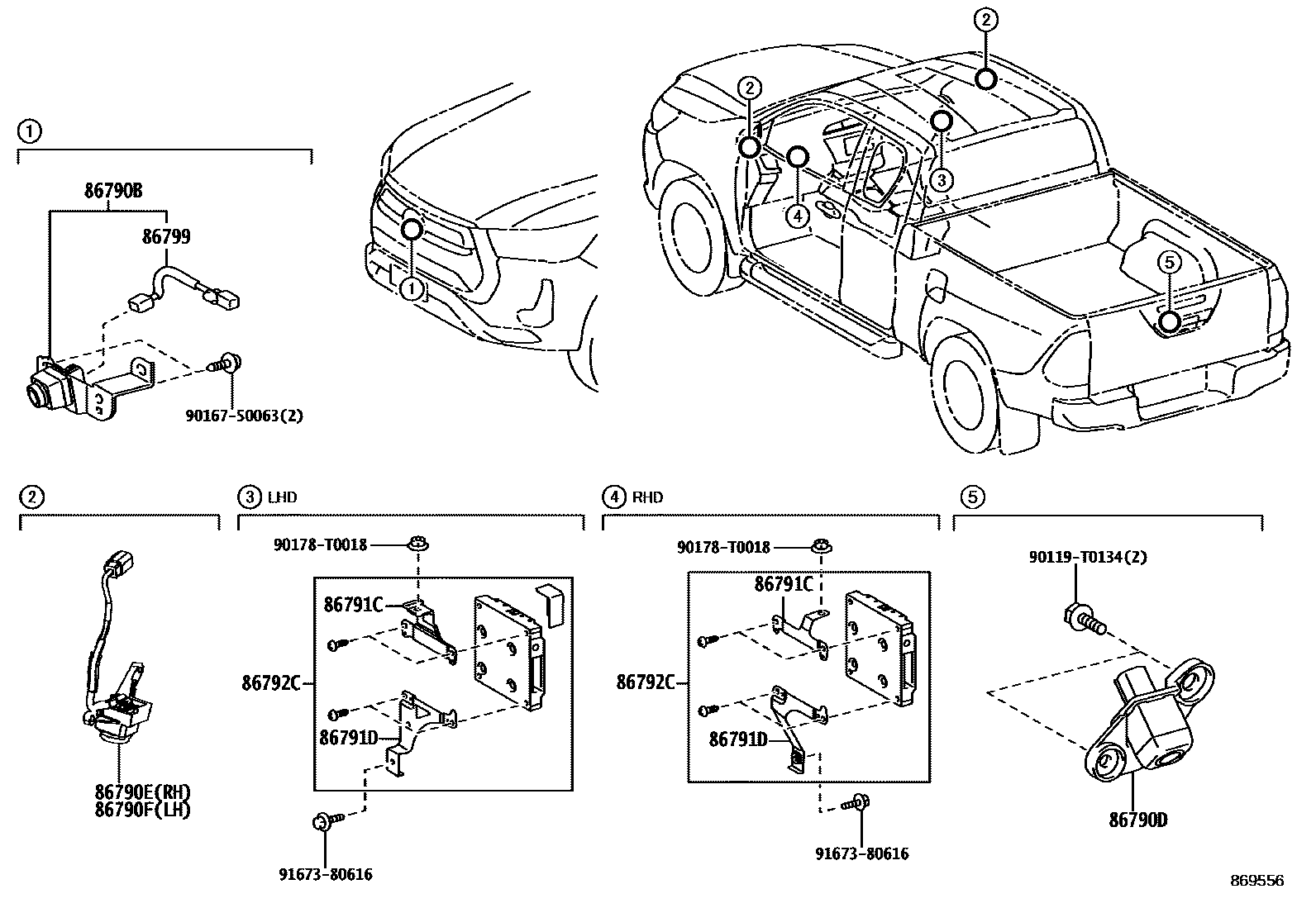

12 parts on this diagram · 1 diagram in section
