SWITCH & RELAY & COMPUTER
1708
83520GAGE ASSY,OIL PRESSURE SENDER
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main83520-60060iGUN122..LHD..GEN;GUN125..6FC..GEN;GUN125..BZAG..IV3;GUN125..THP..(ARL,GCC,LA,TH);GUN11#,120,121,122,126,13#..ARL,GCC,PH,TH202208-202308
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
main83520-60060iGUN122..LHD..GEN;GUN125..6FC..GEN;GUN125..BZAG..IV3;GUN125..THP..(ARL,GCC,LA,TH);GUN11#,120,121,122,126,13#..ARL,GCC,PH,TH202208-202310
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
ASEAN GENERAL SPEC,DENSO
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),DENSO
DENSO
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),DENSO
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),DENSO
CENTRAL AND SOUTH AMERICA SPEC,DENSO
IRAQ SPEC,DENSO
EXHAUST EMISSION CONTROL-WITHOUT,DENSO
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),DENSO
DENSO
EXHAUST EMISSION CONTROL-WITHOUT,YAZAKI
CENTRAL AND SOUTH AMERICA SPEC,YAZAKI
IRAQ SPEC,YAZAKI
ASEAN GENERAL SPEC,YAZAKI
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),YAZAKI
YAZAKI
YAZAKI
89425SENSOR, EXHAUST GAS TEMPERATURE
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4
EXHAUST EMISSION CONTROL-WITHOUT
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
89439JBRACKET, SENSOR, NO.2
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-WITHOUT
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
89463ASENSOR, NITROGEN OXIDES
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),REAR
EXHAUST EMISSION CONTROL-WITHOUT,REAR
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),REAR
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),REAR
REAR
89467BSENSOR, AIR FUEL RATIO
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-WITHOUT
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
89481BSENSOR, DIFFERENTIAL PRESSURE
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
89491SENSOR, ENGINE OIL LEVEL
GCC SPEC EURO4 2022MY
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
8271571200BRACKET,WIRING HARNESS CLAMP
main82715-71200
8946A71030BRACKET, EXHAUST SENSOR CLAMP
main8946A-71030
8946AKK010BRACKET, EXHAUST SENSOR CLAMP
main8946A-KK010
90105T0066
main90105-T0066
90119T0134
main90119-T0134
90119T0260
main90119-T0260
90119T0287
main90119-T0287
90178T0007
main90178-T0007
90178T0018
main90178-T0018
9155180612
main91551-80612
9167380820
main91673-80820
9415180600
main94151-80600
9622110706
main96221-10706

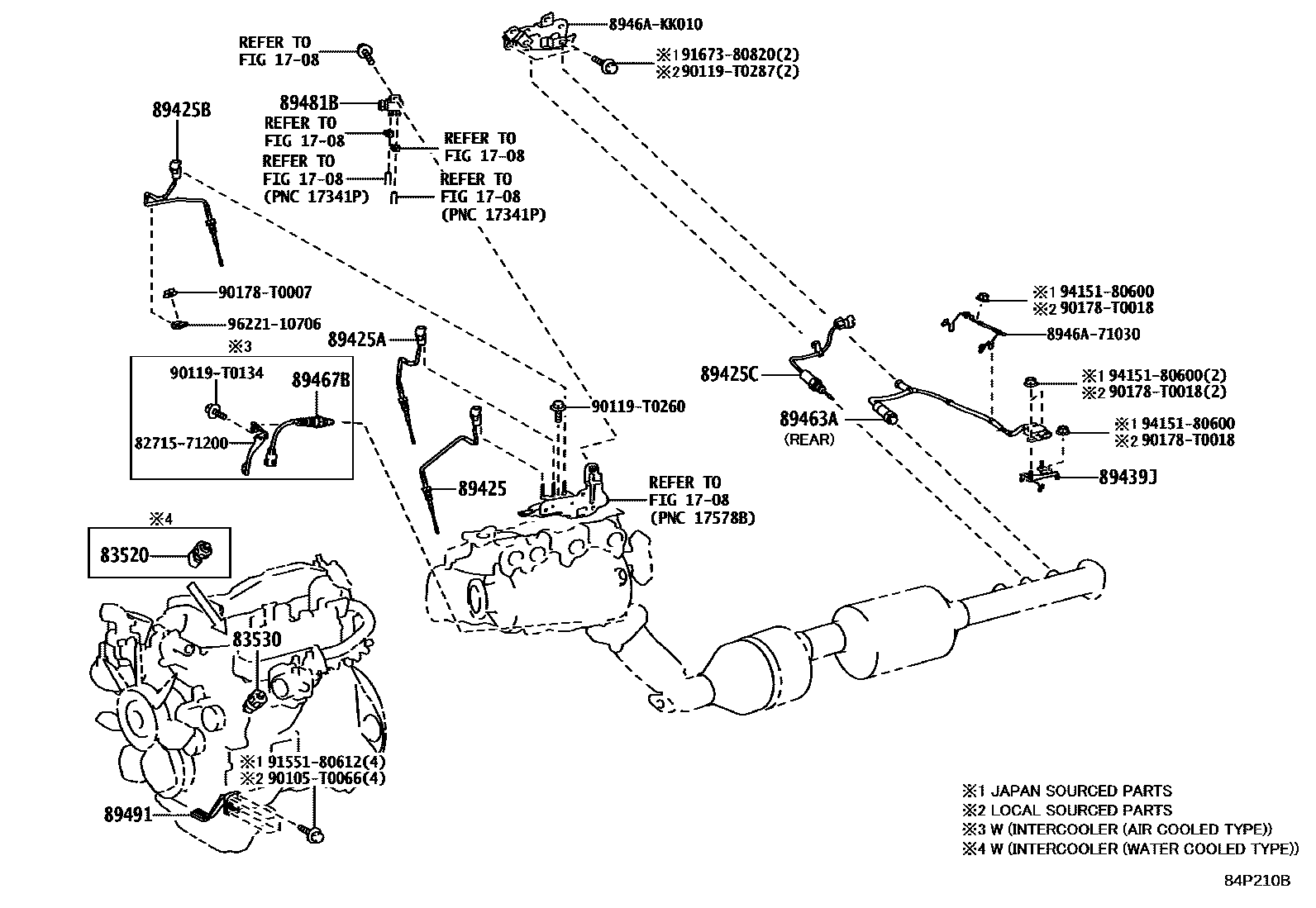

25 parts on this diagram · 19 diagrams in section
