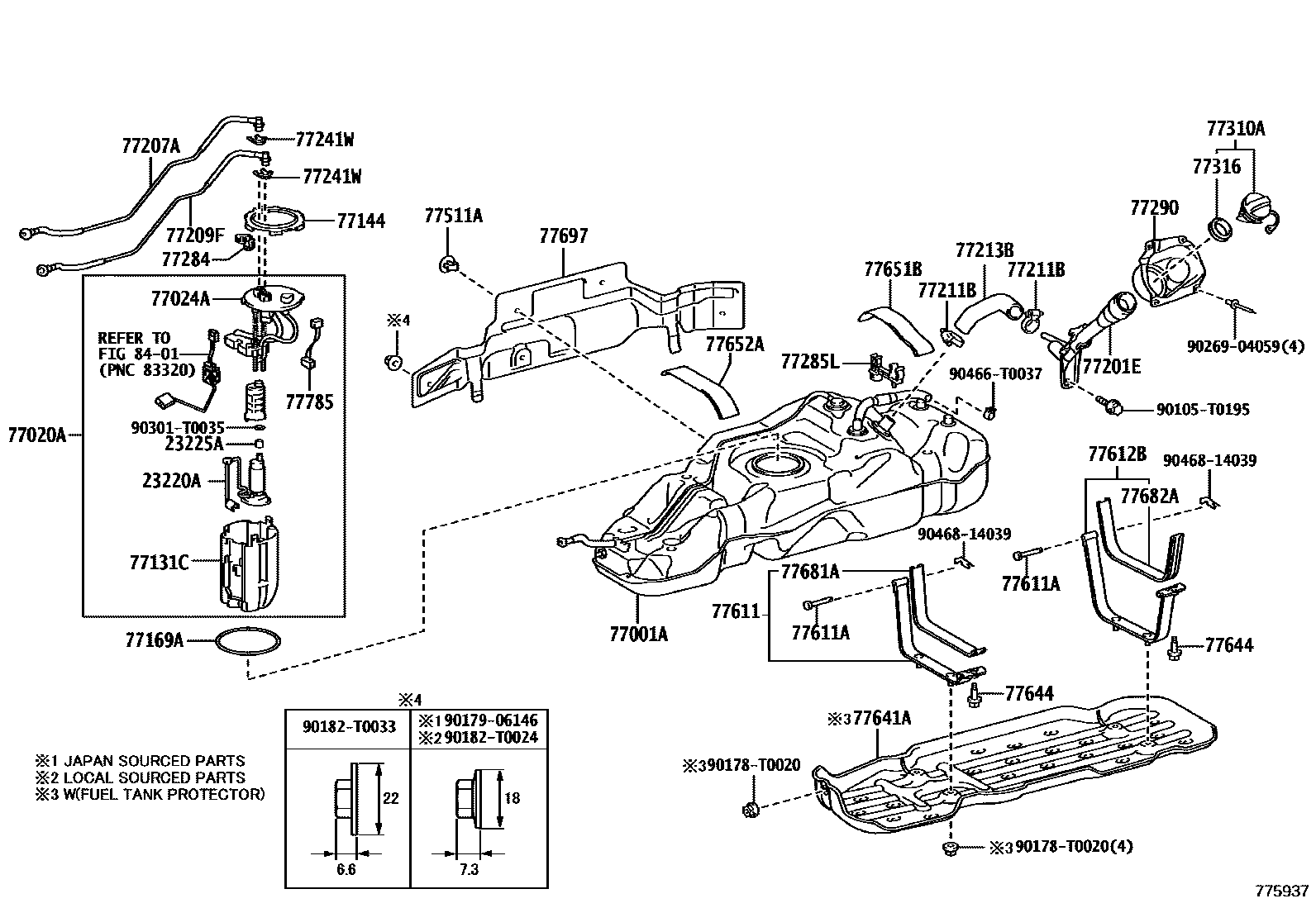

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
77001ATANK SUB-ASSY, FUEL
REAR DECK-FLAT TYPE
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
main77201-KK070iGUN122,125,126,13#,LAN125..(KENP,PKNP,SAP,THP)..(ARL,GCC,GEN,KEN,LA,PKN,SA)..CBU202208-202502
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT
77207ATUBE SUB-ASSY, FUEL RETURN
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
main77213-KK010iGUN122..THP..5F..IV3;GUN125,126,135,TGN121,126..THP;GUN120,121,122,136,TGN120..THP..CBU202208-202307
REAR DECK-FLAT TYPE&TAIL GATE-WITHOUT
77241WCLIP, TUBE JOINT
77284CLAMP, FUEL TUBE
77285LCLAMP, FUEL TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77511ABRACKET, FUEL TANK
77611BAND, FUEL TANK
main77601-KK050iTGN121..GCC;GUN125,126,135..THP;GUN122,136,TGN120,126..THP..(ARL,GCC,LA)202208-202307
77611APIN (FOR FUEL TANK BAND)
77612BBAND, FUEL TANK, NO.2
77641APROTECTOR, FUEL TANK, NO.1
main77641-KK010iTGN121..GCC;GUN125,126,135..THP;GUN122,136,TGN120,126..THP..(ARL,GCC,LA)202208-202307
77644BOLT, FUEL TANK
(J),TYPE B:REF ILL.
(L),TYPE B:REF ILL.
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77681ASEAT, FUEL TANK BAND
77682ASEAT, FUEL TANK BAND, NO.2
77697INSULATOR, FUEL TANK HEAT, NO.1
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
77785HARNESS, FUEL PUMP
8401
90105T0195
main90105-T0195
90178T0020
main90178-T0020
9017906146
main90179-06146
90182T0024
main90182-T0024
90182T0033
main90182-T0033
9026904059
main90269-04059
90301T0035
main90301-T0035
90466T0037
main90466-T0037
9046814039
main90468-14039
41 parts on this diagram · 16 diagrams in section
