MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75770MOULDING ASSY, HOOD, FRONT
PLATED,RADIATOR GRILLE-CHROME PLATED
PLATED
main75770-0K341iGUN112,120,121,122,TGN110,121..ARL,GEN,IDN,PH,PKN,TH;GUN125,126,135..SCB..(MAP,PKNP,THP)..L..(ARL,GEN,IDN,LA,MA,PKN,TH)¥1,920202208-202406
NO PAINT REQ.
NO PAINT REQ.
PLATED
NO PAINT REQ.
NO PAINT REQ.,RADIATOR GRILLE-MATERIAL COLOR
NO PAINT REQ.,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.
NO PAINT REQ.,MLM PACKAGE
NO PAINT REQ.,POWER SUPPLY PACKAGE
NO PAINT REQ.,COLD CHAIN PACKAGE
NO PAINT REQ.,FRONT BUMPER-PAINTED(MLM)
NO PAINT REQ.
main75770-0K401iGUN125..L..KEN;GUN125..LHD..L..SA;GUN125..RHD..SCB..6F..SA;GUN122,135,LAN125,TGN120,121..L..(KEN,SA)202301-202403
NO PAINT REQ.
PLATED
PLATED,FRONT BUMPER-PAINTED(MLM)&RADIATOR GRILLE-CHROME PLATED
PLATED,TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,RADIATOR GRILLE-PAINTING
NO PAINT REQ.
NO PAINT REQ.,EXPORT FROM SA&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM
PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PLATED))
PLATED
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,RADIATOR GRILLE-MATERIAL COLOR
75777EPAD, HOOD FRONT MOULDING
main53393-0K010iGUN125,126,135..SCB..(AGTP,MAP,PKNP,THP);GUN11#,120,121,122,TGN11#,12#,136..AGTP,PKNP,THP¥2,400202208
main53393-0K020iGUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..(KEN,SA)202301-202403
FRONT BUMPER-PAINTED(MLM)
FRONT BUMPER-PAINTED(MLM)&RADIATOR GRILLE-CHROME PLATED
MLM PACKAGE
POWER SUPPLY PACKAGE
COLD CHAIN PACKAGE
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&RADIATOR GRILLE-CHROME PLATED
TIRE & DISC WHEEL-265/65R17 STEEL
EXPORT FROM SA&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REARBUMPER-WITH(*RUPD(PLATED))
75851AMOULDING, ROCKER PANEL, FRONT RH
main75851-0K020iTGN126..THP..LA;GUN125,126..SCB..L..(ARL,IDN,TH);GUN11#,120,121,122,135,TGN11#,120,121..SCB..THP202208-202307
STEP & STEP COVER-WITHOUT
main75851-0K080iGUN125..SCB..L..SA;GUN125..LHD..SCB..S;GUN122,126,135,LAN125,TGN120,121,136..SCB..(L,S)..SA202301-202401
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
75852AMOULDING, ROCKER PANEL, FRONT LH
main75852-0K020iTGN126..THP..LA;GUN125,126..SCB..L..(ARL,IDN,TH);GUN11#,120,121,122,135,TGN11#,120,121..SCB..THP202208-202307
STEP & STEP COVER-WITHOUT
main75852-0K080iGUN125..SCB..L..SA;GUN125..LHD..SCB..S;GUN122,126,135,LAN125,TGN120,121,136..SCB..(L,S)..SA202301-202401
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
75866ARETAINER, ROCKER PANEL MOULDING
main76923-52021iGUN125..S..GEN;GUN125,126..L..(ARL,IDN,TH);GUN135,TGN126..THP..(ARL,LA);GUN11#,120,121,122,TGN11#,120,121..THP¥220202208-202401
STEP & STEP COVER-WITHOUT
76924GRETAINER, ROCKER PANEL MOULDING
main76924-0K010iTGN126..THP..LA;GUN125,126..SCB..L..(ARL,IDN,TH);GUN11#,120,121,122,135,TGN11#,120,121..SCB..THP¥160202208-202310
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
90159T0009
main90159-T0009
9046707215
9046708224
90467T0050
main90467-T0050

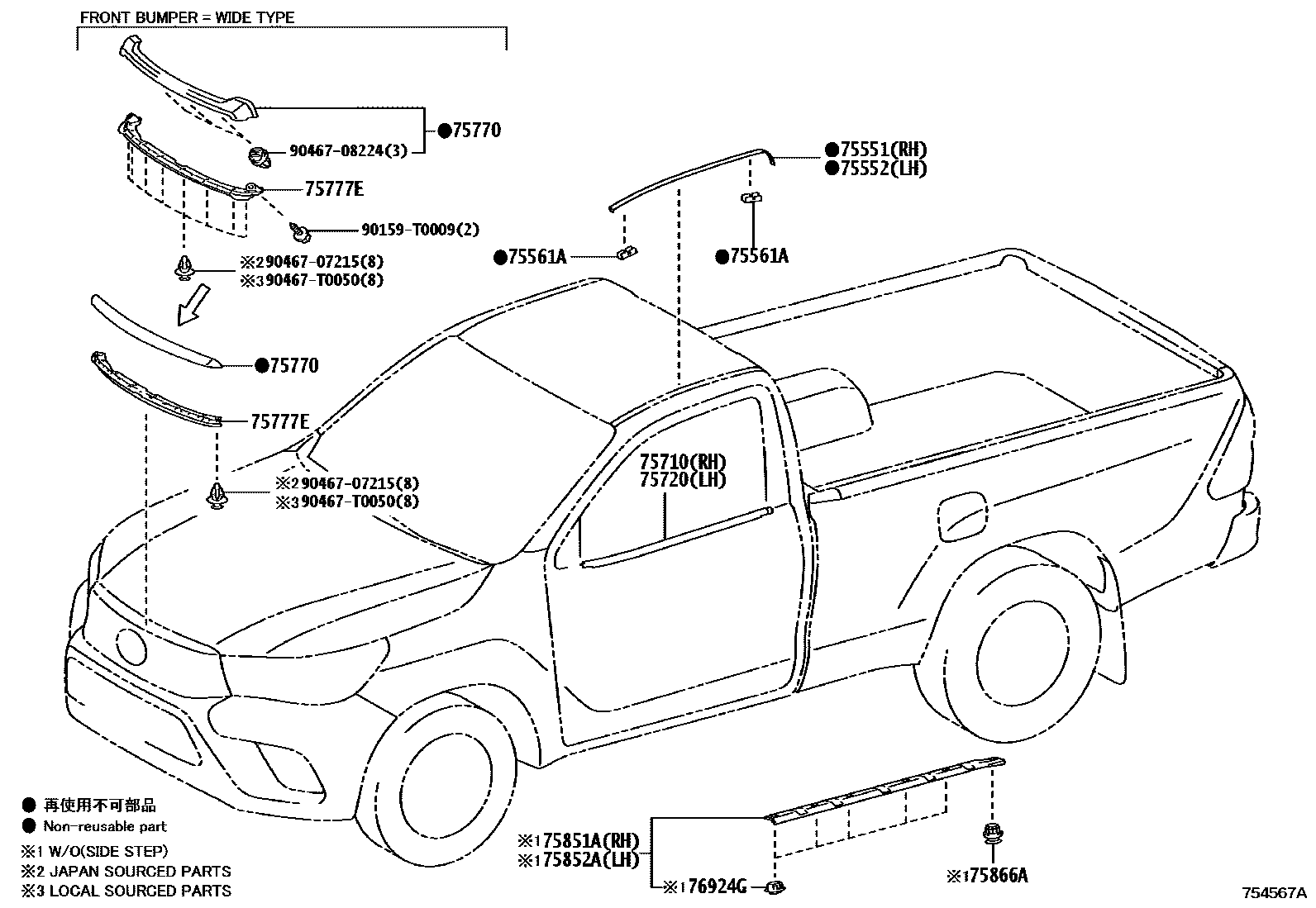

15 parts on this diagram · 3 diagrams in section
