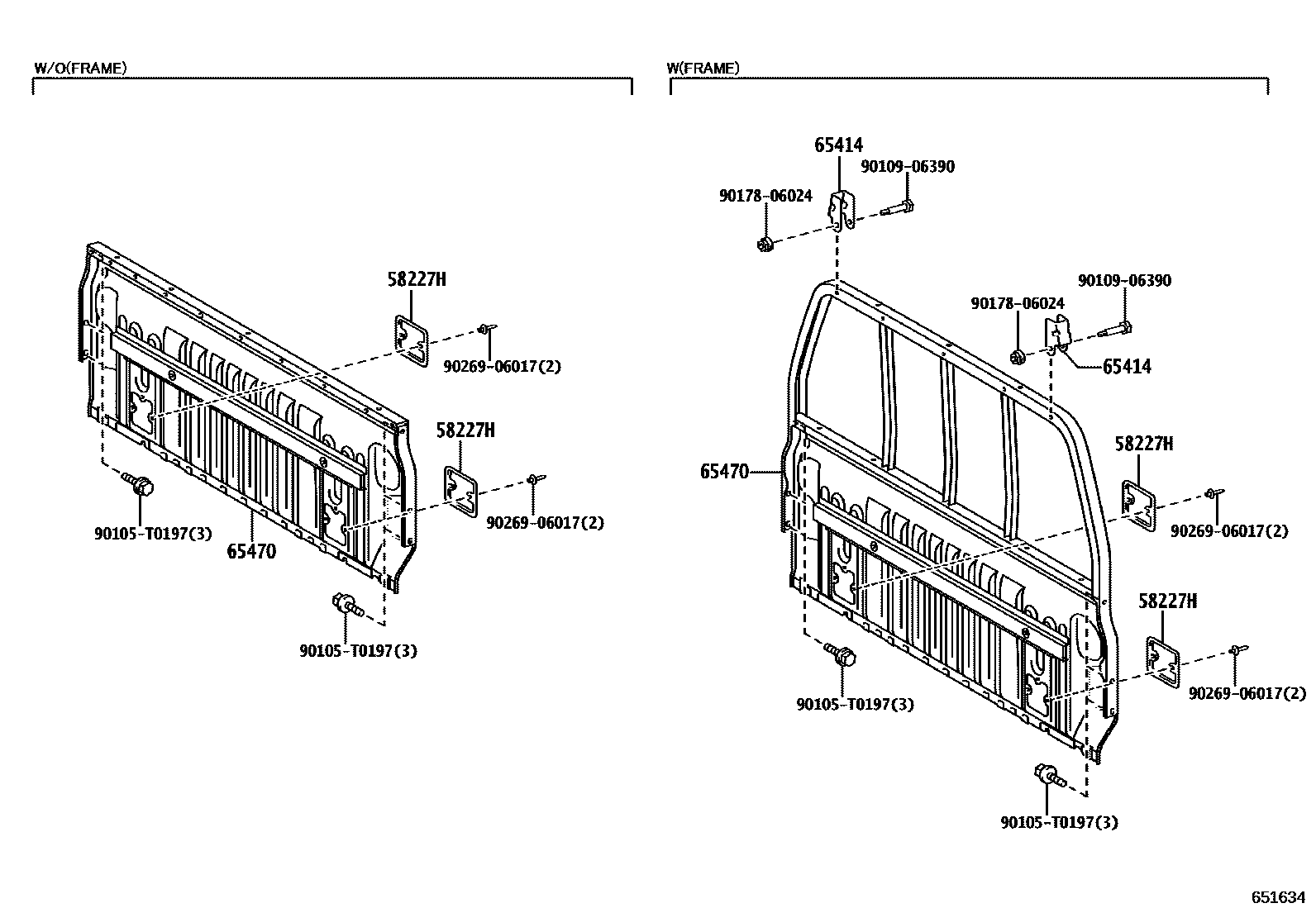

REAR BODY GUARD FRAME & TAIL GATE

0001 1HEADER BOARD & GUARD FRAME 0002 1TAIL GATE(LATCH TYPE) 0003 1TAIL GATE(LOCK TYPE)

58227HCOVER, HEADER PANEL, NO.1

main58227-0K031iGUN125..MA¥680202208-202403

65414STOPPER, GUARD FRAME

main65414-KK010iGUN112,125,TGN110..IDN;GUN120,122..SCB..TH..CBU202208-202307

DECK GUARD FRAME-WITH(STOPPER)

main65414-KK010iGUN125..MA202208-202403

65470BOARD ASSY, HEADER

main65470-KK010iGUN125,126,13#..XTR..SA¥29,300202208-202401

main65470-KK020iGUN120,122..SCB..TH..CBU202208-202307

DECK GUARD FRAME-WITHOUT

main65470-KK020iTGN121..PKN202208-202401

main65470-KK030iGUN125..MA202208-202403

main65470-KK030iGUN112,125,TGN110..IDN;GUN120,122..SCB..TH..CBU202208-202307

DECK GUARD FRAME-WITH(STOPPER)

90105T0197

main90105-T0197

9010906390

main90109-06390¥120

9017806024

main90178-06024

9026906017

main90269-06017¥140

7 parts on this diagram · 3 diagrams in section
