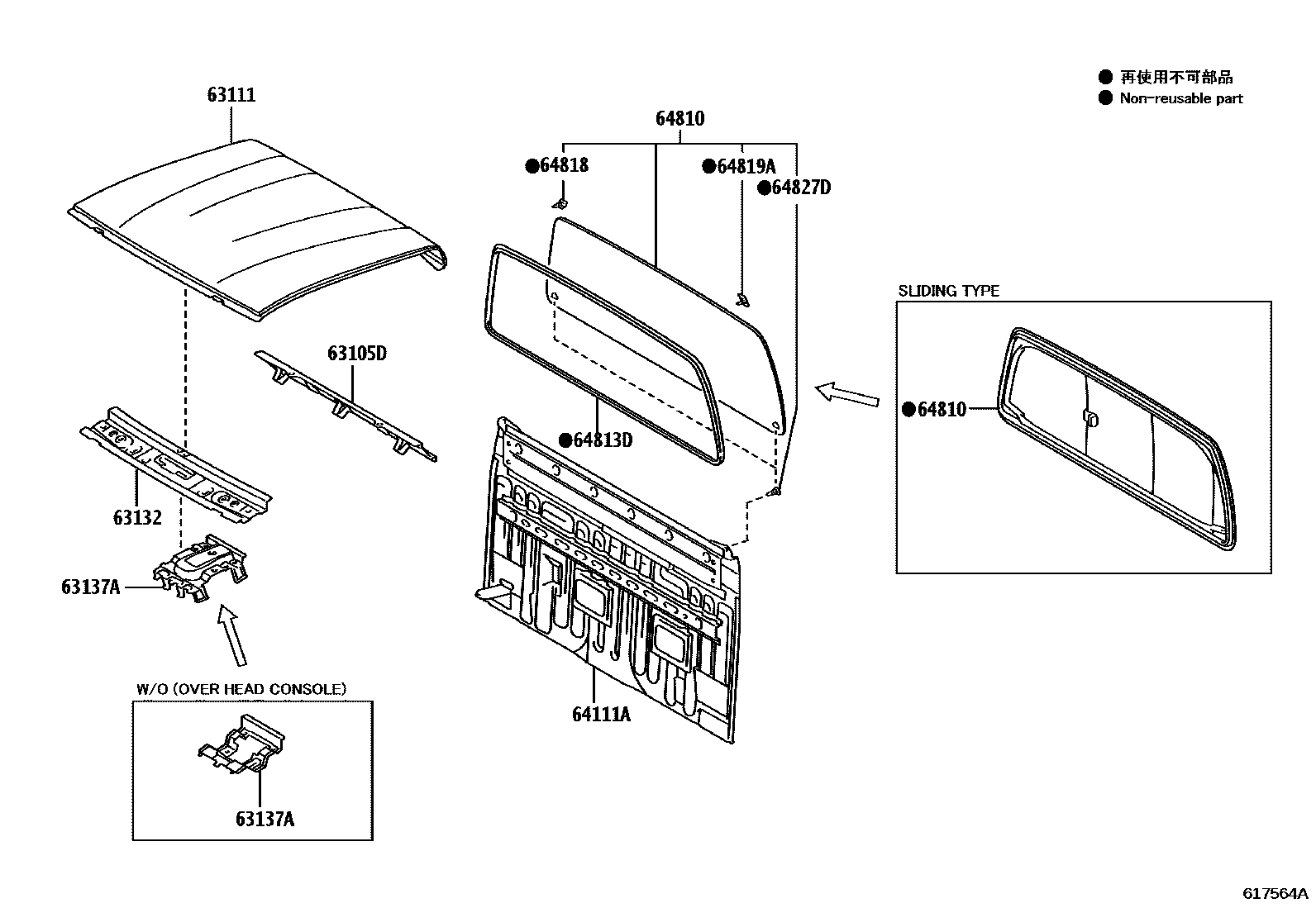

ROOF PANEL & BACK PANEL
63111PANEL, ROOF
DATA COMMUNICATION MODULE-WITH(G-DCM)
DATA COMMUNICATION MODULE-WITH(G-DCM)
63137ABRACKET, DOME LAMP, NO.1
main63137-KK010iGUN125,135..S..SA;GUN125..LHD..L..SA;GUN125..XTR..L..CBU;GUN122..RHD..SA..CBU;GUN126,136,LAN125,TGN120,136..SA202208-202401
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
FRONT PERSONAL LAMP-WITH(BULB TYPE)
FRONT PERSONAL LAMP-WITH(BULB TYPE)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
64111APANEL, BACK
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)
EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&EXHAUST EMISSION CONTROL-WITHOUT
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARDDIAGNOSIS)
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
64810WINDOW ASSY, BACK
REAR WINDOW DEFOGGER-WITH
main64801-0K122iGUN135..THP..L..CBU;GUN112,12#,TGN110,121,126..SCB..THP..(GEN,IDN,LA,PH,TH)202208-202307
REAR WINDOW DEFOGGER-WITH
BACK GLASS-FIX TYPE(GREEN)
REAR WINDOW DEFOGGER-WITHOUT
BACK GLASS-SLIDING TYPE(GREEN)
BACK GLASS-SLIDING TYPE(PRIVACY)
BACK GLASS-SLIDING TYPE(PRIVACY)&REAR WINDOW DEFOGGER-WITHOUT
64813DDAM, BACK WINDOW GLASS ADHESIVE
BACK GLASS-FIX TYPE(GREEN)
64818SPACER, BACK WINDOW GLASS
BACK GLASS-FIX TYPE(GREEN)
64819ASPACER, BACK WINDOW GLASS, NO.2
BACK GLASS-FIX TYPE(GREEN)
64827DCLIP, BACK WINDOW GLASS
BACK GLASS-FIX TYPE(GREEN)
10 parts on this diagram · 2 diagrams in section
