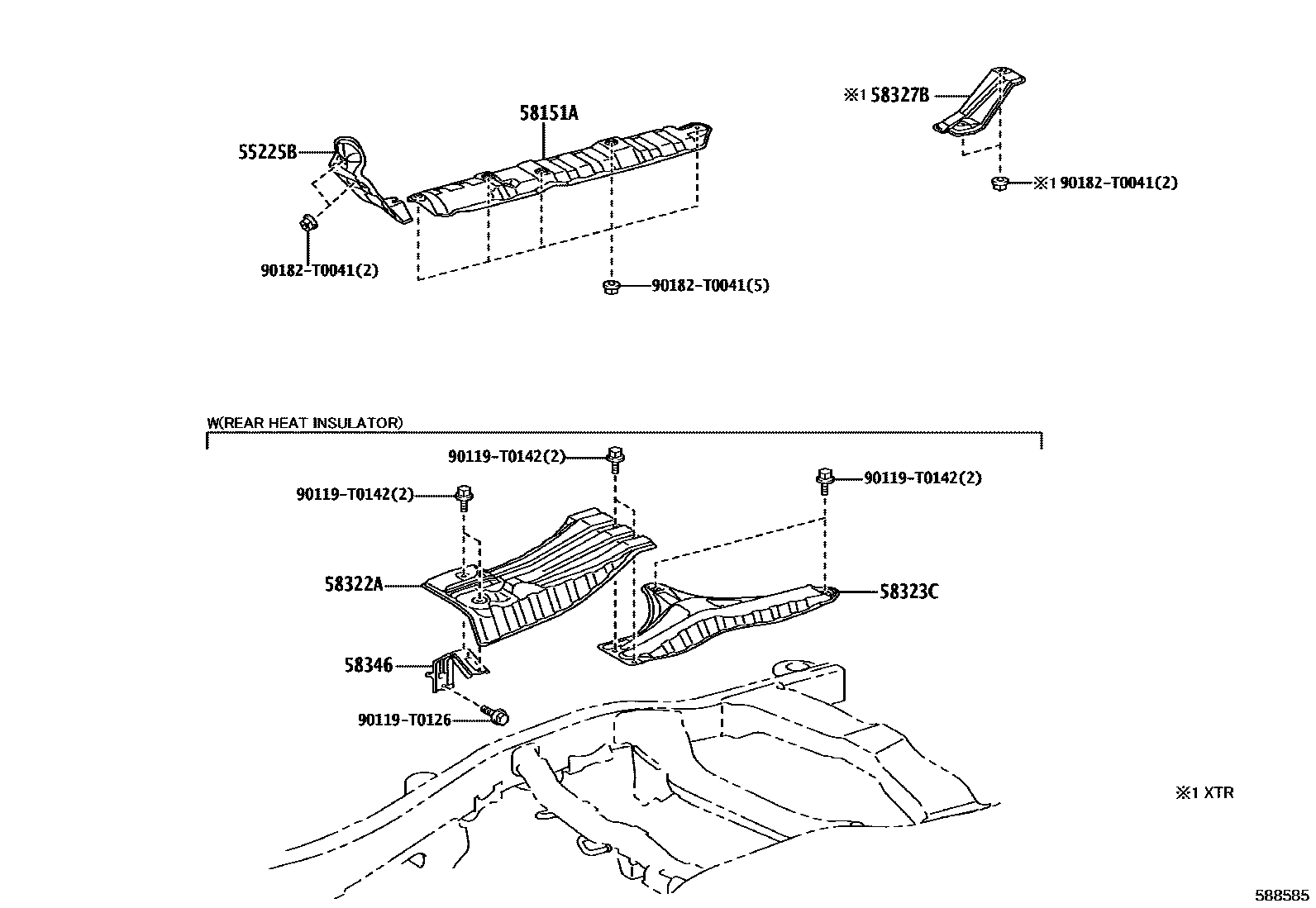

FLOOR INSULATOR

55225BINSULATOR, DASH PANEL HEAT

main55225-KK011iGUN125,135..KEN202208-202403

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK011iGUN125,126,135,TGN126,136..AGTP202211-202310

sub58151-KK020

main58151-KK020iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-KK011iGUN112..L..GCC202208-202305

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main58322-KK011iGUN112..L..GCC;GUN125..AGTP..LA202208-202305

SAUDI ARABIA SPEC

main58322-KK011iGUN112..L..GCC;GUN125..AGTP..LA202208-202305

EXHAUST EMISSION CONTROL-WITHOUT

main58322-KK011iGUN112..L..GCC;GUN125..AGTP..LA202208-202305

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main58322-KK011iGUN125..ARL;GUN112..L..GCC;GUN126,13#,TGN11#,120..ARL,GCC,IDN;GUN125,TGN121,126..SCB..THP..(5F,6FC)202208-202307

GCC SPEC EURO4 2022MY

main58322-KK011iGUN125..ARL;GUN112..L..GCC;GUN126,13#,TGN11#,120..ARL,GCC,IDN;GUN125,TGN121,126..SCB..THP..(5F,6FC)202208-202310

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58322-KK011iGUN125..ARL;GUN112..L..GCC;GUN126,13#,TGN11#,120..ARL,GCC,IDN;GUN125,TGN121,126..SCB..THP..(5F,6FC)202208-202310

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58322-KK011iTGN120,121,136..SA202208-202401

58323CINSULATOR, REAR FLOOR HEAT, NO.3

main58323-KK011iGUN135..BZAG;GUN125,TGN126,136..AGTP202208-202310

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58323-KK011iGUN126..GCC202208-202305

SAUDI ARABIA SPEC

main58323-KK011iGUN126..GCC202208-202305

EXHAUST EMISSION CONTROL-WITHOUT

main58323-KK011iGUN126..GCC202208-202305

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main58323-KK011iGUN126..GCC202208-202305

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main58323-KK011iGUN125..ARL;GUN112..L..GCC;GUN126,13#,TGN11#,120..ARL,GCC,IDN;GUN125,TGN121,126..SCB..THP..(5F,6FC)202208-202307

GCC SPEC EURO4 2022MY

main58323-KK011iGUN125..ARL;GUN112..L..GCC;GUN126,13#,TGN11#,120..ARL,GCC,IDN;GUN125,TGN121,126..SCB..THP..(5F,6FC)202208-202310

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58323-KK011iTGN120,121,136..SA202208-202401

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K021iGUN120,122,125,126,13#..XTR..THP202208-202401

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58332-KK010iGUN126..GCC202208-202305

SAUDI ARABIA SPEC

main58332-KK010iGUN126..GCC202208-202305

EXHAUST EMISSION CONTROL-WITHOUT

main58332-KK010iGUN126..GCC202208-202305

EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)

main58332-KK010iGUN126..GCC202208-202305

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main58332-KK010iGUN125..ARL;GUN112..L..GCC;GUN126,13#,TGN11#,120..ARL,GCC,IDN;GUN125,TGN121,126..SCB..THP..(5F,6FC)202208-202307

GCC SPEC EURO4 2022MY

main58332-KK010iGUN125..ARL;GUN112..L..GCC;GUN126,13#,TGN11#,120..ARL,GCC,IDN;GUN125,TGN121,126..SCB..THP..(5F,6FC)202208-202310

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58332-KK010iGUN125..ARL;GUN112..L..GCC;GUN126,13#,TGN11#,120..ARL,GCC,IDN;GUN125,TGN121,126..SCB..THP..(5F,6FC)202208-202310

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main58332-KK010iTGN120,121,136..SA202208-202401

90119T0126

main90119-T0126

90119T0142

main90119-T0142

90182T0041

main90182-T0041

9 parts on this diagram · 1 diagram in section
