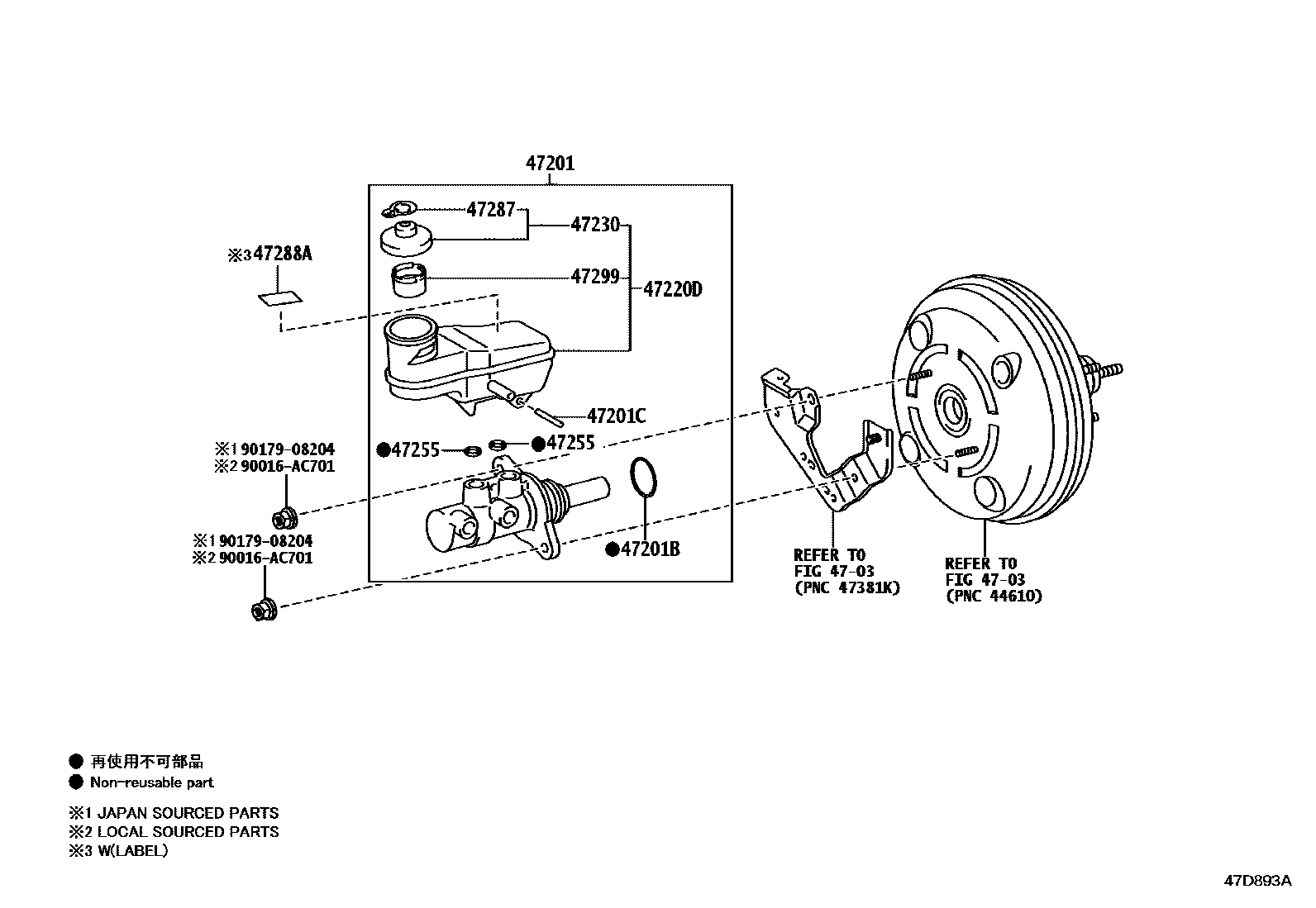

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0K380iGUN120;GUN135..6FC..L202208-202307

main47201-0K390iGUN125,135,TGN110..MTM..L..(IDN,TH);GUN112,121,122,126,TGN121..MTM..(L,S)..TH202208-202401

VSC-WITHOUT

main47201-0K390iGUN122,126,TGN121..PKN202208-202403

main47201-0K410iGUN122..PH;GUN125,TGN121..LHD..L..GEN202208-202401

VSC-WITHOUT

main47201-0K451iTGN136..BZAG;GUN125,126,135,TGN126..AGTP202211-202310

main47201-0K471iTGN136..LA202211-202310

VSC-WITHOUT

main47201-0K580iGUN126..6FC..GCC202208-202307

main47201-0K590iTGN121..GEN202208-202307

VSC-WITH(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM

main47201-0K590iTGN121..GEN202208-202307

VSC-WITH(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C STEEL

main47201-0K590iTGN121..SA202301-202401

VSC-WITH(*HSAC & *TSC)

main47201-0K590iGUN122..LHD..SA;GUN125..LHD..S..SA202208-202401

main47201-0K600iGUN135..6FC..(H,S)..TH;GUN125,126,136,TGN121..RHD..THP..6FC202208-202307

VSC-WITH(*HSAC & *TSC)

main47201-0K600iGUN125,126,13#..6FC..SA202208-202401

main47201-0K600iGUN135..6FC..(H,S)..TH;GUN125,126,136,TGN121..RHD..THP..6FC202208-202307

TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)

main47201-0K610iTGN120,136..SA202208-202401

VSC-WITH(*HSAC & *TSC)

main47201-0K610iGUN125..RHD..6F..(ARL,GEN,TH);GUN126,135..RHD..THP..6F..(H,S);GUN112,122,135,TGN121..RHD..MTM..(ARL,GEN,IDN)202208-202307

TOYOTA STOP & START SYSTEM-WITH&VSC-WITH(*HSAC & *TSC)

main47201-0K610iGUN125..S..KEN202208-202403

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGUN125,126,135,TGN126,136..AGTP202211-202310

main90016-AH903iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGUN122,126,TGN121..PKN202208-202403

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0K100iGUN125,126,13#..6FC..SA202208-202401

main47220-0K110iGUN125..MA202208-202403

main47220-0K120iGUN126..6FC..GCC202208-202307

main47220-0K130iGUN122,125,LAN125,TGN121..LHD..SA202208-202401

main47220-0K211iGUN125,126,135,TGN126,136..AGTP202211-202310

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iGUN125..MA202208-202403

main47230-20140iGUN125,126,135,TGN126,136..AGTP202211-202310

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001iGUN122,126,TGN121..PKN202208-202403

main90029-48001iGUN125,126,135,TGN126,136..AGTP202211-202310

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGUN11#,12#,13#,TGN11#,12#..THP202208-202403

47288ALABEL, BRAKE FLUID NOTICE

main47288-71010iGUN11#,122,125,126,TGN11#,12#..GCC202208-202307

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iGUN125,135..KEN202208-202403

main47299-0K200iGUN125,126,135,TGN126,136..AGTP202211-202310

90016AC701

main90016-AC701

9017908204

main90179-08204

12 parts on this diagram · 2 diagrams in section
