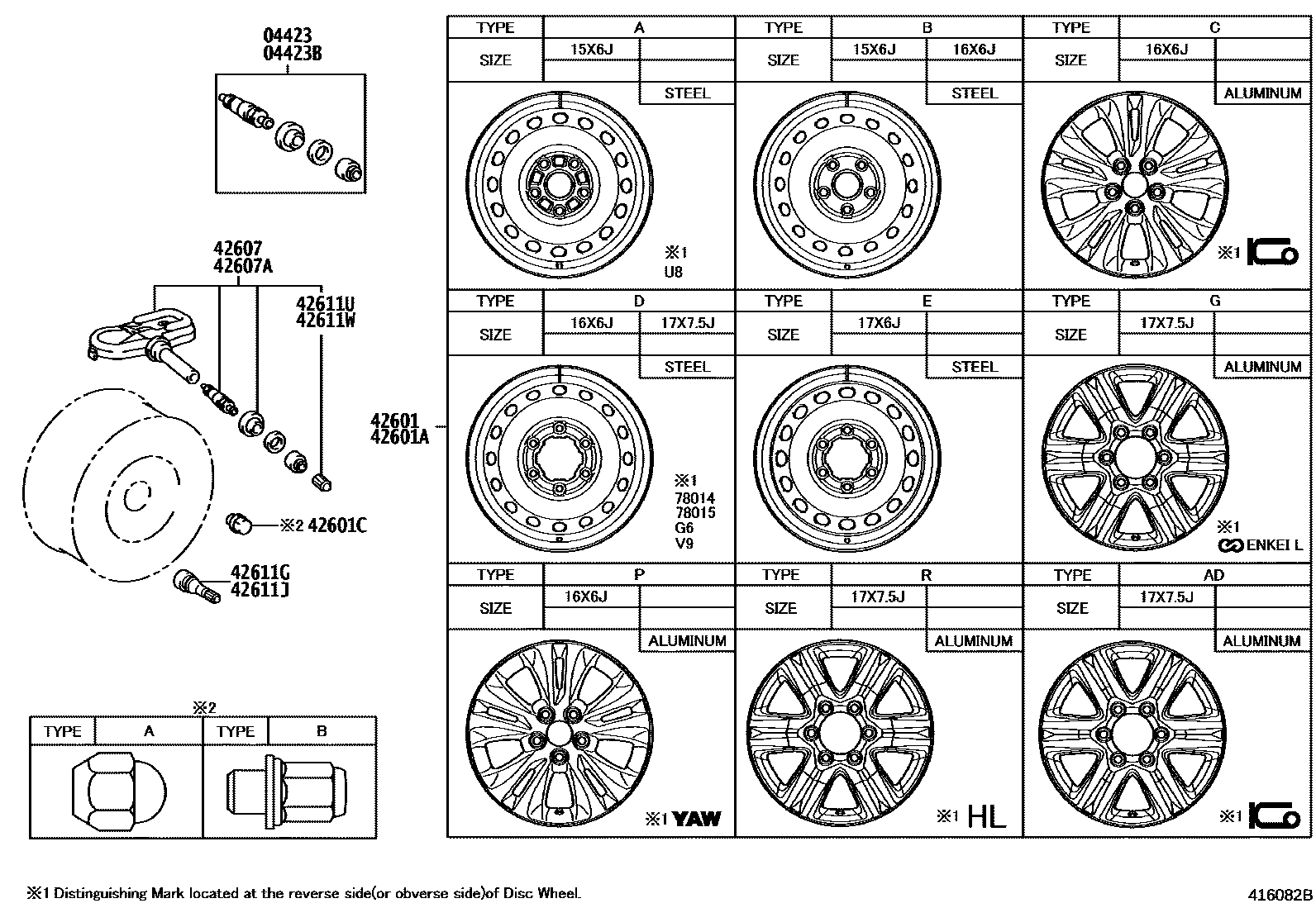

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
17X7.5J,T/P BH:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,T/P BH:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM,T/P BH:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE A:REFER ILLUST.
16X6J, #,TYPE B:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C STEEL,TYPE B:REFER ILLUST.
16X6J, #,TYPE D:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205R16C STEEL,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,TYPE D:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE B:REFER ILLUST.
16X6J, #,TYPE C:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE C:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE P:REFER ILLUST.
16X6J, #,TYPE P:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE R:REFER ILLUST.
17X7.5J,TYPE R:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,T/P AD:REFER ILLUST.
17X7.5J, #,T/P AD:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,T/P AD:REFER ILLUST.
15X6J, #,T/P AV:REFER ILLUST.
18X7.5J,T/P BJ:REFER ILLUST.
18X7.5J,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P BJ:REFER ILLUST.
18X7.5J,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P BJ:REFER ILLUST.
18X7.5J,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P BJ:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AG:REFER ILLUST.
18X7.5J, #,T/P AG:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AG:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),T/P AG:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
17X6J, #,TIRE & DISC WHEEL-225/70R17C STEEL&SPEED METER-KM/H,TYPE E:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE R:REFER ILLUST.
17X7.5J, #,TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,TYPER:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPEED METER-KM/H & WITH(*MID),TYPER:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X6J, #,TYPE E:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE A:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C STEEL,TYPE B:REFER ILLUST.
16X6J, #,TYPE B:REFER ILLUST.
main42611-0KG81iTGN121..ARL,GCC;GUN121,TGN110..GCC,TH;GUN11#,122,TGN111,120..GCC,GEN,IDN202208-202307
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE B:REFER ILLUST.
16X6J, #,TYPE D:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205R16C STEEL,TYPE D:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,TYPE D:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPEED METER-KM/H & WITH(*MID),TYPED:REFER ILLUST.
17X7.5J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,TYPED:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE B:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,T/P AH:REFER ILLUST.
18X7.5J, #,T/P AH:REFER ILLUST.
15X6J, #,T/P AV:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
17X6J, #,TIRE & DISC WHEEL-225/70R17C STEEL&SPEED METER-KM/H,TYPE E:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL&SPARETIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL)&SPEED METER-KM/H & WITH(*MID),TYPE R:REFER ILLUST.
17X7.5J, #,SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
17X7.5J, #,TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE R:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-205/70R15C STEEL&WHEEL CAP-WITH(CENTER ORNAMENT),TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/65R16C STEEL,TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/65R16C STEEL&WHEEL CAP-WITH(CENTER ORNAMENT),TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/65R16C STEEL&WHEEL CAP-WITH(FULL CAP),TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(J),T/P B:REF.ILLUST
(J),TYPE B:REF ILL.
TIRE & DISC WHEEL-215/65R16C ALUMINUM,(J),TYPE B:REF ILL.
TIRE & DISC WHEEL-215/65R16C ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(J),TYPE B:REFILL.
(J),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/65R17 ALUMINUM,(J),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(J),T/P B:REF.ILLUST
(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-215/65R16C ALUMINUM,(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-215/65R16C ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-265/65R17 ALUMINUM,(L),T/P B:REF.ILLUST
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
SUDAN SPEC
IRAN SPEC
AFRICA SPEC
SYRIA SPEC
EGYPT SPEC
42611JVALVE (FOR TUBELESS TIRE SPARE)
AFRICA SPEC
EGYPT SPEC
SUDAN SPEC
IRAN SPEC
SYRIA SPEC
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
11 parts on this diagram · 3 diagrams in section
