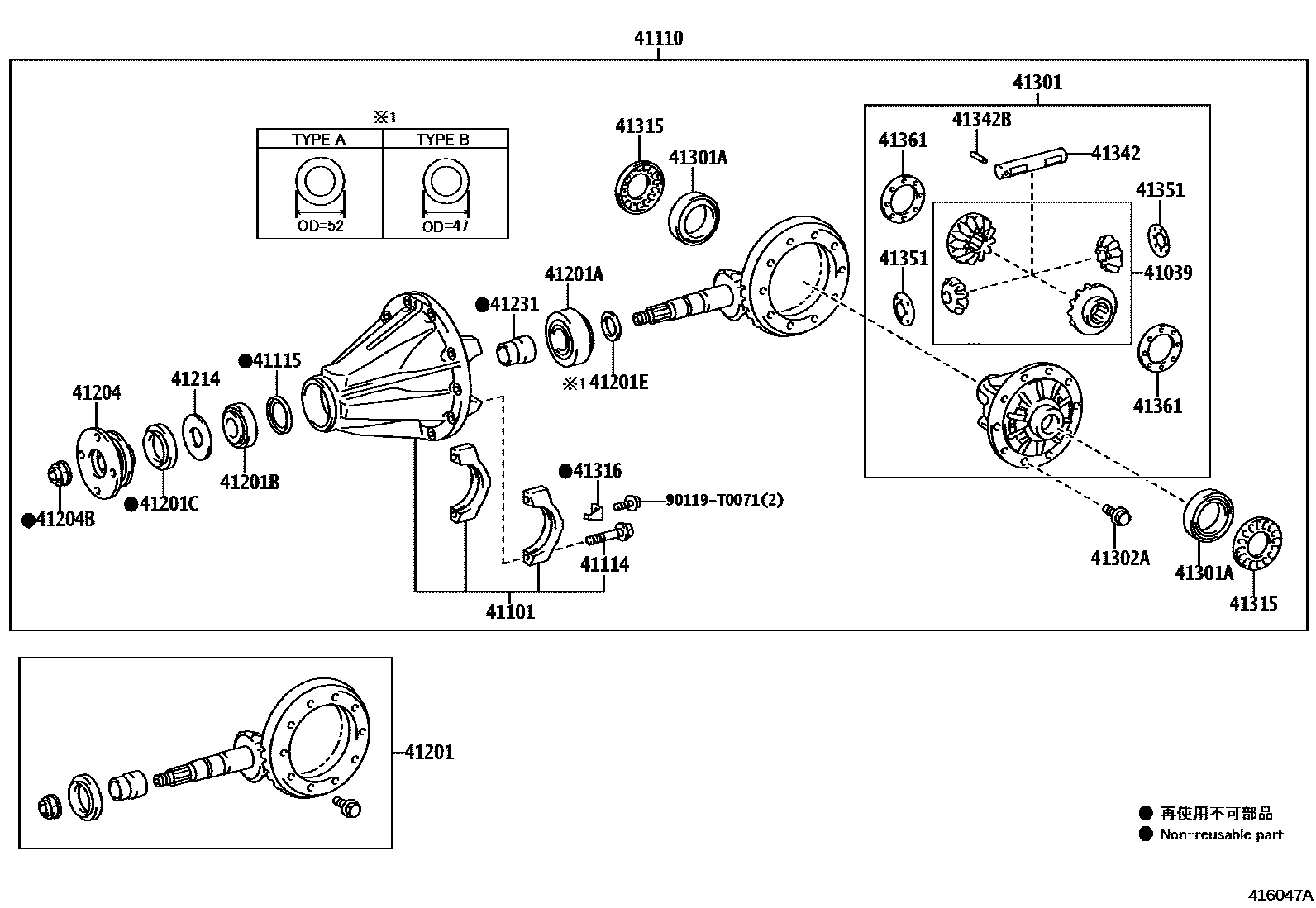

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1W/O(DIFFERENTIAL LOCK) 0003 1W/O(DIFFERENTIAL LOCK) 0004 1W(DIFFERENTIAL LOCK) 0005 1W(DIFFERENTIAL LOCK) 0006 1W(DIFFERENTIAL LOCK) 0007 1 0008 1 0009 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-0K010iGUN125..IDN,TH;GUN126,136..THP;GUN135..THP..LA;GUN125..6FC..GEN;GUN125,TGN126..LHD..THP..(H,S)202208-202401

DIFFERENTIAL LOCK-WITH

main41039-0K010iGUN125..MA202208-202403

main41039-71011iLAN125,TGN120..SA202208-202401

main41039-71070iGUN122,TGN121..PKN202208

main41039-71070iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

DIFFERENTIAL LOCK-WITHOUT

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0K011iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

main41101-0K070iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

DIFFERENTIAL LOCK-WITHOUT

main41101-0K070iGUN122,TGN121..PKN202208

main41101-0K080iGUN125..IDN,TH;GUN126,136..THP;GUN135..THP..LA;GUN125..6FC..GEN;GUN125,TGN126..LHD..THP..(H,S)202208-202307

DIFFERENTIAL LOCK-WITH

main41101-0K080iGUN126..PKN202208-202308

main41101-0K110iGUN135..AGTP;TGN136..BZAG;GUN125,126,TGN126..AGTP..LA202211-202401

main41101-0K110iGUN125,135,TGN136..RHD..SCB..MTM..S..SA..CBU202301-202401

DIFFERENTIAL LOCK-WITHOUT

main41101-0K120iGUN125,135..KEN202211-202403

main41101-0K120iTGN136..LA;GUN125,126..BZAG202211-202401

DIFFERENTIAL LOCK-WITH

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0K570iGUN135..RHD..THP..6F;GUN120,121,122..GCC,GEN,TH;GUN11#,125..SCB..THP..MTM..(ARL,GCC,GEN,LA)202208-202307

*FGR=43:12=3.583

main41110-0K570iGUN125..S..GEN202208-202307

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT

main41110-0K580iGUN136..ARL202208-202307

*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITHOUT

main41110-0K590iTGN111,121..ARL,GCC,GEN;GUN125,135..XTR..THP..6FC202208-202307

*FGR=41:10=4.100

main41110-0K610iTGN126..THP..L202208-202307

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITHOUT

main41110-0K610iTGN126..THP..L202208-202307

*FGR=41:9=4.555

main41110-0K620iGUN125..IDN,TH;GUN126..THP..6F;GUN135..THP..LA;GUN125..XTR..GEN202208-202307

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

main41110-0K620iGUN125..THP..LA;GUN125..RHD..6F..GEN202208-202308

*FGR=43:12=3.583

main41110-0K630iGUN126,136..THP..6FC202208-202307

*FGR=43:11=3.909

main41110-0K640iGUN125..6FC..GEN202208-202307

*FGR=41:10=4.100

main41110-0K660iTGN126..S202208-202307

*FGR=41:9=4.555

main41110-0K670iGUN135..AGTP;GUN125,126..AGTP..LA202211-202306

*FGR=43:12=3.583

sub41110-0K671

main41110-0K671iGUN135..AGTP;GUN125,126..AGTP..LA202307-202310

*FGR=43:12=3.583

main41110-0K710iTGN126..AGTP;TGN136..BZAG202211-202306

*FGR=41:9=4.555

sub41110-0K711

main41110-0K711iTGN126..AGTP;TGN136..BZAG202307-202310

*FGR=41:9=4.555

main41110-0K720iGUN125,126,135..AGTP..LA202211-202306

*FGR=43:12=3.583

sub41110-0K721

main41110-0K720iGUN125,126..BZAG202211-202306

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

sub41110-0K721

main41110-0K721iGUN125,126,135..AGTP..LA202307-202310

*FGR=43:12=3.583

main41110-0K721iGUN125,126,135..AGTP..LA202307-202310

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

main41110-0K760iTGN136..LA202211-202306

*FGR=41:9=4.555

sub41110-0K761

main41110-0K761iTGN136..LA202307-202310

*FGR=41:9=4.555

main41110-0K770iGUN125,135..RHD..SCB..6F..S..SA..CBU202301-202306

*FGR=43:12=3.583

sub41110-0K771

main41110-0K770iGUN125,135..RHD..SCB..6F..S..SA..CBU202301-202306

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT

sub41110-0K771

main41110-0K771iGUN125,135..RHD..SCB..6F..S..SA..CBU202307-202401

*FGR=43:12=3.583

main41110-0K771iGUN125..SA..IV3;GUN122,135..L..SA;GUN125..LHD..SCB..S;GUN125..RHD..SCB..L..SA202307-202401

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT

main41110-0K790iTGN121..SA202301-202306

*FGR=41:10=4.100

sub41110-0K791

main41110-0K791iTGN121..SA202307-202401

*FGR=41:10=4.100

main41110-0K810iTGN136..SA202301-202306

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITHOUT

sub41110-0K811

main41110-0K811iTGN136..SA202307-202401

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITHOUT

main41110-0K820iGUN125..XTR..SA;GUN125,135..L..KEN;GUN125..LHD..L..SA;GUN125,126,13#..RHD..6F..(H,S)..(KEN,SA)..CBU202301-202306

*FGR=43:12=3.583

sub41110-0K821

main41110-0K820iGUN125..SA..IV3;GUN125..LHD..SCB..S;GUN125,135..RHD..SCB..L..SA202301-202306

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

sub41110-0K821

main41110-0K821iGUN125,135..KEN202307-202403

*FGR=43:12=3.583

main41110-0K821iGUN125..XTR..SA;GUN125..LHD..L..SA;GUN125,126,13#..RHD..6F..(H,S)..SA..CBU202307-202401

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

main41110-0K830iGUN126,136..6FC..SA202301-202306

*FGR=43:11=3.909

sub41110-0K831

main41110-0K831iGUN126,136..6FC..SA202307-202401

*FGR=43:11=3.909

main41110-0K840iGUN125,135..6FC..SA202301-202306

*FGR=41:10=4.100

sub41110-0K841

main41110-0K841iGUN125,135..6FC..SA202307-202401

*FGR=41:10=4.100

main41110-0K860iTGN136..SA202301-202306

*FGR=41:9=4.555

sub41110-0K861

main41110-0K861iTGN136..SA202307-202401

*FGR=41:9=4.555

main41110-0KB30iGUN112,122..5F..(IDN,PH,TH)202208-202307

*FGR=43:12=3.583

main41110-0KB50iTGN121..TH202208-202307

*FGR=41:10=4.100

main41110-0KB60iLAN125202301-202401

*FGR=43:10=4.300

main41110-0KB70iTGN110,120..THP202208-202401

*FGR=41:9=4.555

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-F0001iGUN125,135..KEN202211-202403

TYPE A:REFER ILLUST.

main90105-T0081iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

main90109-F0001iGUN125,126,135,TGN126,136..AGTP202211-202403

TYPE B:REFER ILLUST.

main90109-T0030iGUN122,126,TGN121..PKN202208-202308

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0K010iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09B60iGUN125..MA202208-202402

*FGR=43:12=3.583

main41201-09B70iGUN126,136..THP..6FC202208-202307

*FGR=43:11=3.909

main41201-09B80iGUN135..6FC..TH;GUN125,TGN111,121..(5F,6FC)..(ARL,GCC,GEN)202208-202402

*FGR=41:10=4.100

main41201-09C00iTGN121..TH202208-202307

*FGR=41:10=4.100

main41201-09C10iTGN126..THP202208-202307

*FGR=41:9=4.555

main41201-09C30iLAN125202301-202401

*FGR=43:10=4.300

main41201-09C40iTGN120..SA202208-202401

*FGR=41:9=4.555

main41201-09C50iGUN112,122..5F..(IDN,PH,TH)202208-202307

*FGR=43:12=3.583

main41201-09E41iGUN122,125,126,13#..(AGTP,KENP,SAP)..MTM202211-202307

*FGR=43:12=3.583

sub41201-09E42

main41201-09E42iGUN125,135..KEN202307-202403

*FGR=43:12=3.583

main41201-09E81iTGN126,136..AGTP,SAP202211-202307

*FGR=41:9=4.555

sub41201-09E82

main41201-09E82iTGN136..SA202307-202401

*FGR=41:9=4.555

main41201-09F70iGUN126,136..6FC..SA202301-202307

*FGR=43:11=3.909

sub41201-09F71

main41201-09F71iGUN126,136..6FC..SA202307-202401

*FGR=43:11=3.909

main41201-09F80iGUN125,135,TGN121..(5F,6FC)..SA202301-202307

*FGR=41:10=4.100

sub41201-09F81

main41201-09F81iGUN125,135,TGN121..(5F,6FC)..SA202307-202401

*FGR=41:10=4.100

main41201-09G10iGUN122,126..PKN202402

*FGR=43:12=3.583

main41201-09G30iTGN121..PKN202402

*FGR=41:10=4.100

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-S0016iGUN122,125,126,13#,TGN121,136..SA202211-202403

main90366-T0065iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

main90366-T0080iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-S0013iGUN122,125,126,13#,TGN121,136..SA202211-202403

main90366-T0062iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

main90366-T0083iLAN125,TGN120..SA202208-202401

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-53001iGUN122,125,126,13#,TGN121,136..SA202307-202403

main90311-S0001iGUN122,125,126,13#,TGN121,126,136..AGTP,KENP,SAP202211-202306

sub90311-53001

main90311-T0065iGUN125..MA202208-202308

main90311-T0068iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90201-35497iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=47,T=1.70,TYPE B:REFER ILLUST.

main90201-35498iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=47,T=1.73,TYPE B:REFER ILLUST.

main90201-35499iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=47,T=1.76,TYPE B:REFER ILLUST.

main90201-35500iLAN125,TGN120..SA202208-202401

OD=47,T=1.79,TYPE B:REFER ILLUST.

main90201-35501iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=47,T=1.82,TYPE B:REFER ILLUST.

main90201-35502iLAN125,TGN120..SA202208-202401

OD=47,T=1.85,TYPE B:REFER ILLUST.

main90201-35503iLAN125,TGN120..SA202208-202401

OD=47,T=1.88,TYPE B:REFER ILLUST.

main90201-35504iLAN125,TGN120..SA202208-202401

OD=47,T=1.91,TYPE B:REFER ILLUST.

main90201-35505iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=47,T=1.94,TYPE B:REFER ILLUST.

main90201-35506iLAN125,TGN120..SA202208-202401

OD=47,T=1.97,TYPE B:REFER ILLUST.

main90201-35507iLAN125,TGN120..SA202208-202401

OD=47,T=2.00,TYPE B:REFER ILLUST.

main90201-35508iLAN125,TGN120..SA202208-202401

OD=47,T=2.03,TYPE B:REFER ILLUST.

main90201-35509iLAN125,TGN120..SA202208-202401

OD=47,T=2.06,TYPE B:REFER ILLUST.

main90201-35510iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=47,T=2.09,TYPE B:REFER ILLUST.

main90201-35511iLAN125,TGN120..SA202208-202401

OD=47,T=2.12,TYPE B:REFER ILLUST.

main90201-35512iLAN125,TGN120..SA202208-202401

OD=47,T=2.15,TYPE B:REFER ILLUST.

main90201-35513iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=47,T=2.18,TYPE B:REFER ILLUST.

main90201-35514iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=47,T=2.21,TYPE B:REFER ILLUST.

main90201-35515iLAN125,TGN120..SA202208-202401

OD=47,T=2.24,MARK 01,TYPE B:REFER ILLUST.

main90201-35516iLAN125,TGN120..SA202208-202401

OD=47,T=2.27,MARK 02,TYPE B:REFER ILLUST.

main90201-35517iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=47,T=2.30,MARK 03,TYPE B:REFER ILLUST.

main90201-35518iLAN125,TGN120..SA202208-202401

OD=47,T=2.33,MARK 04,TYPE B:REFER ILLUST.

main90564-35109iLAN125,TGN120..SA202208-202401

OD=52,T=1.70,TYPE A:REFER ILLUST.

main90564-35110iLAN125,TGN120..SA202208-202401

OD=52,T=1.73,TYPE A:REFER ILLUST.

main90564-35111iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=52,T=1.76,TYPE A:REFER ILLUST.

main90564-35112iLAN125,TGN120..SA202208-202401

OD=52,T=1.79,TYPE A:REFER ILLUST.

main90564-35113iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=52,T=1.82,TYPE A:REFER ILLUST.

main90564-35114iLAN125,TGN120..SA202208-202401

OD=52,T=1.85,TYPE A:REFER ILLUST.

main90564-35115iLAN125,TGN120..SA202208-202401

OD=52,T=1.88,TYPE A:REFER ILLUST.

main90564-35116iLAN125,TGN120..SA202208-202401

OD=52,T=1.91,TYPE A:REFER ILLUST.

main90564-35117iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=52,T=1.94,TYPE A:REFER ILLUST.

main90564-35118iLAN125,TGN120..SA202208-202401

OD=52,T=1.97,TYPE A:REFER ILLUST.

main90564-35119iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=52,T=2.00,TYPE A:REFER ILLUST.

main90564-35120iLAN125,TGN120..SA202208-202401

OD=52,T=2.03,TYPE A:REFER ILLUST.

main90564-35121iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=52,T=2.06,TYPE A:REFER ILLUST.

main90564-35123iLAN125,TGN120..SA202208-202401

OD=52,T=2.09,TYPE A:REFER ILLUST.

main90564-35124iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=52,T=2.12,TYPE A:REFER ILLUST.

main90564-35125iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=52,T=2.15,TYPE A:REFER ILLUST.

main90564-35126iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=52,T=2.18,TYPE A:REFER ILLUST.

main90564-35127iLAN125,TGN120..SA202208-202401

OD=52,T=2.21,TYPE A:REFER ILLUST.

main90564-35128iLAN125,TGN120..SA202208-202401

OD=52,T=2.24,TYPE A:REFER ILLUST.

main90564-35129iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

OD=52,T=2.27,TYPE A:REFER ILLUST.

main90564-35130iLAN125,TGN120..SA202208-202401

OD=52,T=2.30,TYPE A:REFER ILLUST.

main90564-35131iLAN125,TGN120..SA202208-202401

OD=52,T=2.33,TYPE A:REFER ILLUST.

main90564-78001iGUN125..MA202208-202308

T=1.72

main90564-78002iGUN125..MA202208-202308

T=1.74

main90564-78003iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

T=1.76

main90564-78004iGUN122,126,TGN121..PKN202208-202308

T=1.78

main90564-78005iGUN125..MA202208-202308

T=1.80

main90564-78006iGUN125..MA202208-202308

T=1.82

main90564-78007iGUN125..MA202208-202308

T=1.84

main90564-78008iGUN125..MA202208-202308

T=1.86

main90564-78009iGUN125..MA202208-202308

T=1.88

main90564-78010iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

T=1.90

main90564-78011iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

T=1.92

main90564-78012iGUN122,126,TGN121..PKN202208-202308

T=1.94

main90564-78013iGUN125..MA202208-202308

T=1.96

main90564-78014iGUN125..MA202208-202308

T=1.98

main90564-78015iGUN122,126,TGN121..PKN202208-202308

T=2.00

main90564-78016iGUN125..MA202208-202308

T=2.02

main90564-78017iGUN122,126,TGN121..PKN202208-202308

T=2.04

main90564-78018iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

T=2.06

main90564-78019iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

T=2.08

main90564-78020iGUN122,126,TGN121..PKN202208-202308

T=2.10

main90564-78021iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

T=2.12

main90564-78022iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

T=2.14

main90564-78023iGUN122,126,TGN121..PKN202208-202308

T=2.16

main90564-78024iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

T=2.18

main90564-S0001iGUN125,126,135,TGN126,136..AGTP202211-202403

T=1.025

main90564-S0002iGUN125,135..KEN202211-202403

T=1.050

main90564-S0003iGUN122,125,126,13#,TGN121,136..SA202211-202403

T=1.075

main90564-S0004iGUN125,126,135,TGN126,136..AGTP202211-202403

T=1.100

main90564-S0005iGUN122,125,126,13#,TGN121,136..SA202211-202403

T=1.125

main90564-S0006iGUN125,126,135,TGN126,136..AGTP202211-202403

T=1.150

main90564-S0007iGUN125,126,135,TGN126,136..AGTP202211-202403

T=1.175

main90564-S0008iGUN125,126,135,TGN126,136..AGTP202211-202403

T=1.200

main90564-S0009iGUN125,126,135,TGN126,136..AGTP202211-202403

T=1.225

main90564-S0010iGUN125,135..KEN202211-202403

T=1.250

main90564-S0011iGUN125,126,135,TGN126,136..AGTP202211-202403

T=1.275

main90564-S0012iGUN125,135..KEN202211-202403

T=1.300

main90564-S0013iGUN125,135..KEN202211-202403

T=1.325

main90564-S0014iGUN125,135..KEN202211-202403

T=1.350

main90564-S0015iGUN125,135..KEN202211-202403

T=1.375

main90564-S0016iGUN125,135..KEN202211-202403

T=1.400

main90564-S0017iGUN122,125,126,13#,TGN121,136..SA202211-202403

T=1.425

main90564-S0018iGUN122,125,126,13#,TGN121,136..SA202211-202403

T=1.450

main90564-S0019iGUN122,125,126,13#,TGN121,136..SA202211-202403

T=1.475

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0K100iLAN125,TGN120..SA202208-202401

main41204-0K110iGUN122,126,TGN121..PKN202208-202308

main41204-0K131iGUN122,125,126,13#,TGN121,136..SA202211-202403

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iLAN125,TGN120..SA202208-202401

OD=39.5

main90178-F0001iGUN125,135..KEN202211-202403

OD=43.5

main90179-22029iGUN12#,135..THP..(ARL,GCC,GEN,IDN,LA,TH);GUN11#,136,TGN111,121,126..THP..(ARL,GCC,GEN,LA)202208-202308

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0K040iGUN125..MA202208-202308

main41214-0K050iGUN125,126,135,TGN126,136..AGTP202211-202403

main41214-26011iLAN125,TGN120..SA202208-202401

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-0K030iGUN122,125,126,13#,TGN121,136..SA202211-202403

main41231-24010iLAN125,TGN120..SA202208-202401

main41231-71010iGUN125..MA202208-202308

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-0K100iGUN135..AGTP;TGN136..BZAG;GUN125,126,TGN126..AGTP..LA202211-202401

main41301-0K100iGUN125,135,TGN136..RHD..SCB..MTM..S..SA..CBU202301-202401

DIFFERENTIAL LOCK-WITHOUT

main41301-0K110iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

main41301-0K120iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

DIFFERENTIAL LOCK-WITHOUT

main41301-0K120iGUN122,TGN121..PKN202208

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-S0019iGUN122,125,126,13#,TGN121,136..SA202211-202403

LH

main90366-S0022iGUN122,125,126,13#,TGN121,136..SA202211-202403

RH

main90366-T0010iLAN125,TGN120..SA202208-202401

main90366-T0068iGUN122,126,TGN121..PKN202208-202308

LH

main90366-T0071iGUN125..MA202208-202308

RH

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-0K020iGUN125..THP..LA;GUN125..RHD..6F..GEN202208-202307

DIFFERENTIAL LOCK-WITH

main41302-0K020iGUN125..MA202208-202308

main41302-0K030iGUN125,126,135..AGTP..LA202211-202401

DIFFERENTIAL LOCK-WITH

main41302-0K030iGUN125,135..KEN202211-202403

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-F0003iGUN125,126,135,TGN126,136..AGTP202211-202403

main90105-T0268iGUN125..MA202208-202308

main90105-T0417iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-0K010iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

(L)

main41315-35020iLAN125,TGN120..SA202208-202401

(J)

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-0K010iLAN125,TGN120..SA202208-202401

(L)

main41316-35010iLAN125,TGN120..SA202208-202401

(J)

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0K060iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

main41342-0K070iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

DIFFERENTIAL LOCK-WITHOUT

main41342-0K070iGUN122,TGN121..PKN202208

main41342-0K080iGUN125..THP..LA;GUN125..RHD..6F..GEN202208-202401

DIFFERENTIAL LOCK-WITH

main41342-0K080iGUN125..MA202208-202403

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-T0006iGUN122,TGN121..PKN202208-202401

main90250-T0006iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

DIFFERENTIAL LOCK-WITHOUT

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-0K010iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

(L)

main41351-0K040iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

DIFFERENTIAL LOCK-WITHOUT

main41351-0K040iGUN122,TGN121..PKN202208

main41351-0K050iGUN125..IDN,TH;GUN126,136..THP;GUN135..THP..LA;GUN125..6FC..GEN;GUN125,TGN126..LHD..THP..(H,S)202208-202307

DIFFERENTIAL LOCK-WITH

main41351-0K050iGUN125..MA202208-202308

main41351-0K060iGUN125,126,135..AGTP..LA202211-202401

DIFFERENTIAL LOCK-WITH

main41351-0K060iGUN125,135..KEN202211-202403

main41351-35030iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

(J)

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

T=1.55

main41361-0K030iLAN125,TGN120..SA202208-202401

T=1.60

main41361-0K040iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

T=1.65

main41361-0K050iLAN125,TGN120..SA202208-202401

T=1.70

main41361-0K060iLAN125,TGN120..SA202208-202401

T=1.75

main41361-0K070iLAN125,TGN120..SA202208-202401

T=1.80

main41361-0K080iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

T=1.85

main41361-0K090iTGN110,120..THP;GUN112,122,TGN121..5F..(IDN,PH,TH)202208-202401

T=1.90

main41361-0K110iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

T=1.45

main41361-0K110iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

T=1.45,DIFFERENTIAL LOCK-WITHOUT

main41361-0K300iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

T=1.50,DIFFERENTIAL LOCK-WITHOUT

main41361-0K300iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

T=1.50

main41361-0K310iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

T=1.55,DIFFERENTIAL LOCK-WITHOUT

main41361-0K310iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

T=1.55

main41361-0K320iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

T=1.60

main41361-0K320iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

T=1.60,DIFFERENTIAL LOCK-WITHOUT

main41361-0K330iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

T=1.65

main41361-0K330iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

T=1.65,DIFFERENTIAL LOCK-WITHOUT

main41361-0K340iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

T=1.70

main41361-0K340iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

T=1.70,DIFFERENTIAL LOCK-WITHOUT

main41361-0K350iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

T=1.75,DIFFERENTIAL LOCK-WITHOUT

main41361-0K350iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

T=1.75

main41361-0K360iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

T=1.80

main41361-0K360iGUN125..6FC..IV3;GUN11#,TGN111,121..ARL,GCC,GEN;GUN120,121,122,135..ARL,GCC,GEN,TH;GUN125,TGN126..THP..MTM..L..(ARL,GCC,GEN,LA)202208-202307

T=1.80,DIFFERENTIAL LOCK-WITHOUT

main41361-0K370iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

T=1.85,DIFFERENTIAL LOCK-WITHOUT

main41361-0K370iGUN125,136,TGN126..S..(ARL,GCC,GEN)202208-202307

T=1.85

main41361-0K380iGUN125..IDN,TH;GUN126,136..THP;GUN135..THP..LA;GUN125..6FC..GEN;GUN125,TGN126..LHD..THP..(H,S)202208-202308

T=1.1

main41361-0K380iGUN125..IDN,TH;GUN126,136..THP;GUN135..THP..LA;GUN125..6FC..GEN;GUN125,TGN126..LHD..THP..(H,S)202208-202307

T=1.1,DIFFERENTIAL LOCK-WITH

main41361-0K390iGUN126..PKN202208-202308

T=1.2

main41361-0K390iGUN125..IDN,TH;GUN126,136..THP;GUN135..THP..LA;GUN125..6FC..GEN;GUN125,TGN126..LHD..THP..(H,S)202208-202307

T=1.2,DIFFERENTIAL LOCK-WITH

main41361-0K400iGUN125..IDN,TH;GUN126,136..THP;GUN135..THP..LA;GUN125..6FC..GEN;GUN125,TGN126..LHD..THP..(H,S)202208-202307

T=1.3,DIFFERENTIAL LOCK-WITH

main41361-0K400iGUN125..THP..LA;GUN125..RHD..6F..GEN202208-202308

T=1.3

main41361-0K410iGUN125..THP..LA;GUN125..RHD..6F..GEN202208-202308

T=1.4

main41361-0K410iGUN125..IDN,TH;GUN126,136..THP;GUN135..THP..LA;GUN125..6FC..GEN;GUN125,TGN126..LHD..THP..(H,S)202208-202307

T=1.4,DIFFERENTIAL LOCK-WITH

main41361-0K460iGUN125..SA..IV3;GUN125..LHD..SCB..S;GUN125,135..RHD..SCB..L..SA202211-202401

T=1.1,DIFFERENTIAL LOCK-WITH

main41361-0K460iTGN136..LA;GUN125,126..BZAG202211-202403

T=1.1

main41361-0K470iGUN125..SA..IV3;GUN125..LHD..SCB..S;GUN125,135..RHD..SCB..L..SA202211-202401

T=1.2,DIFFERENTIAL LOCK-WITH

main41361-0K470iTGN136..LA;GUN125,126..BZAG202211-202403

T=1.2

main41361-0K480iGUN125..XTR..SA;GUN125..LHD..L..SA;GUN125,126,13#,TGN136..RHD..(H,S)..SA..CBU202211-202401

T=1.3,DIFFERENTIAL LOCK-WITH

main41361-0K480iGUN125,126,135..AGTP..LA202211-202403

T=1.3

main41361-0K490iGUN125,126,135..AGTP..LA202211-202403

T=1.4

main41361-0K490iGUN125,126,135..AGTP..LA202211-202401

T=1.4,DIFFERENTIAL LOCK-WITH

90119T0071

main90119-T0071

25 parts on this diagram · 9 diagrams in section
