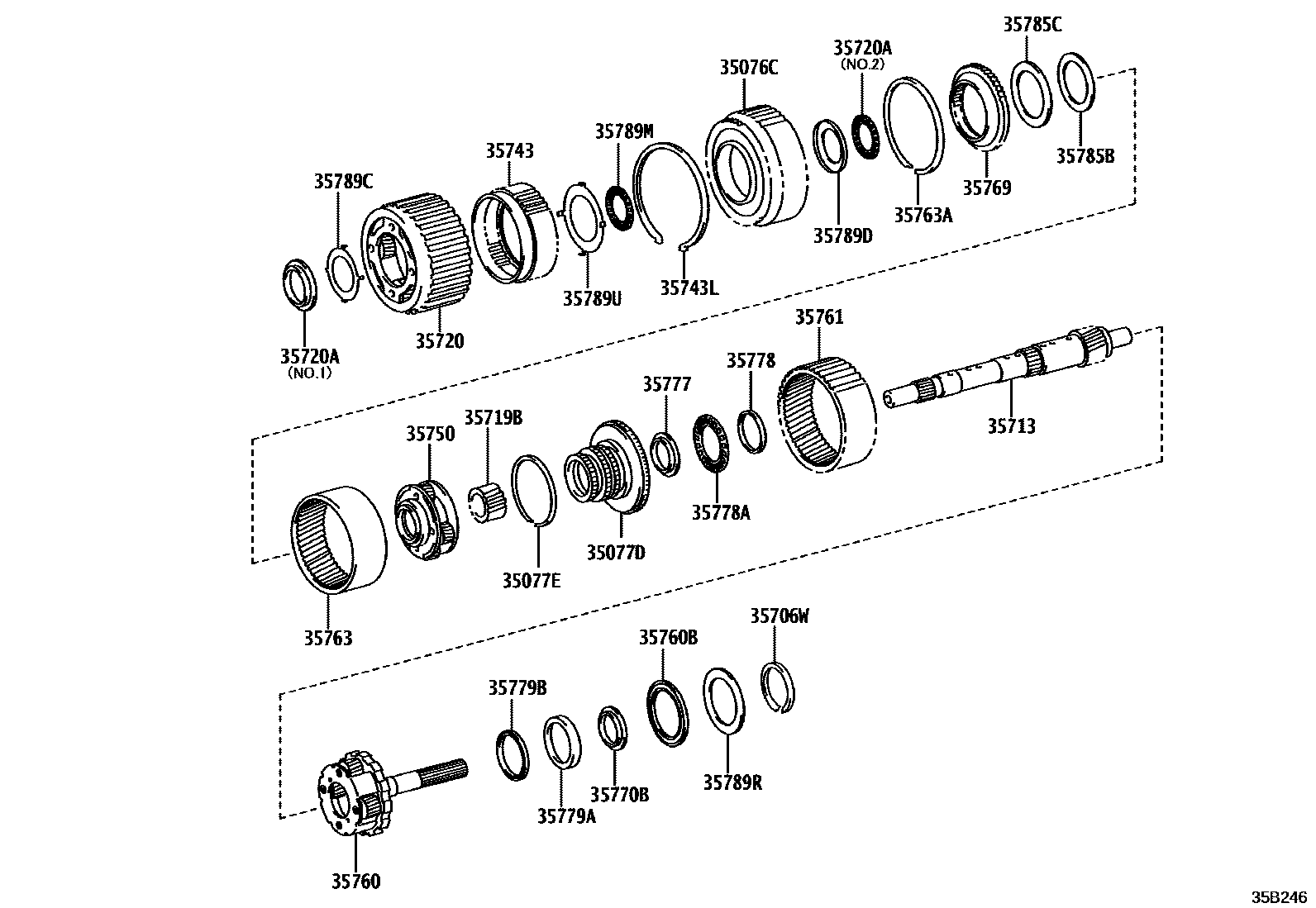

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1AC60E 0002 1AC60F

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-71010iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR

main35077-0K010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

main35077-71010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(J)

main35077-71010iGUN125,126,13#..6FC..SA202208-202401

35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90520-99073iGUN120,126,135..THP..6FC202208-202307

(J)

main90520-T0293iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34012iGUN120,13#,TGN121..THP..6FC202208-202401

35713SHAFT, INTERMEDIATE

main35713-0K010iGUN120,125,135,TGN121..THP..6FC202208-202307

(L)

main35713-0K020iGUN126,136..THP..6FC202208-202307

(L)

main35713-60100iGUN126..THP..6FC202208-202307

(J)

main35713-60100iGUN126,136..6FC..SA202208-202401

main35713-71010iGUN120,125,135,TGN121..THP..6FC202208-202307

(J)

main35713-71010iGUN125,135..6FC..SA202208-202401

35719BGEAR, PLANETARY SUN

main35719-71010iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35720GEAR ASSY, FRONT PLANETARY

main35720-71010iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-37009iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

NO.1:REFER ILLUST.

main90374-63002iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

NO.2:REFER ILLUST.

35743GEAR, FRONT PLANETARY RING

main35743-71010iGUN125,126,13#..6FC..SA202208-202401

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99160iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35750GEAR ASSY, CENTER PLANETARY

main35750-71010iGUN120,125,126,13#..THP..6FC202208-202401

main35750-71020iTGN121..6FC202208-202307

35760GEAR ASSY, REAR PLANETARY

main35760-0K060iGUN125..6FC..L202208-202307

main35760-0K090iGUN120,135..6FC..TH202208-202307

(L)

main35760-0K100iTGN121..6FC202208-202307

main35760-0K120iGUN136..ARL202208-202307

main35760-0K140iGUN126..THP..6FC202208-202307

(L)

main35760-71030iGUN125..6FC..SA202301-202401

main35760-71040iGUN120,135..6FC..TH202208-202401

(J)

main35760-71090iGUN136..6FC..SA202301-202401

main35760-71100iGUN126..THP..6FC202208-202401

(J)

35760BBEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GEAR)

main90374-36001iGUN120,13#,TGN121..THP..6FC202208-202401

35761GEAR, REAR PLANETARY RING

main35761-71010iGUN125,126,13#..6FC..SA202208-202401

35763GEAR, CENTER PLANETARY RING

main35763-71010iGUN125,126,13#..6FC..SA202208-202401

35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)

main90520-99161iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35769FLANGE, PLANETARY RING GEAR, CTR

main35769-71010iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22190iGUN120,13#,TGN121..THP..6FC202208-202401

35777RACE, THRUST BEARING, NO.7

main35777-60010iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35778RACE, THRUST BEARING, NO.8

main35778-60010iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35778ABEARING, THRUST NEEDLE ROLLER

main90374-32010iGUN125,135..6FC..SA202208-202401

main90374-32012iGUN126,136..THP..6FC202208-202401

35779ARACE, THRUST BEARING, NO.9

main35779-60011iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35779BBEARING, THRUST NEEDLE ROLLER

main90374-43007iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35785BRACE, THRUST BEARING, NO.4

main35785-60010iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35785CBEARING, THRUST NEEDLE ROLLER

main90374-55004iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-71030iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-71050iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35789MBEARING, THRUST NEEDLE ROLLER

main90374-63002iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

35789RRACE, THRUST BEARING (FOR REAR OUTPUT SHAFT)

main35789-35060iGUN120,13#,TGN121..THP..6FC202208-202401

T=3.80

main35789-35070iGUN13#..6FC..SA202208-202401

T=3.90

main35789-35080iGUN13#..6FC..SA202208-202401

T=4.00

main35789-35090iGUN120,13#,TGN121..THP..6FC202208-202401

T=4.10

main35789-35100iGUN120,13#,TGN121..THP..6FC202208-202401

T=4.20

main35789-50070iGUN120,13#,TGN121..THP..6FC202208-202401

T=3.85

main35789-50080iGUN120,13#,TGN121..THP..6FC202208-202401

T=3.95

main35789-50090iGUN13#..6FC..SA202208-202401

T=4.05

main35789-50100iGUN13#..6FC..SA202208-202401

T=4.15

main35789-50110iGUN120,13#,TGN121..THP..6FC202208-202401

T=4.25

main35789-50120iGUN120,13#,TGN121..THP..6FC202208-202401

T=4.30

main35789-50130iGUN120,13#,TGN121..THP..6FC202208-202401

T=4.35

35789URACE, THRUST BEARING

main35789-71040iGUN120,125,126,13#,TGN121..THP..6FC202208-202401

30 parts on this diagram · 2 diagrams in section
