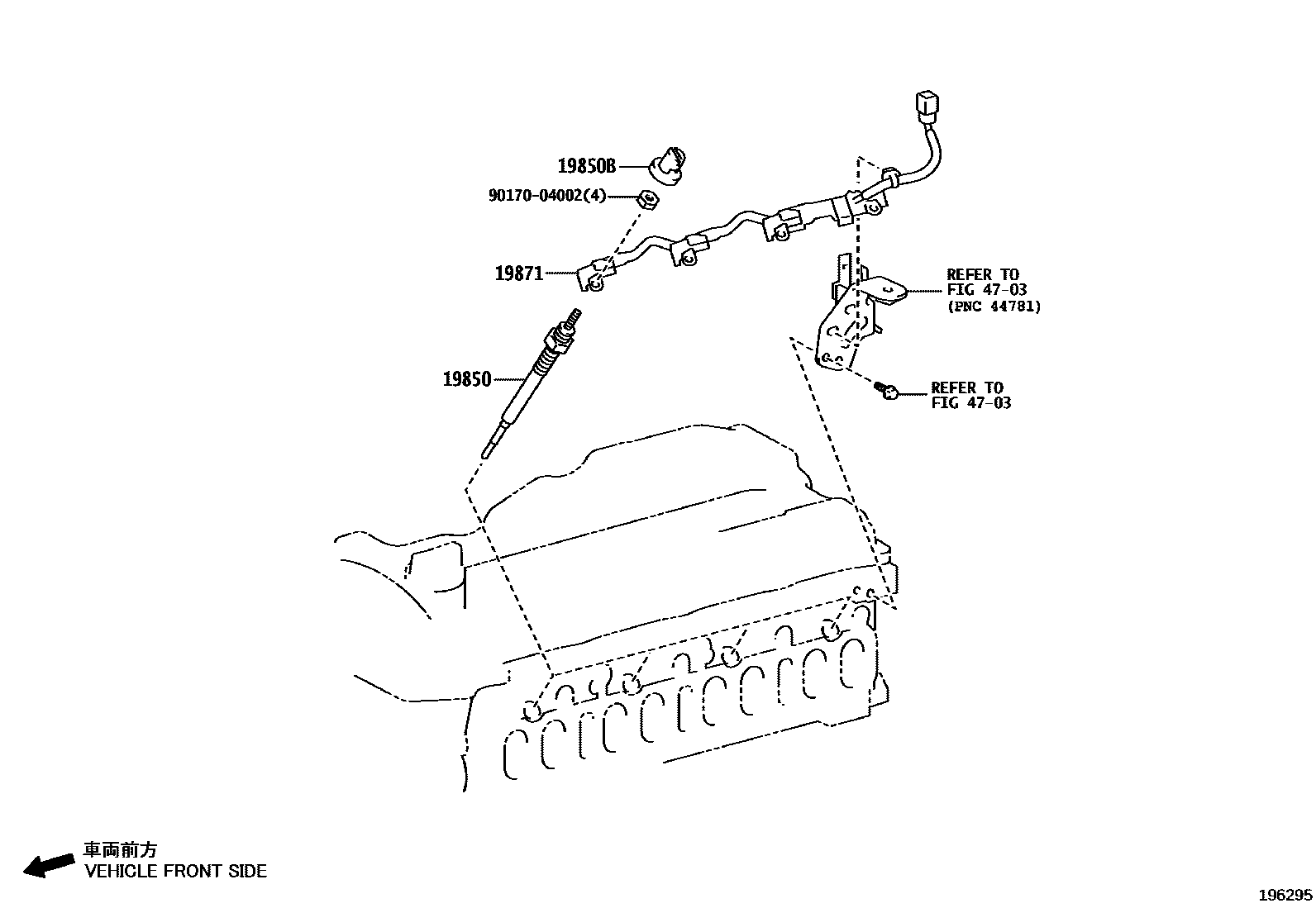

IGNITION COIL & SPARK PLUG / GLOW PLUG
19850PLUG ASSY, GLOW
*BV-GV=12V-7V,GCC SPEC EURO4 2022MY
*BV-GV=12V-7V,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
*BV-GV=12V-7V
*BV-GV=12V-11V
19850BGROMMET, SCREW(FOR GLOW PLUG)
GCC SPEC EURO4 2022MY,(J)
(J)
(L)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
19871CONNECTOR, GLOW PLUG NO.1
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY,JAPAN SOURCED PARTS
4703
9017004002
main90170-04002
5 parts on this diagram · 3 diagrams in section
