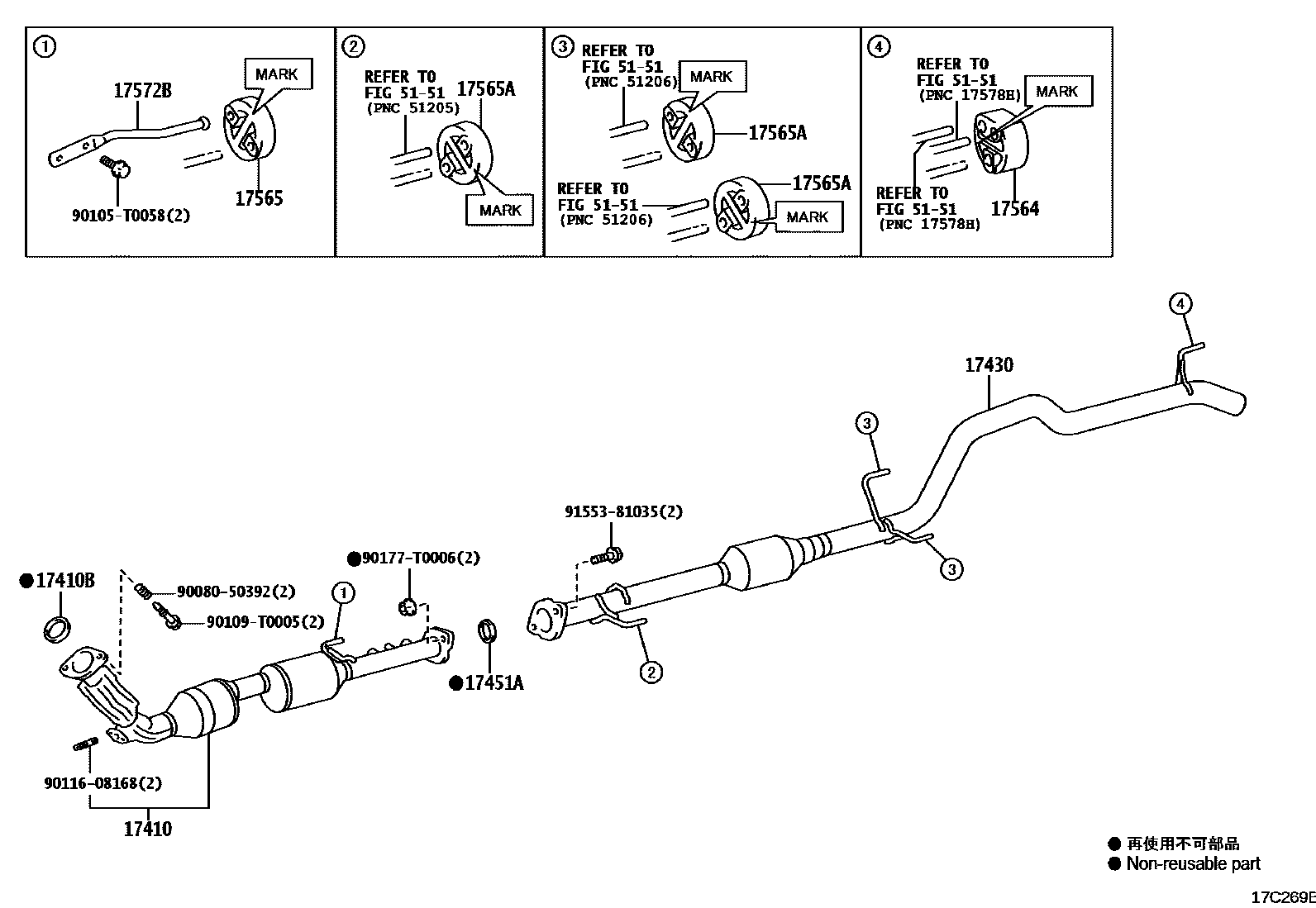

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
sub17401-05111
ECUADOR SPEC
ECUADOR SPEC
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
IRAN SPEC
SYRIA SPEC
AFRICA SPEC
TYPE A:REFER ILLUST.
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPEA:REFER ILLUST.
TYPE A:REFER ILLUST.
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
sub17410-0E141
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main17430-0L070i1GDFTV..GUN126..TH;2GDFTV..GUN125..THP..6F..CBU;1GDFTV,2GDFTV..GUN120,121,122,135..THP..(GCC,GEN,LA,PH,TH)202208-202307
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
main90917-T6002i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN122,125,126,13#,LAN125,TGN120,121,136..SA202208-202403
17564SUPPORT,EXHAUST PIPE, NO.4
main17565-0L100i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN122,125,126,13#,LAN125,TGN120,121,136..SA202208-202403
MARK:17565-0L100
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
MARK:17565-0L090
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK:17565-0L090
EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L090
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),NO MARK
main17565-0P240i2GDFTV..GUN125..6F..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN122..RHD..GEN;1TRFE,2TRFE..TGN11#,12#..THP202208-202307
EXHAUST EMISSION CONTROL-WITHOUT
main17565-0P240i2GDFTV..GUN125..6F..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN122..RHD..GEN;1TRFE,2TRFE..TGN11#,12#..THP202208-202307
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
NO MARK
EXHAUST EMISSION CONTROL-WITHOUT,NO MARK
17565ASUPPORT, EXHAUST PIPE, NO.4
MARK:17565-0L090
NO MARK
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-WITHOUT
main17572-0L030i2GDFTV..GUN125..6F..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN122..RHD..GEN202208-202307
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
5151
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035
17 parts on this diagram · 5 diagrams in section
