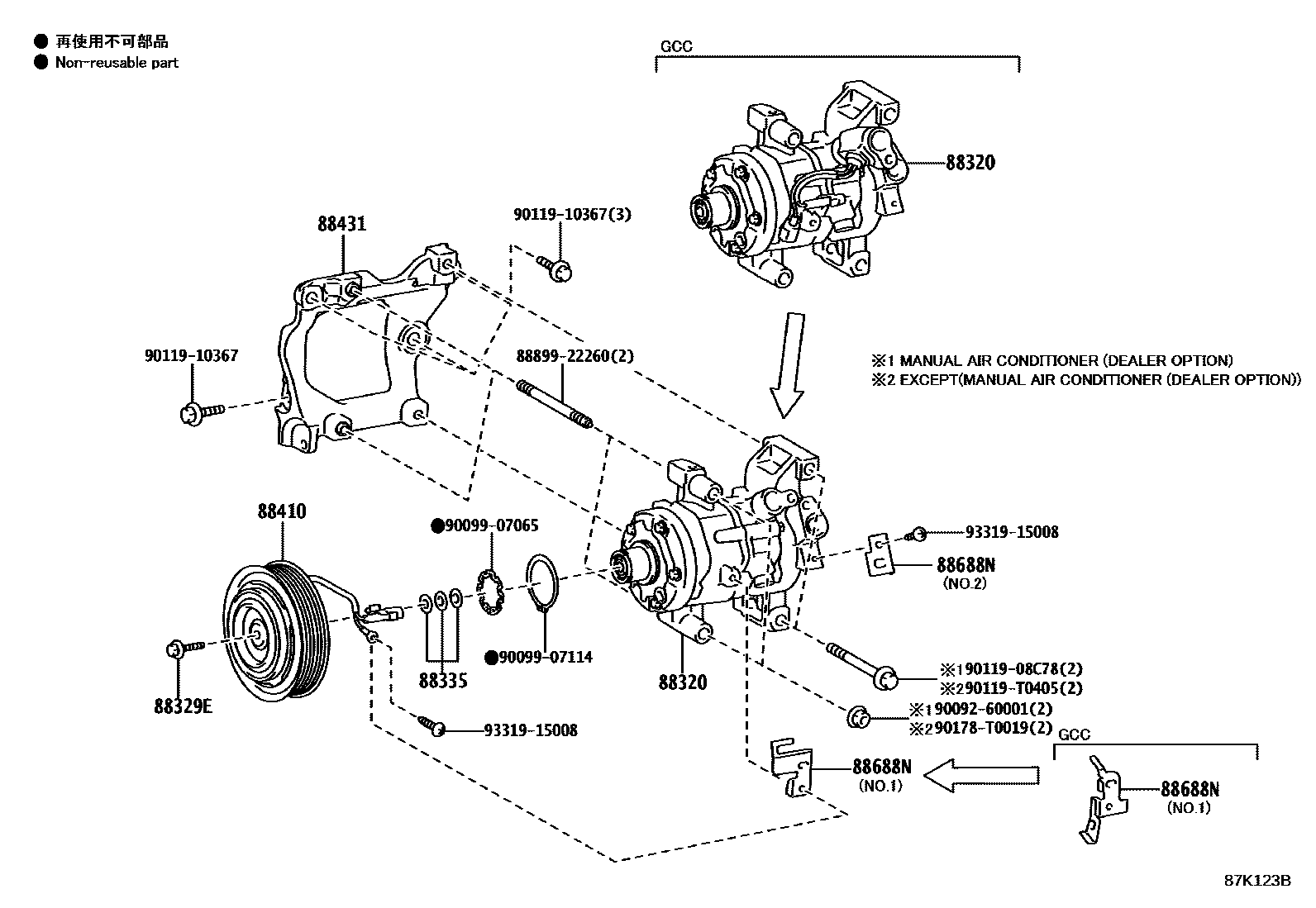

HEATING & AIR CONDITIONING - COMPRESSOR
88320COMPRESSOR ASSY, COOLER
FRONT AIR CONDITIONER-MANUAL
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
88329EBOLT, COMPRESSOR, NO.1
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
FRONT AIR CONDITIONER-MANUAL
main90099-04349iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202108-202207
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main90099-04349iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202108-202207
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main90099-04349iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202108-202207
CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
88335GASKET KIT, OVERHAUL
main88335-14020iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202108-202207
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main88335-14020iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202108-202207
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main88335-14020iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202108-202207
CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main88335-14020iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202108-202301
FRONT AIR CONDITIONER-MANUAL
main88335-14020iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA,TH)202108-202207
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
88410CLUTCH ASSY, MAGNET
CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main88410-0K600iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#..THP..(ARL,GCC,LA,TH)202108-202207
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main88410-0K600iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#..THP..(ARL,GCC,LA,TH)202108-202207
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main88410-0K600iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#..THP..(ARL,GCC,LA,TH)202108-202207
FRONT AIR CONDITIONER-MANUAL
main88410-0K600iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#..THP..(ARL,GCC,LA,TH)202108-202207
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
88431BRACKET, COMPRESSOR MOUNTING, NO.1
main88431-0K140iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#..THP..(ARL,GCC,LA,TH)202108-202207
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
FRONT AIR CONDITIONER-MANUAL
main88431-0K160iGUN125,135..L..KEN;GUN122,125..LHD..L..SA;GUN125,126,13#..(H,S)..(KEN,SA)202109-202303
FRONT AIR CONDITIONER-MANUAL
88688NBRACKET, COOLER
NO.1
main88849-0K010iGUN122..PH;GUN122..S..GEN;GUN122..RHD..THP;GUN125..THP..(ARL,GEN,IDN,LA,TH);GUN112,120,121,126,13#..THP..(ARL,LA,TH)202108-202207
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.1
main88849-0K010iGUN122..PH;GUN122..S..GEN;GUN122..RHD..THP;GUN125..THP..(ARL,GEN,IDN,LA,TH);GUN112,120,121,126,13#..THP..(ARL,LA,TH)202108-202207
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.1
main88849-0K010iGUN122..PH;GUN122..S..GEN;GUN122..RHD..THP;GUN125..THP..(ARL,GEN,IDN,LA,TH);GUN112,120,121,126,13#..THP..(ARL,LA,TH)202108-202207
CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.1
main88849-0K010iGUN122..PH;GUN122..S..GEN;GUN122..RHD..THP;GUN125..THP..(ARL,GEN,IDN,LA,TH);GUN112,120,121,126,13#..THP..(ARL,LA,TH)202108-202207
FRONT AIR CONDITIONER-MANUAL,NO.1
main88849-0K020iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#..THP..(ARL,GCC,LA,TH)202108-202207
CAMBODIA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.2
main88849-0K020iGUN125..THP;GUN122..GCC,PH;GUN122..S..GEN;GUN122,126..RHD..THP;GUN112,120,121,13#..THP..(ARL,GCC,LA,TH)202108-202207
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.2
NO.2
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.2
BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.2
FRONT AIR CONDITIONER-MANUAL,NO.2
NO.1
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.1
8889922260COVER, EVAPORATOR
main88899-22260
9009260001
main90092-60001
9009907065
main90099-07065
9009907114
main90099-07114
9011908C78
main90119-08C78
9011910367
main90119-10367
90119T0405
main90119-T0405
90178T0019
main90178-T0019
9331915008
main93319-15008
15 parts on this diagram · 4 diagrams in section
