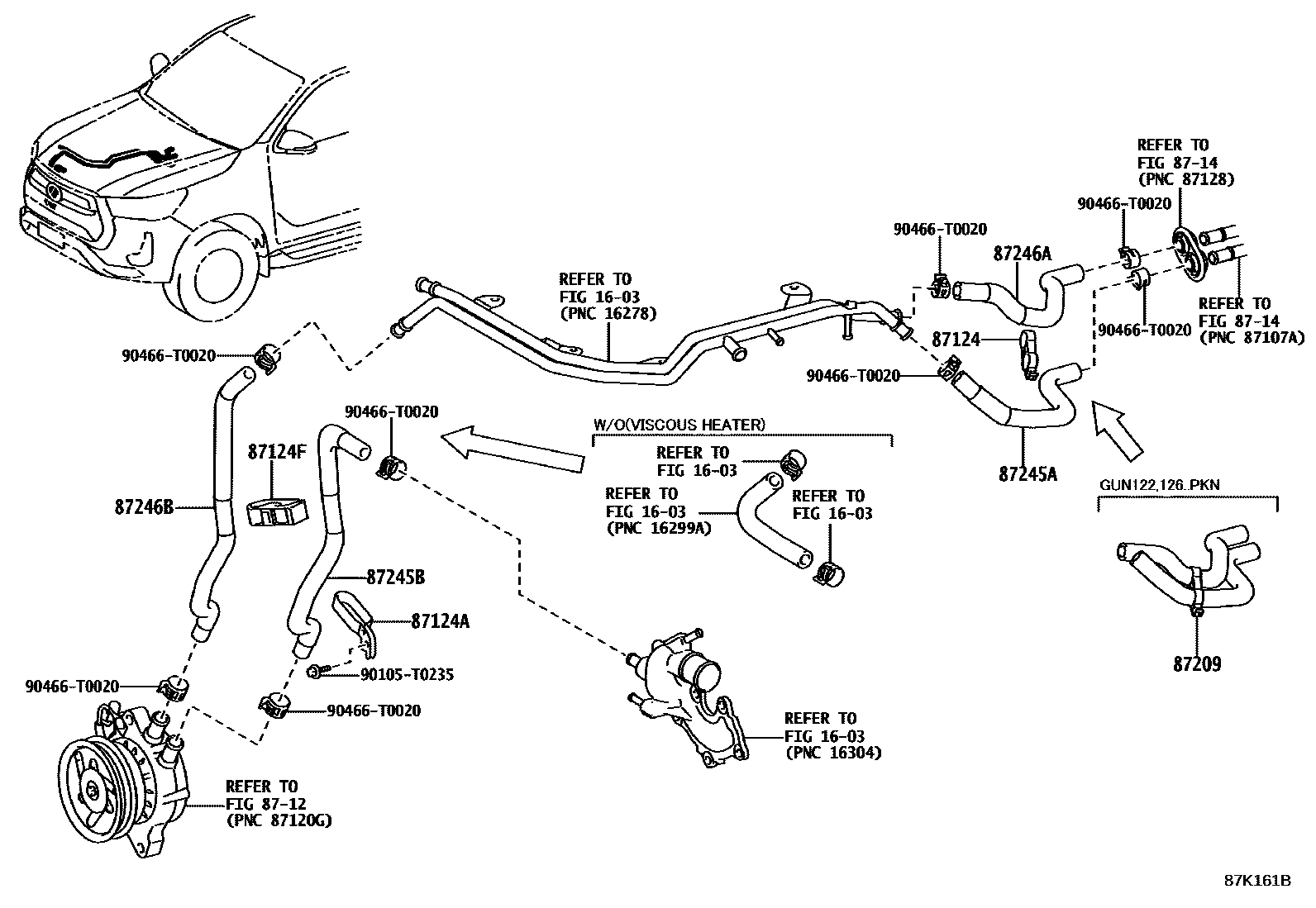

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603

8712

87124CLAMP, HEATER

main87124-0K150iGUN125,135..(L,S)..TH202108-202207

FRONT AIR CONDITIONER-MANUAL

main87124-0K150iGUN122,125,126,13#..KEN,SA202108-202303

main87124-42030iLAN125202109-202301

main88718-6B070iGUN125,126,135..AGTP202111-202210

87124ACLAMP, HEATER

main87124-0K060iLAN125202109-202301

main87124-0K200iGUN125..6FC..GEN202108-202207

87124FCLAMP, HEATER HOSE, NO.1

main87124-60110iGUN125..6FC..GEN202108-202207

8714

87209HOSE SUB-ASSY, WATER

main87209-0K632iGUN122,126..PKN202202-202301

87245AHOSE, HEATER WATER, INLET A

main87245-0KB20iTGN121..SA202108-202301

main87245-0KB40iTGN121..ARL202108-202301

main87245-0KC20iTGN126,136..AGTP202111-202210

main87245-0KD30iTGN121..PKN202202-202301

main87245-0KE02iGUN125,135..(L,S)..TH202108-202207

FRONT AIR CONDITIONER-MANUAL

main87245-0KE02iGUN122,125,126,13#..KEN,SA202108-202303

main87245-0KK30iLAN125202109-202301

main87245-71010iGUN125,126,135..AGTP202111-202210

87245BHOSE, HEATER WATER, INLET B

main87245-0KE80iGUN125..6FC..GEN202108-202207

main87245-0KF30iTGN120,121,136..SA202108-202301

main87245-0KF70iTGN121..PKN202202-202301

main87245-0KG10iTGN126,136..AGTP202111-202210

87246AHOSE, HEATER WATER, OUTLET A

main87245-0K850iTGN121..ARL202108-202301

main87245-0KB30iTGN11#,12#..LHD..THP202108-202301

main87245-0KC30iTGN126,136..AGTP202111-202210

main87245-0KD20iTGN121..PKN202202-202301

main87245-0KE11iGUN135..H;GUN126..THP..(H,S);GUN11#,122,125,13#..THP..(ARL,GCC,GEN,LA)202108-202207

FRONT AIR CONDITIONER-MANUAL

main87245-0KE11iGUN122,125,126,13#..KEN,SA202108-202303

main87245-0KK40iLAN125202109-202301

main87245-71020iGUN125,126,135..AGTP202111-202210

87246BHOSE, HEATER WATER, OUTLET B

main87245-0KE90iGUN125..6FC..GEN202108-202207

main87245-0KF20iTGN11#,12#..THP..(ARL,GCC,GEN,LA)202108-202301

main87245-0KF60iTGN121..PKN202202-202301

main87245-0KG00iTGN126,136..AGTP202111-202210

90105T0235

main90105-T0235

90466T0020

main90466-T0020

13 parts on this diagram · 4 diagrams in section
